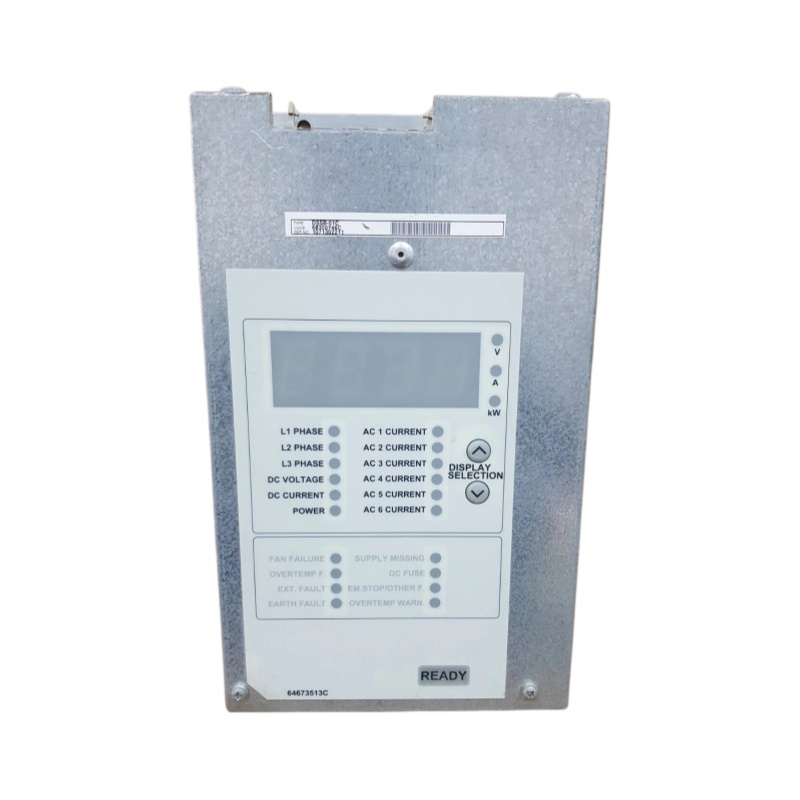

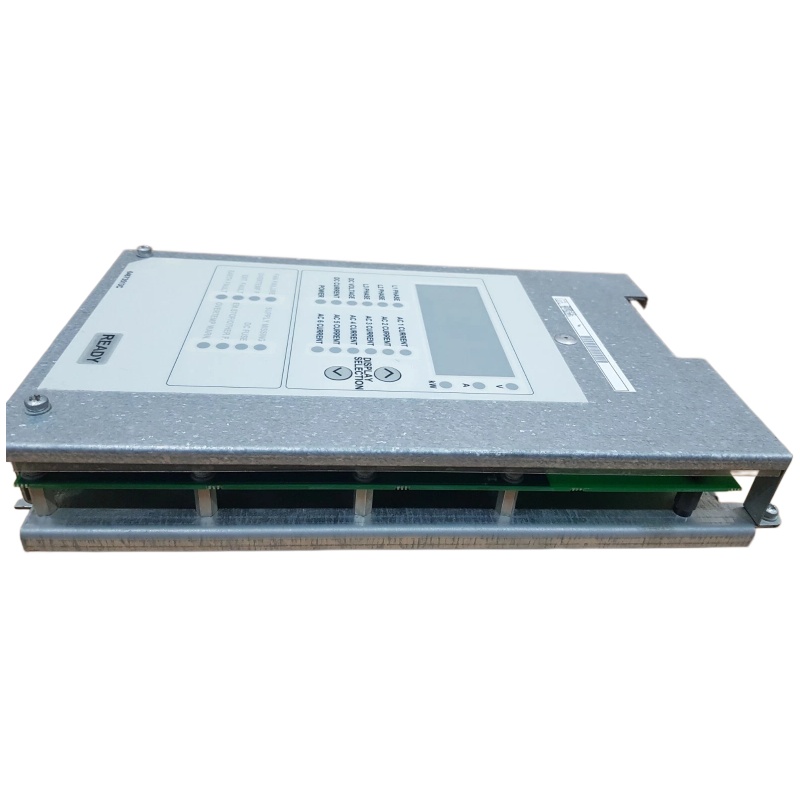

ABB DSSB 01C

1. Product Overview

2. Main Parameters

Ambient Temperature

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C

Mechanical Characteristics

• Dimensions: 110mm×90mm×60mm (alternative data: 8.0 inch×12.0 inch×2.0 inch)
• Weight: 1.8kg (alternative data: approximately 3 pounds 10.1 ounces / about 1.6kg)

3. Product Features

• High-Performance Rectification Control: It realizes rectifier stage control, converting AC input power into DC power and supplying stable voltage for subsequent circuit systems.
• High Reliability: Adopts industrial-grade electronic components to support long-term stable and continuous operation of equipment.
• Diversified Communication Interfaces: Compatible with multiple mainstream communication protocols including Profibus and Modbus.
• Dual Power Redundant Input: Equipped with dual power redundant input design, effectively improving the overall reliability of the system.
• Comprehensive Protection Function: Built-in high-voltage isolation and lightning protection modules to resist complex electrical interference.
• Modular Design: The integrated modular structure simplifies on-site installation, daily inspection and later maintenance work.

4. Structure and Composition

Supported Communication Protocols

• Profibus
• Modbus RTU
• Ethernet and Serial Communication

5. Application Fields

• Industrial Control System: Acts as a key core component of industrial automation control platforms
• Mining Industry: Maintains stable operating performance in harsh mining working environments
• Petroleum and Natural Gas Industry: Adaptable to high-intensity and harsh industrial production conditions
• Renewable Energy Industry: Applied to various power conversion and energy regulation systems
• ACS800 Drive System: Core control part of medium-voltage AC drive equipment

Installation Guidelines

• Installation Mode: Supports panel mounting and cabinet mounting
• Environmental Requirements: Ensure the operating ambient temperature is kept within the range of -10°C to +60°C
• Wiring Specifications: Read the official operation instructions carefully before use, and complete wiring and commissioning in strict accordance with standard procedures
• Environmental Protection: Take effective protective measures to avoid equipment damage caused by humid air and dust accumulation

Maintenance Guidelines

• Regular Inspection: Conduct periodic status checks during equipment installation and operation to eliminate potential faults in advance
• Fault Handling: Respond to abnormal conditions timely and troubleshoot faults immediately once found
• Warranty Service: The product is equipped with a one-year standard warranty, and extended warranty services are available on demand
• Return Policy: Returns are acceptable on the premise that the product is unused, unopened, and complete with original packaging and all accessories
