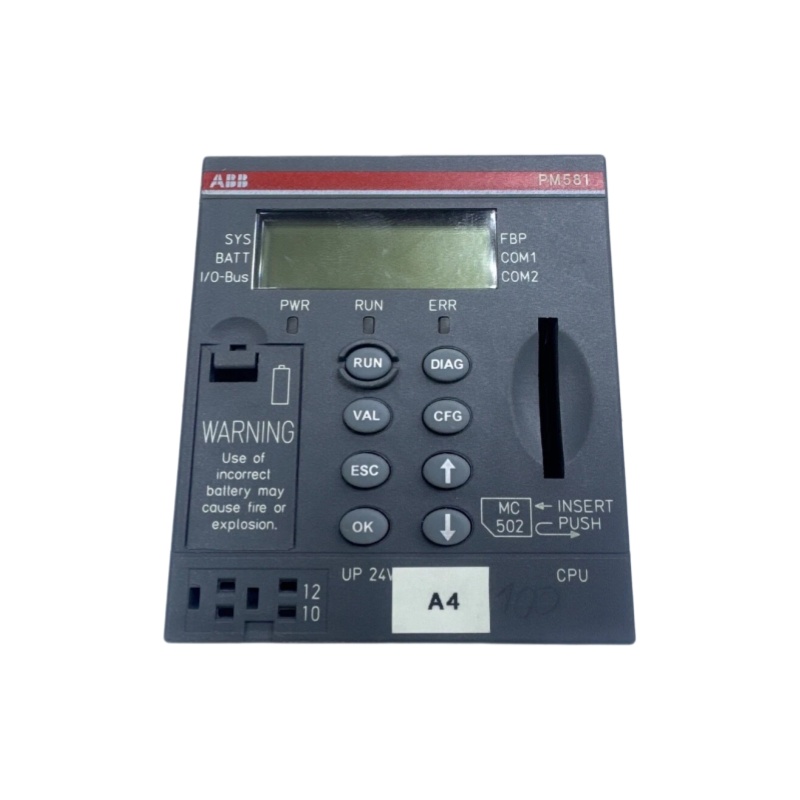

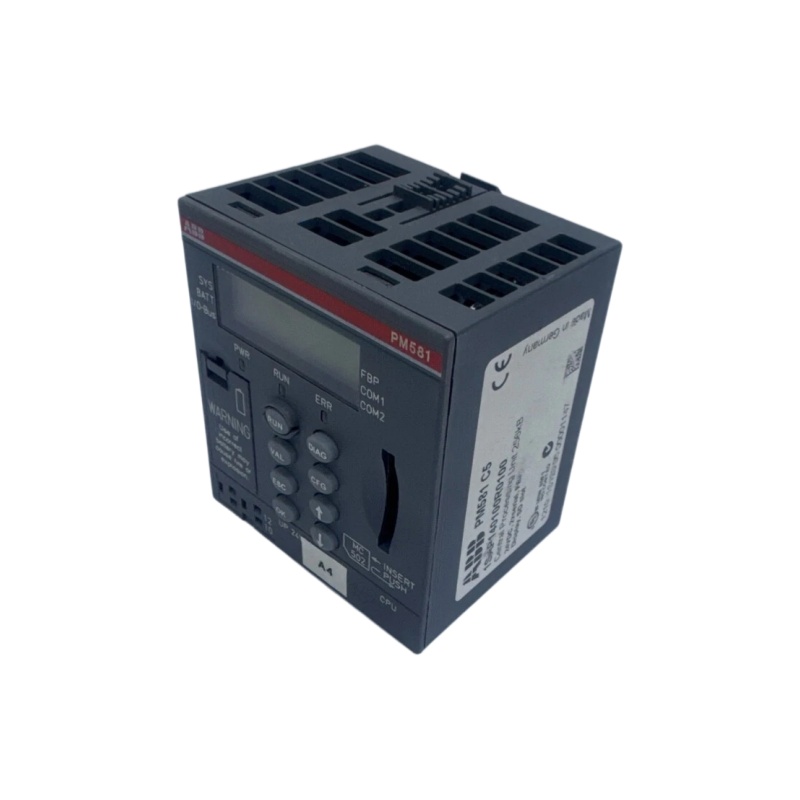

ABB PM581 1SAP140100R100 Central Processing Unit
ABB PM581 1SAP140100R100
1. Product Overview
The PM581 is a Central Processing Unit (CPU) module for the ABB AC500 series Programmable Logic Controller (PLC) and a core component of the ABB Advant Open Control System (OCS) product line. Within the AC500 system, this CPU module, together with models such as PM571 and PM591, forms a complete CPU product portfolio covering multiple performance grades to meet diverse industrial control requirements.
2. Technical Specifications
|
Parameter Item
|
Specification Details
|
|---|---|
|
Model
|
PM581 (including multiple variants such as PM581-ETH, PM581-ARCNET, etc.)
|
|
Memory
|
256KB or 8192KB SDRAM
|
|
Power Supply Voltage
|
24VDC
|
|
Integrated Interfaces
|
2 × RS232/485 serial interfaces, FBP interface
|
|
Expansion Interface
|
SD card slot
|
|
Display & Operation
|
LCD display, operation keys
|
|
Base Unit Options
|
CPU base unit with optional integrated Ethernet or ARCNET network interface
|
3. Product Features
High Reliability Design: The Advant OCS system design ensures comprehensive process safety. Key components adopt redundant architecture, enabling continuous automatic system monitoring and real-time fault information reporting to minimize downtime and operational risks.
High Openness: Built on international standard technologies, the module supports TCP/IP network communication, SQL database access, and X-Window system, achieving seamless connection and data interaction with various third-party industrial systems and equipment.
User-Friendly Interface: Adopts unified graphical interface and configuration mode for system operation and programming, which effectively reduces user learning and equipment training costs while improving operational efficiency.
Scalable Functions: The system can be flexibly expanded from a single standalone unit to full-factory integrated control. Subsystem expansion can be completed online without modifying or suspending existing equipment operation.
Flexible Programming: Supports 5 mainstream industrial programming languages, and all programming and configuration work can be implemented through a unified dedicated programming software, bringing convenient and efficient development experience.
Excellent Compatibility: Retains the classic CS31 communication interface, realizing good compatibility and seamless docking with ABB AC31 series PLC systems, facilitating equipment upgrade and old system reconstruction.
4. Structure and Composition
The typical structural components of the PM581 CPU module in the Advant OCS/AC500 system are as follows:
CPU Module: PM581 central processing unit, equipped with LCD display, physical operation keys, SD card expansion port and multi-channel serial communication ports, serving as the core control unit of the system.
CPU Base Unit: Optional configurations with integrated Ethernet (ETH) or ARCNET network interfaces to adapt to different network communication scenarios.
Communication Module: Supports expansion of up to 4 standard bus protocol interfaces, covering mainstream industrial bus standards such as Profibus, DeviceNet, and CANopen.
I/O Modules: Includes multiple matching modules such as DI524 digital input module, AI523 analog input module, and AX522 analog I/O module to meet diverse signal acquisition and control output demands.
Power Supply Module: Matched with PS501 and other dedicated power supply units to provide stable and reliable power support for the system.
5. Application Fields
Energy Industry: Wind power generation, solar energy tracking and control systems
Large-Scale Equipment: Large marine vessels, high-voltage circuit breaker manufacturing and control
Infrastructure: Tunnel automatic control, urban traffic intelligent control systems
Manufacturing Industry: Packaging machinery, printing machinery automated production control
Chemical & Water Treatment: Sewage treatment plant operation monitoring, lime kiln production process control
Papermaking Industry: Slurry preparation, paper forming and manufacturing process control
Petroleum, Chemical, Power & Metallurgy: The Advant OCS system equipped with PM581 CPU has been widely applied in these heavy industrial fields for stable process control.
6. Installation and Maintenance (Based on General Advant OCS System Specifications)
6.1 Installation Precautions
Key system components adopt redundant structural design to ensure long-term safe and stable operation of the entire control system. All system card modules support hot-swappable operation, allowing single-module replacement without system shutdown. The PM581 CPU module can be directly plugged into the matched CPU base unit for quick installation and commissioning. The system Data Communication Network (DCN) adopts a dual-ring redundant architecture, effectively improving network communication stability and anti-interference capability.
6.2 Maintenance Features
The system supports real-time automatic full-state monitoring and instant fault information feedback, enabling maintenance personnel to quickly locate and solve problems. It provides intuitive CPU load distribution display and system automatic diagnosis status display, which facilitates real-time grasp of system operating conditions. Users can modify and update control programs online through the operation station without affecting the normal operation of on-site production and control processes.
7. Summary
|
Item
|
Description
|
|---|---|
|
Product Positioning
|
Core Central Processing Unit (CPU) module of ABB AC500 series PLC
|
|
Affiliated System
|
Advant Open Control System (Advant OCS)
|
|
Core Advantages
|
High reliability, high system openness, flexible expandability, multi-programming language support
|
|
Main Applications
|
Industrial automation, process control, energy, chemical industry, water treatment, metallurgy and other industrial fields
|
————————————————————————————————————-
