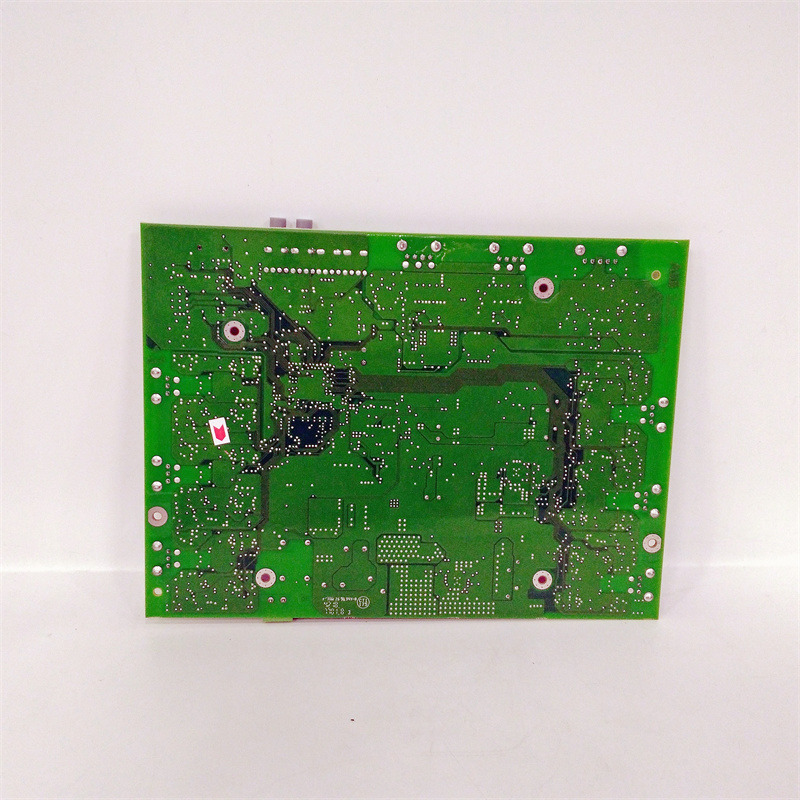

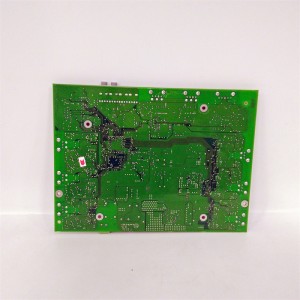

ABB GCC960C103

I. Overview

The ABB GCC960C103 is a high-performance industrial automation control module developed by ABB, belonging to its industrial automation and control systems series. This module is primarily designed for servo control, data acquisition, and communication interface functions, aiming to enhance the efficiency and reliability of industrial systems. It can operate as a standalone control unit or be integrated into the ABB 800xA DCS system to handle more complex automation tasks.

II. Specifications

• Model: GCC960C103
• Brand: ABB
• Type: Servo controller module, PLC module, power supply module
• Input Voltage: 100-240V AC (some versions support 80-300V AC)
• Output Voltage: 24V DC (some versions support -42V to -58V DC)
• Output Current: 40A (some versions support 120A)
• Frequency: 50/60 Hz
• Operating Temperature: -25°C to +70°C (some versions support -40°C to +85°C)
• Protection Rating: IP20 (some versions support IP45)
• Weight: Approx. 1.5 kg (some versions are heavier)
• Dimensions: 160mm x 120mm x 80mm (some versions are larger)
• Communication Interfaces: Ethernet, Modbus, PROFINET, RS-232/485, etc.
• Control Precision: High-precision position, speed, and torque control
• Efficiency: >92% (some versions >98%)
• Power Density: >20 kW/L (some versions)

III. Key Features

• High-Precision Control: Delivers accurate position, speed, and torque control, ideal for demanding industrial applications.
• High Reliability: Utilizes premium components and redundant design for stable operation in harsh industrial environments.
• Multi-Function Integration: Supports various communication protocols (e.g., Ethernet, Modbus, PROFINET) for seamless integration with other devices and systems.
• Energy Efficiency: Employs advanced PWM and DSP control technologies for high performance and low power consumption.
• Easy Installation & Maintenance: Supports DIN rail mounting for quick setup and servicing.
• Strong Anti-Interference: Uses contactless electronic storage to minimize electromagnetic interference (EMI) and enhance system reliability.
• Self-Diagnosis: Features fault self-diagnosis for rapid troubleshooting.
• Open Architecture: Compatible with open-system frameworks, enabling integration with upper-level computer management systems for data exchange.

IV. Structure & Components

The ABB GCC960C103 consists of the following key components:

1. Main Control Unit: Processes control logic, executes commands, and communicates with external devices.
2. Power Supply Module: Converts AC input to stable DC output for module operation.
3. Communication Interface: Supports Ethernet, Modbus, PROFINET, etc., for data exchange.
4. Digital I/O Module: Handles external signal input and control signal output.
5. Cooling System: Some models include fans or heat sinks for temperature regulation under high loads.
6. Enclosure & Protection: Rated IP20 or IP45 for adaptability in different environments.

V. Applications

The ABB GCC960C103 is widely used in:

• Industrial Automation: Machine tools, printing machines, packaging equipment, etc.
• Robotics: Precision control for industrial robot joints and actuators.
• Semiconductor Manufacturing: Ensures accuracy in chip production processes.
• Energy Management: Voltage regulation, frequency control, and load management in power systems.
• Building Automation: Controls lighting, HVAC, and elevators in smart buildings.
• Metallurgy & Mining: Speed regulation for hoists and rolling mills.
• Transportation: Motor control in electric vehicles and rail transit.

VI. Installation & Maintenance

Installation Guidelines

• Supports DIN rail mounting for secure placement in control cabinets.
• Verify power input, communication interfaces, and control signal connections before installation.
• Ensure adequate ventilation space to prevent overheating.

Maintenance Tips

• Regularly inspect connections and signal integrity.
• Monitor cooling systems and replace fans or heat sinks if necessary.
• Use ABB diagnostic tools for fault detection and troubleshooting.
• Always refer to the ABB product manual for safe and correct procedures.

Common Issues & Solutions

• Power Failure: Check input voltage range; replace power module if needed.
• Communication Errors: Inspect interface connections; try alternative cables.
• Overheating: Ensure cooling systems are functional; enhance heat dissipation if required.
• Fault Diagnosis: Use ABB diagnostic software for detailed error analysis.

———————————————————————————————————————————
