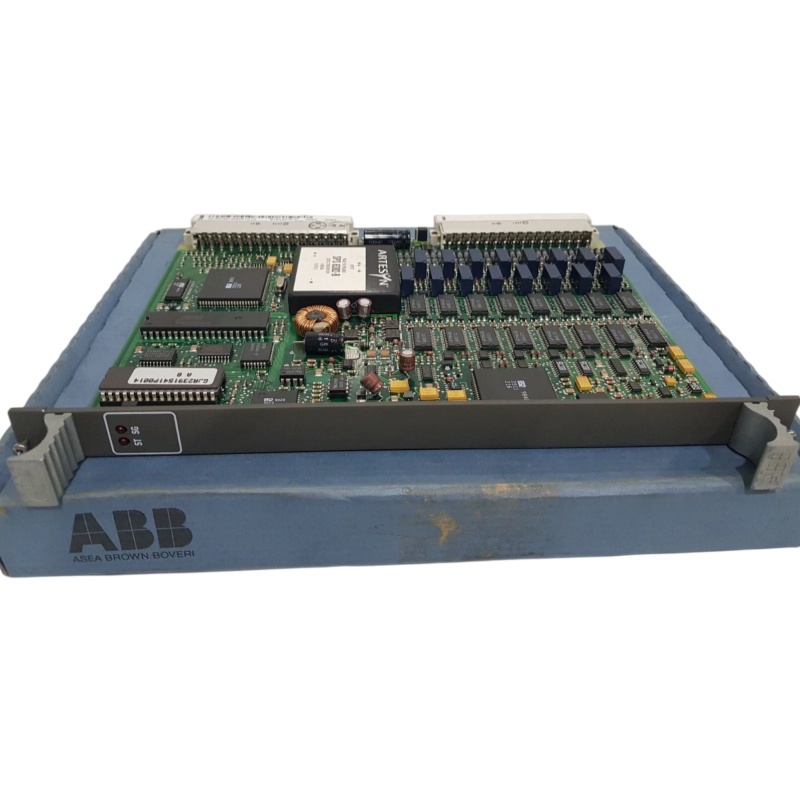

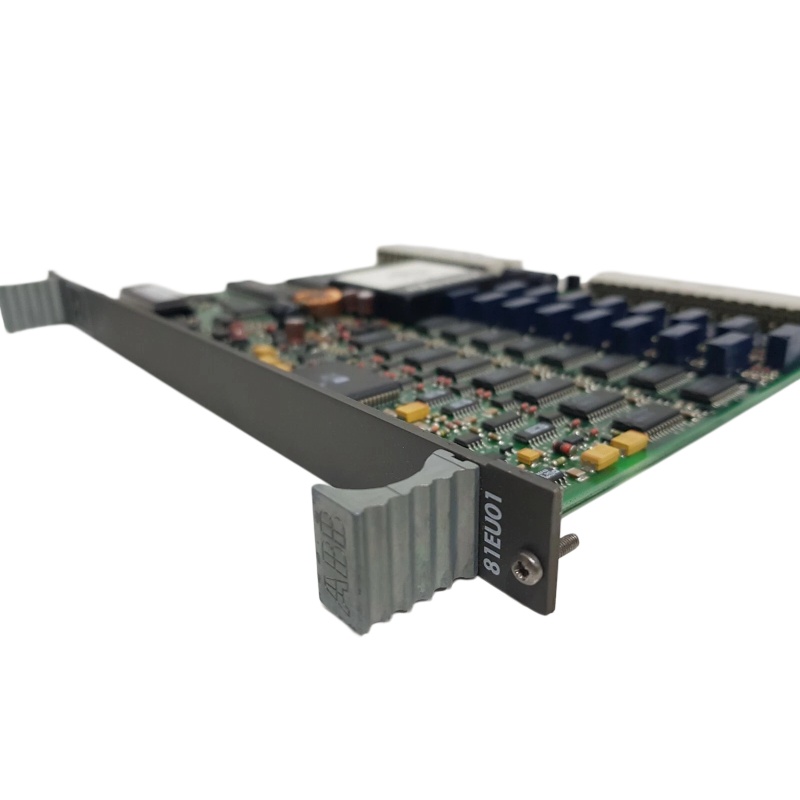

ABB GJR2391500R1210 81EU01E-E Input Module
ABB GJR2391500R1210
1. Product Overview
2. Technical Parameters
|
Parameter
|
Specification
|
|---|---|
|
Rated Current
|
10A
|
|
Rated Voltage
|
230V AC
|
|
Input Voltage
|
24V DC
|
|
Output Voltage
|
24V DC / 0-10V DC
|
|
Output Current
|
0-20mA / Max 2A
|
|
Accuracy
|
0.2%
|
|
Response Time
|
250ms
|
|
Operating Temperature
|
-40 – 70°C
|
|
Storage Temperature
|
-40 – 85°C
|
|
Humidity
|
0-95% RH
|
|
Protection Level
|
IP20 / IP67
|
|
Dimensions
|
100mm × 50mm × 20mm
|
|
Weight
|
100-120g
|
3. Product Features
- 16 universal input channels: Supports analog, digital and frequency signal input
- High-precision measurement: Input accuracy up to 0.2%
- High reliability: Suitable for harsh industrial environments and stable long-term operation
- Easy configuration: Easy programming through configuration tables, supporting parameterized settings
- Versatility: Supports multiple input types and signal processing
- Data storage: Programmed values are stored in EEPROM, no loss when power is off
- Compliance with standards: IEC 60947-1 and IEC 60947-5-1 certification
- Compact design: Saves installation space
4. Structure and Composition
- 5 functional units: Each unit can be used for any type of input mode
- Flexible combination: Functional units can be combined and configured arbitrarily
-
Signal processing capability:
Communication interface: Equipped with multiple communication interfaces to support data exchange with other devices
- Supports multiple signal inputs such as voltage, current, and resistance
- Up to 4 limit values can be assigned to each analog signal
- Supports up to 5 independent calibration or filtering calculations
- Connection method: Screw terminal wiring
5. Application Fields
- Process control: Monitoring and control of parameters such as temperature, pressure, and flow
- Equipment condition monitoring: Operation status monitoring and fault diagnosis
- Safety monitoring: Safety system monitoring and alarm
- Motor control: Three-phase motor start/stop control
- Lighting control: Industrial lighting system control
- Heating control: Temperature control of heating equipment
- Industrial machinery monitoring: Data collection and alarm signal processing
- Applicable industries: Iron and steel, electric power, metallurgy, chemical industry, petrochemical industry, papermaking, mining, nuclear power and other industries
6. Installation and Maintenance
Installation Requirements
- Installation method: DIN rail mounting
- Wiring method: Screw terminal connection
- Environmental requirements: Operating temperature -40-70°C, humidity 0-95% RH
————————————————————————————————————-
