1. Product Overview

2. Main Parameters

3. Product Features

• Dual-mode Regulation: Supports automatic and manual regulation modes, realized by mode switch button.
• Parallel Operation Capability: Up to 3 regulators can operate in parallel, adopting the principle of minimum circulating current control.
• RS-488 Communication: Supports serial bus communication, enabling remote monitoring and data processing.
• Multiple Protection Functions: Equipped with voltage regulation function blocking, automatic/manual mode output protection, etc.
• Self-test Alarm Function: Automatically alarms when the secondary voltage deviates from the rated value by more than 25% or the auxiliary voltage is interrupted.
• Adjustable Delay: T1 and T2 delays can be set to fixed value or inverse time characteristic to adapt to different application scenarios.

4. Structure and Composition

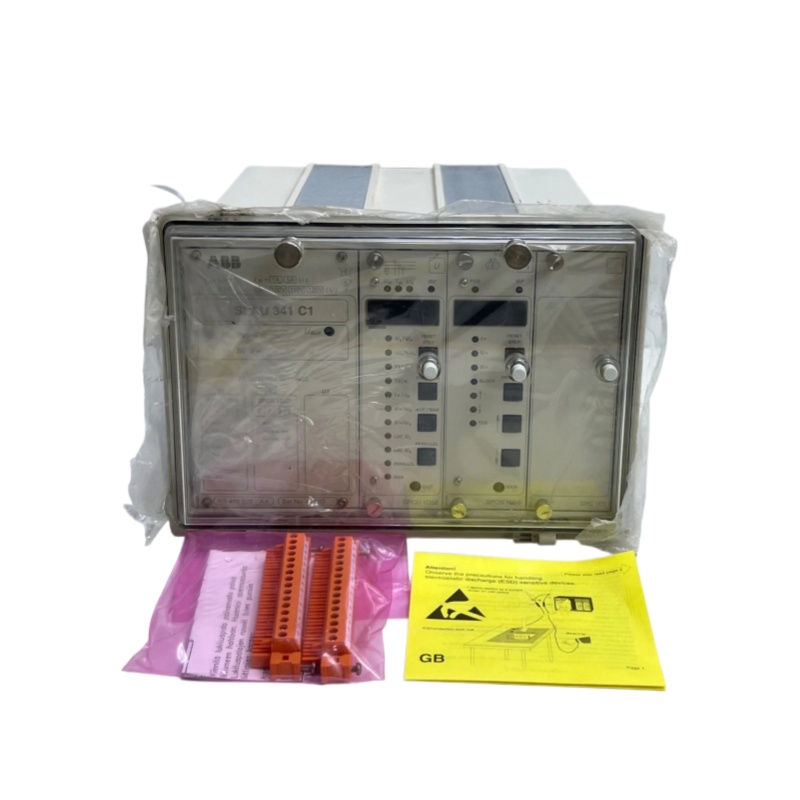

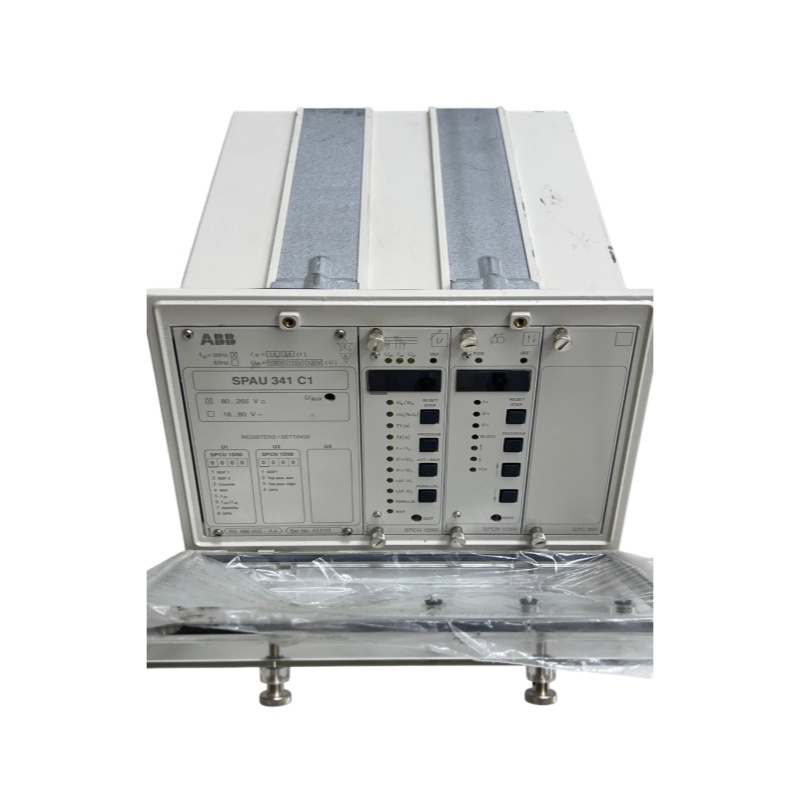

4.1 Front Panel Layout

• Top: ABB brand logo and model name.
• Left Area: Power parameter setting area, including adjustments for frequency, rated current, rated voltage, etc.
• Middle Area: Three registers (U1, U2, U3) for storing configuration parameters.
• Right Area: Operation control area
  • Voltage Regulation Area: Includes buttons such as Ug/Un, ΔU, T1/T2 time setting, etc.
  • Current Regulation Area: Includes functions such as I>, U<, BLOCK, TCO, etc.
  • Mode Switch: Buttons such as RESET STEP, PROGRAM, AUT/MAN, PARALLEL, etc.

4.2 Core Modules

• Power Supply Module: Two specifications available: SPGU 240 A1 or SPGU 48 B2.
• Regulation Module: Responsible for voltage comparison and regulation calculation.
• I/O Module: Input and output interface processing.
• Motherboard: Core control unit.
• Bus Connection Module: SPA-ZC 100 for serial communication.

5. Application Fields

• Distribution Substations: Adjust the voltage of on-load tap changers of power transformers.
• Multi-transformer Parallel Operation Systems: Supports parallel operation of two or three transformers, and three regulation principles can be selected: voltage following, negative reactance or circulating current.
• Industrial Power Systems: Various industrial power distribution scenarios for maintaining voltage stability.
• Control Systems Requiring Remote Communication: Realize centralized management and remote monitoring through RS-488.

6. Installation and Maintenance

6.1 Installation Guidelines

• Installation Environment: Suitable for installation in control cabinets with compact design.

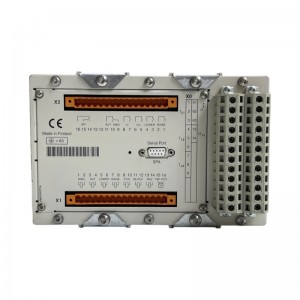

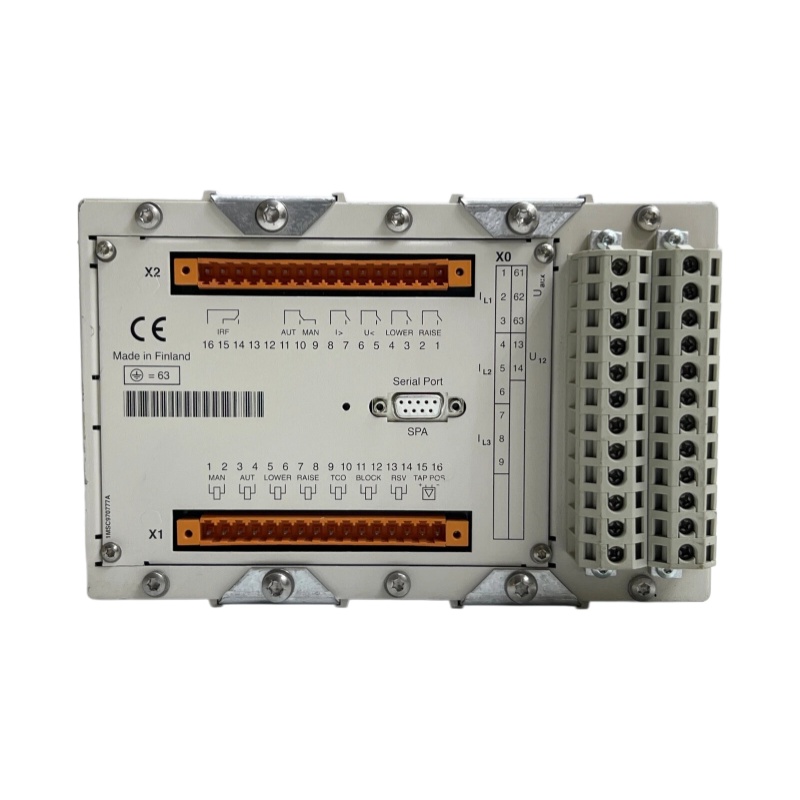

• Wiring Requirements:
  • Measurement phase voltage U12 connection.
  • Rise and fall output contact connection.
  • If line voltage compensation, minimum circulating current or overcurrent blocking function is required, measure one phase current and connect it to the IL1 terminal.
  • Select functions through software switches SGF2/6 and SGF2/7.
  • Auxiliary Power Supply Connection: The ground of the power module is connected to the regulator shell.
