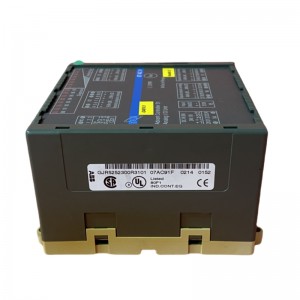

ABB GJR5252300R3101 07AC91F

1. Overview

The ABB GJR5252300R3101 07AC91F is an analog input/output module from the ABB Advant series, designed for industrial automation systems. It enables the acquisition and control of analog signals, supporting multiple communication interfaces. With high reliability, performance, and flexibility, it is suitable for various industrial automation applications, including process control, robotics, and building automation.

2. Specifications

• Input Voltage: 24 V DC
• Output Voltage: 0–10 VDC
• Input Channels: 8
• Output Channels: 8
• Communication Interfaces: Modbus, Ethernet, RS-232/485
• Operating Temperature Range: -20°C to +70°C (some models: -10°C to 55°C)
• Processing Speed: 400 MHz
• Memory: 128 MB RAM, 512 MB Flash
• Protection Rating: IP20
• Weight: ~1.25 kg (varies by model/configuration)
• Mounting: DIN rail

3. Key Features

• High Reliability: Built with premium electronic components for stable operation in harsh environments.
• High Performance: Advanced computing power for complex industrial control tasks.
• Long Lifespan: Durable materials reduce replacement and maintenance costs.
• Easy Maintenance: Standardized design simplifies upkeep.
• Multi-Interface Support: Compatible with Ethernet, serial ports, and more.
• High Precision: Accurate signal measurement for real-time monitoring.
• Isolation Design: Minimizes electromagnetic interference for enhanced reliability.
• Flexible Configuration: Adaptable to diverse automation needs.

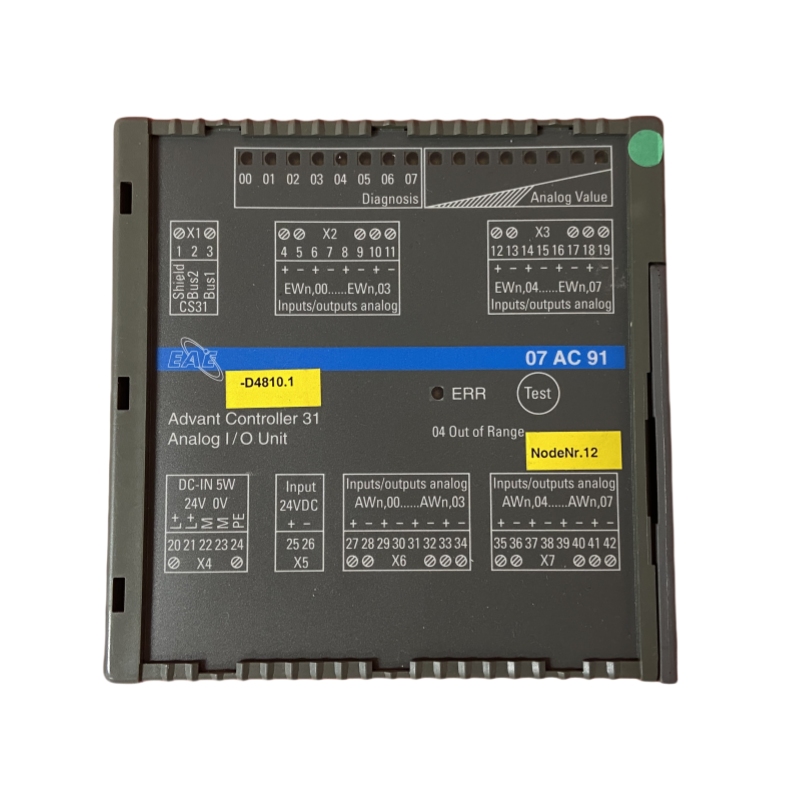

4. Structure & Components

The ABB GJR5252300R3101 07AC91F features a modular design for easy integration into existing systems. Key components include:

• Analog Inputs: 8 high-resolution (16-bit) channels (configurable as voltage/current).
• Analog Outputs: 8 channels with dual independent outputs.
• Processor: 400 MHz CPU supporting IEC 61131-3 programming languages.
• Communication: Modbus, Ethernet, RS-232/485 interfaces.
• Power Supply: 24 V DC input for stable operation.
• Housing: Metal casing for mechanical strength and insulation.

5. Applications

The module is widely used in:

• Industrial Process Control: Chemical, metallurgy, oil & gas, manufacturing, automotive, textiles, etc.
• Robotics: Supports robot control systems.
• Building Automation: Monitors temperature, humidity, and other parameters.
• Environmental Monitoring: Air/water quality detection.
• Power Industry: Energy management and grid systems.
• Transportation: Automation for railways, ships, and subways.

6. Installation & Maintenance

• Installation: DIN rail mounting ensures quick integration. Professional installation is recommended.
• Maintenance: Regular cleaning and inspections ensure longevity. The module operates reliably in diverse conditions.
• Warranty & Support: Includes 12-month warranty and dedicated technical support.

———————————————————————————————————————————
