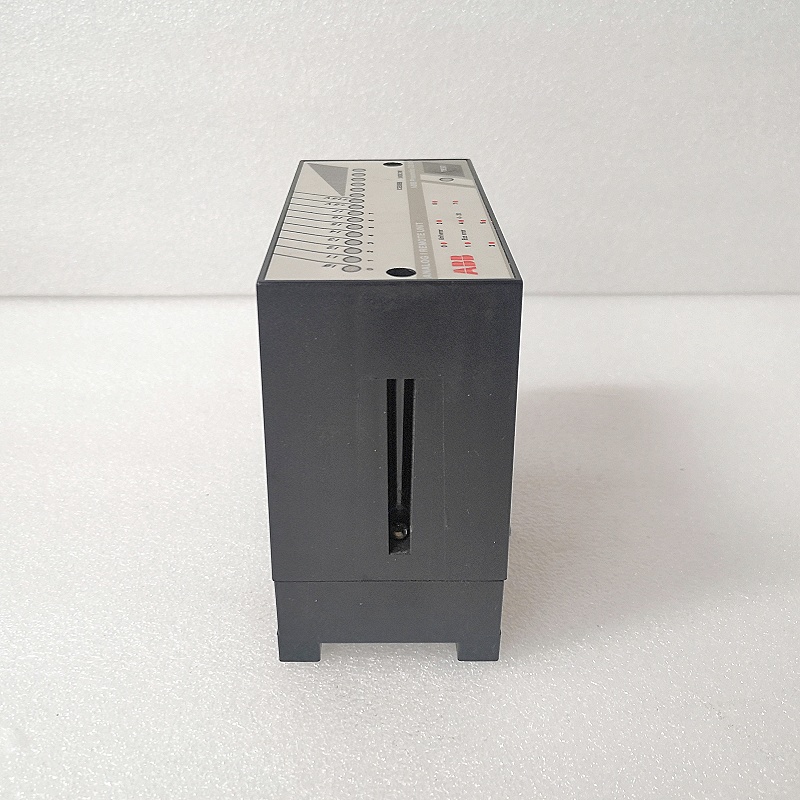

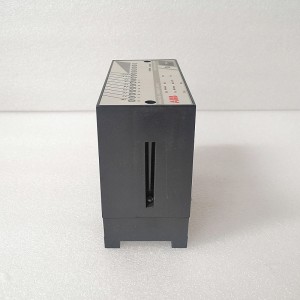

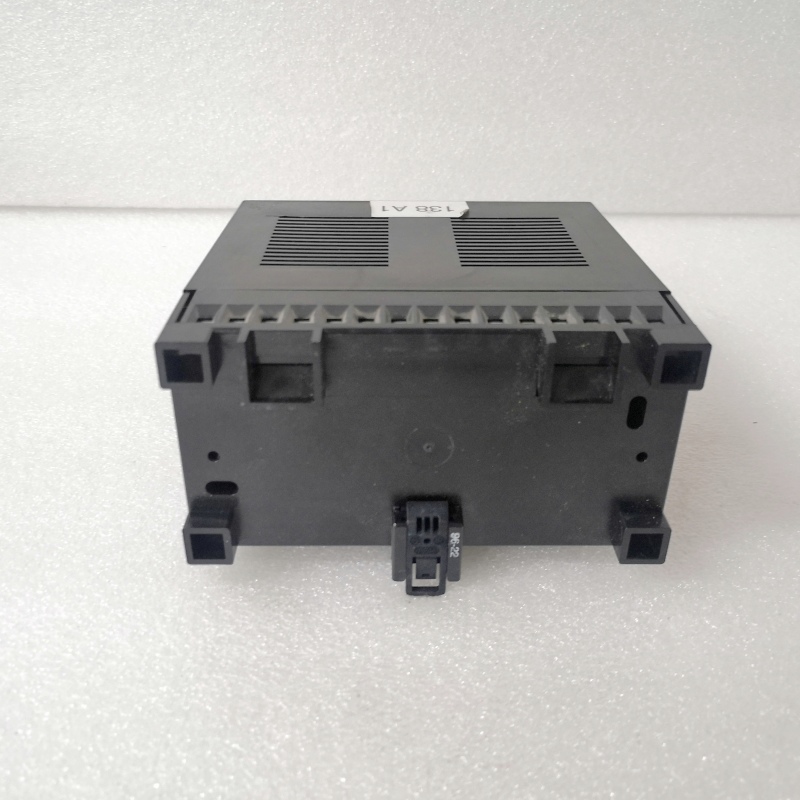

ABB ICSE08B5 FPR3346501R1012

1. Overview

The ABB ICSE08B5 FPR3346501R1012 is a remote analog input/output module from the ABB Procontic series, designed for industrial automation control systems. It converts analog signals (e.g., temperature, pressure, flow rate) from industrial sites into digital signals for computer processing and control. The module supports multiple industrial fieldbus protocols, such as PROFINET and EtherCAT, enabling seamless integration with other devices and systems.

2. Specifications

• Input Voltage: 24 VDC ± 20% or 0–10 VDC
• Input Current: ±20 mA
• Output Voltage: 24 VDC
• Output Current: 5 A
• Power Rating: 120 W (power module)
• Efficiency: >85%
• Operating Temperature Range:
  • Power Module: -25°C to +70°C
  • I/O Module: -40°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Protection Rating:
  • Power Module: IP20
  • I/O Module: IP67 (partial modules)
• Dimensions:
  • Power Module: ~110 × 100 × 30 mm
  • I/O Module: 54 × 90 × 114.5 mm
• Weight:
  • Power Module: 0.35 kg
  • I/O Module: 0.28 kg

3. Key Features

• High-Precision Signal Conversion: 12-bit resolution ensures accurate and reliable signal transmission.
• Multi-Channel Design: 8 independent measurement channels for diverse industrial applications.
• Fast Response: Real-time analog signal capture and processing.
• High Reliability: Built-in protections (overload, overtemperature) for stable operation in harsh industrial environments.
• Flexible Integration: Supports multiple industrial fieldbus protocols for easy system compatibility.
• Energy-Efficient: Advanced digital control technology reduces power consumption.
• Easy Installation & Maintenance: Modular design simplifies deployment and servicing.

4. Structure & Components

The ABB ICSE08B5 FPR3346501R1012 consists of:

• Input Interface: 8 analog input channels (-10 V to +10 V range).
• Signal Processing Unit: Converts analog to digital signals.
• Communication Interface: RS-485 serial communication for PLC or DCS connectivity.
• Power Module: Delivers stable 24 VDC output.
• Protection Circuitry: Overload/overtemperature protection, EMC filters, and more.

5. Applications

The module is widely used in:

• Manufacturing: Automated production line control.
• Chemical Industry: Process control and environmental monitoring.
• Power Systems: Data acquisition and monitoring.
• Building Automation: Smart HVAC and lighting systems.
• Automotive: Robotic control and assembly line supervision.
• Food & Beverage: Process automation in production.
• Water Treatment: Quality monitoring and control.
• Metallurgy: Steel industry process management.

6. Installation & Maintenance

• Installation: Wall-mounted or DIN rail compatible for quick deployment.
• Maintenance: Modular design minimizes downtime. Built-in protections (overload/overtemperature) prevent damage.

———————————————————————————————————————————
