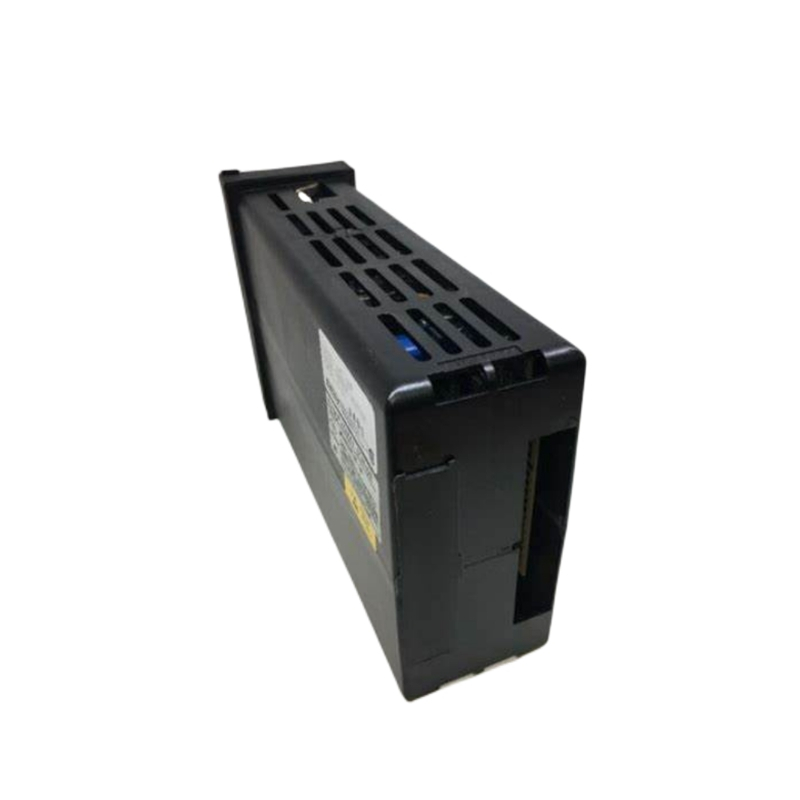

ABB IISAC01

I. Overview

II. Parameters

• Input voltage: 24 V DC ± 20%
• Output voltage: 24 V DC
• Input current: maximum 0.5 A
• Output current: maximum 2 A
• Operating temperature range: -10°C to 50°C
• Dimensions: 72 x 144 x 381 mm
• Power consumption: 540 mA (at 24 VDC)
• Communication interfaces: Modbus TCP/IP, Ethernet, RS485, etc.
• Protection class: IP20
• Installation method: DIN Rail

III. Main Features

• High precision: Adopts advanced analog control technology to achieve high-precision analog output.
• Multiple output options: Supports different output types and protocols to meet diverse application needs.
• Programmability: Allows programming to implement different control logics and algorithms, suitable for customized control scenarios.
• High reliability: Uses high-quality materials and manufacturing processes, and undergoes strict quality control and testing to ensure long-term stable operation.
• Good thermal performance: Maintains stability and reliability under high-load operation.
• Easy maintenance: Features a simple design, facilitating maintenance and upgrades, reducing maintenance costs, and improving equipment efficiency.
• Compact design: Small in size, easy to install and maintain.

IV. Structure and Composition

• Input module: Used to receive signals from sensors and transmitters.
• Output module: Used to control actuators and equipment.
• Communication module: Supports multiple communication protocols such as Modbus TCP/IP, Ethernet, RS485, etc.
• Power module: Provides stable 24VDC power support.

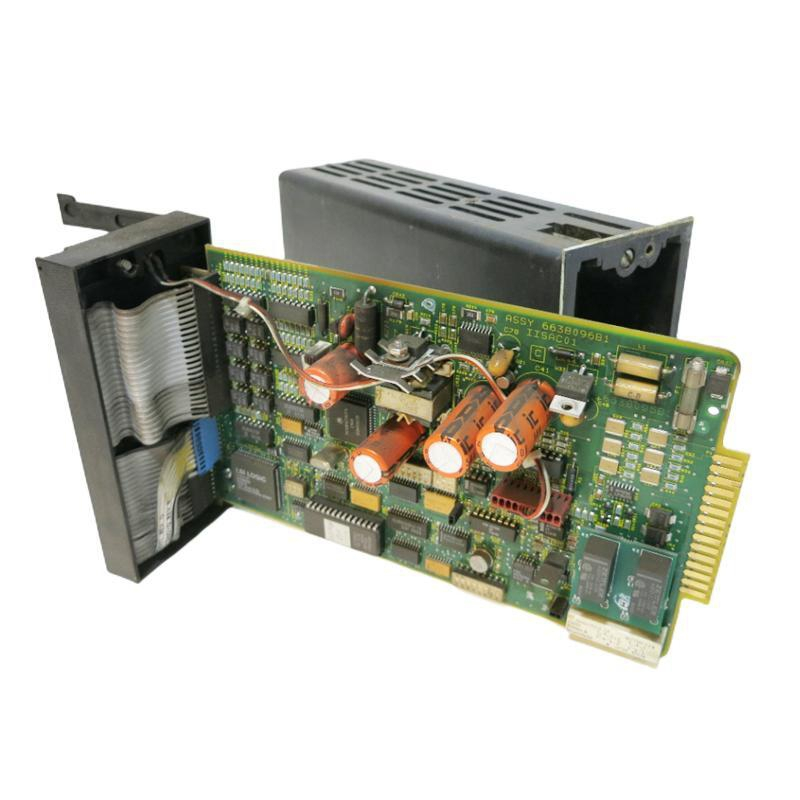

• Control mainboard: Equipped with a high-performance processor and supports rich input and output interfaces.

V. Main Application Fields

• Production line automation: In various production lines, it realizes precise control of equipment, improves production efficiency, and reduces manual intervention.
• Process control systems: In industries such as chemical engineering, pharmaceuticals, and food processing, it achieves precise control of key parameters such as temperature, pressure, and flow.
• Energy management: In power systems, it is used to monitor and control power systems, helping to achieve efficient energy use and energy conservation.
• Robotics: Combined with robot systems, it provides precise motion control and logic control, enhancing robot performance and stability.
• Environmental monitoring and control systems: In occasions requiring strict monitoring of environmental parameters, such as clean rooms and constant temperature and humidity environments, it is used to monitor and control environmental parameters.

VI. Installation and Maintenance

• Installation method: Supports DIN Rail or panel mounting.
• Connection: Connects with other equipment and systems through standard interfaces and communication protocols.
• Power supply: Provides stable 24VDC power support to ensure the normal operation of the module.

• Remote diagnosis: Supports remote diagnosis and maintenance, simplifying maintenance tasks.
• Maintenance cost: The simple design facilitates maintenance and upgrades, reducing maintenance costs.
• Reliability: High-quality materials and manufacturing processes ensure long-term stable operation, reducing failures and maintenance costs.
