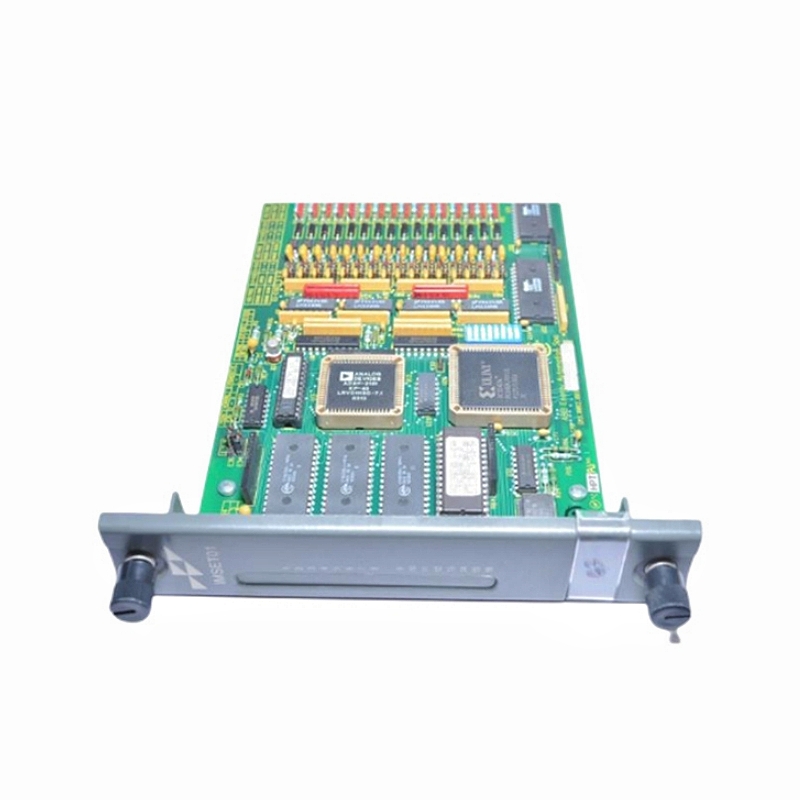

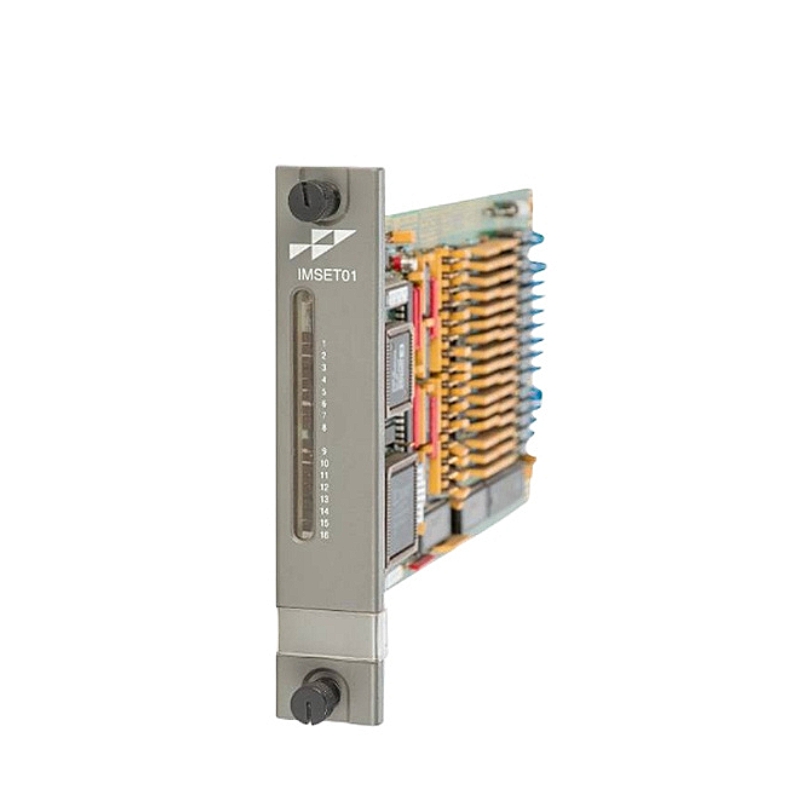

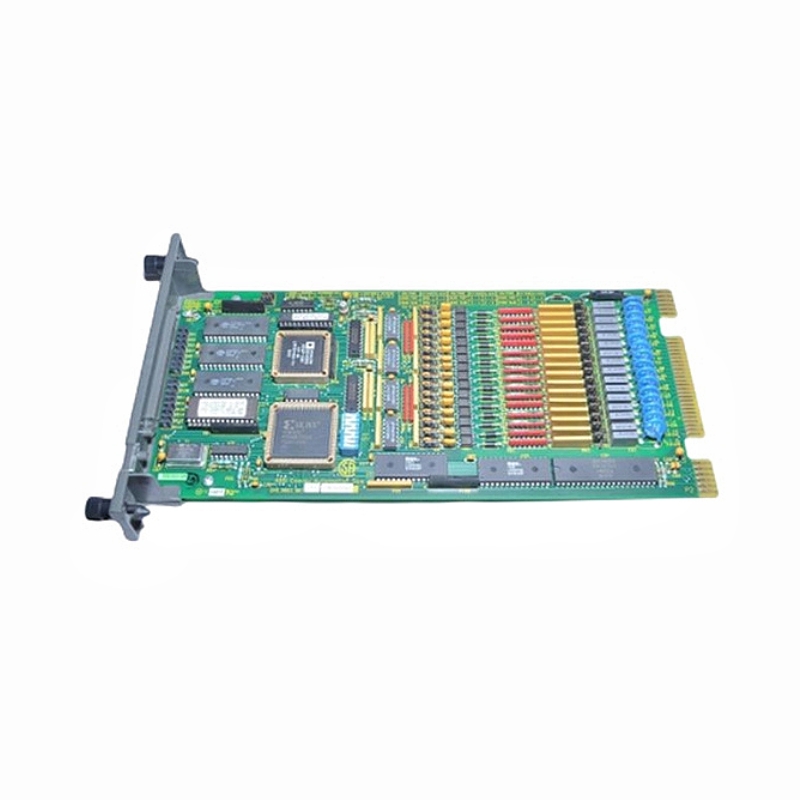

ABB IMSET01

I. Overview

II. Parameters

• Power Supply: 24 VDC.
• Input Voltage: 220V–240V.
• Output Power: 1000W.
• Operating Temperature: –20°C to 50°C.
• Dimensions: 100mm x 100mm x 50mm.
• Weight: 0.5kg.
• Communication Interfaces: Supports multiple protocols, such as Modbus, Profibus, CAN, RS232, RS485, etc.
• Processor Speed: 400 MHz.
• Memory: 256 KB RAM, 128 KB Flash.
• Storage Capacity: Internal storage can accommodate up to 10,000 event records.

III. Product Features

• High-Precision Timing: Timing accuracy reaches the microsecond level.
• Multiple Event Triggering Modes: Different triggering modes can be selected according to actual needs.
• Various Communication Interfaces: Supports multiple communication protocols for easy integration with other devices.
• Excellent Anti-Interference Performance: Suitable for complex industrial environments.
• Programmable Control Logic: Enables multiple complex control strategies.
• Compact Structural Design: Facilitates installation in existing power distribution cabinets.
• High Reliability: Adopts advanced technology to provide high-efficiency performance and functions.
• Flexibility: Can be configured and customized according to different application requirements.

IV. Structure and Composition

• Modular Design: Adopts a modular design for easy installation and maintenance.
• Digital Input/Output Module: Supports multiple digital input and output channels for receiving and sending control signals.
• Communication Interfaces: Supports Ethernet, RS485, USB, and other communication interfaces.
• Processor: Uses a 400 MHz processor, supporting multiple programming languages such as STL, Ladder, and Function.
• Power Management: Supports 24 VDC power supply with overcurrent, overvoltage, and undervoltage protection functions.

V. Application Fields

• Industrial Automation: Widely used in various industrial automation fields, including manufacturing, petrochemicals, power systems, railway transportation, construction engineering, environmental protection, and automobile manufacturing.
• Power Systems: Used for monitoring and controlling power systems to improve energy efficiency and system stability.
• Building Automation: Applied in building automation systems for controlling devices such as lighting, air conditioning, and security.
• Transportation: Used for signal control and traffic flow management in transportation infrastructure such as railways, highways, and ports.
• Mechanical Equipment Manufacturing: Integrated into various machinery and equipment to control operating status and parameters, improving equipment automation and production efficiency.

VI. Installation and Maintenance

• Installation: The module features a compact design for easy installation in existing power distribution cabinets, supporting multiple installation methods such as wall-mounted or horizontal installation.
• Maintenance: The module has excellent anti-interference performance, suitable for complex industrial environments. Sufficient internal storage facilitates long-term data recording.
• Programming: Supports multiple programming languages (e.g., STL, Ladder, Function) for users to customize according to specific needs.
• After-Sales Service: Provides a 12-month warranty, professional after-sales support, and fast delivery.

———————————————————————————————————————————
