1. Overview

2. Technical Parameters

• Input/Output Type: Supports multiple channels of analog signals (such as 4-20mA, 0-10V) or digital signal input and output; the specific number of channels shall refer to the specific module model.
• Operating Voltage: Usually 24V DC or 120/230V AC (depending on the specific power supply module).
• Communication Interface: Integrates industrial bus interfaces, such as Profibus, Modbus, DeviceNet, or ABB’s dedicated bus protocol (e.g., MMS).
• Environmental Adaptability: The operating temperature is usually between -20°C and +60°C, with electromagnetic interference (EMC) resistance and wide-temperature operation capability.
• Redundancy Support: Supports Hot Standby or Triple Modular Redundancy (TMR) to ensure no single point of failure in the system.

3. Product Features

• Modular Design: Supports plug-and-play, facilitating system expansion and maintenance.
• High Reliability: Adopts industrial-grade components, passes strict quality tests, and is suitable for harsh industrial environments.
• Self-Diagnosis Function: Built-in self-test program can real-time monitor hardware status and faults, supporting online diagnosis.
• Hot Swappable: Some models support module replacement during system operation, reducing downtime.
• Wide Voltage Input: Adapts to unstable power supply environments to ensure stable operation of the device.

4. Structure and Composition

• Housing: Made of sturdy plastic or metal material, with dust-proof and shock-proof performance.

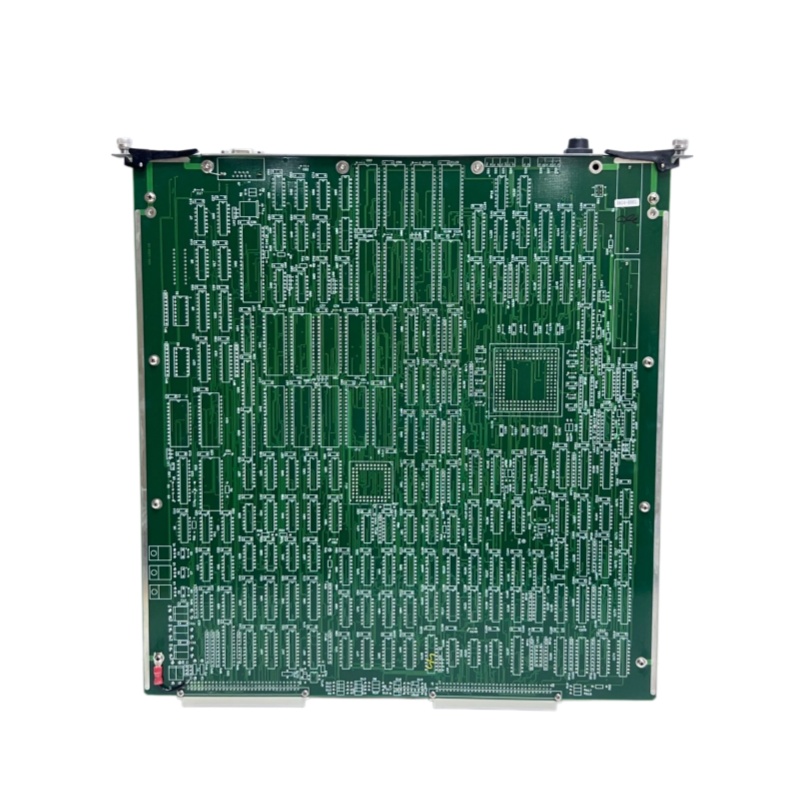

• Circuit Board: Integrates main control chip, signal conditioning circuit, power management module, and communication interface circuit.
• Connection Terminals: Provides standardized terminals for connecting sensors, actuators, and upper computers.
• Mounting Components: Equipped with DIN rail mounting slots or buckles for easy fixing in the control cabinet.
• Status Indication: The panel is equipped with LED indicators to show power, operation, fault, and communication status.

5. Application Fields

• Petrochemical Industry: Process control and safety interlock systems.
• Power Energy: Generator set control, substation automation.
• Water Treatment: Pump station control, water quality monitoring.
• Food and Beverage: Production line automation control.
• Manufacturing Industry: Discrete manufacturing and continuous production process control.

6. Installation and Maintenance

Installation Steps

1. Confirm that the power supply of the control cabinet is cut off.
2. Reserve space on the DIN rail or rack according to the module size.
3. Align the module with the rail and snap it in to ensure it is firmly fixed.
4. Connect the power supply, signal lines, and communication lines, paying attention to correct polarity.
5. Check for loose or short-circuited wiring before power-on.

Maintenance Recommendations

• Regularly check the status of the indicator lights and troubleshoot in a timely manner if abnormalities are found.
• Keep the equipment clean to prevent dust accumulation from affecting heat dissipation.
• Perform firmware upgrades or calibrations according to the cycle recommended by the manufacturer.
• If the module fails, it is recommended to directly replace it with a spare module and record the fault information.
