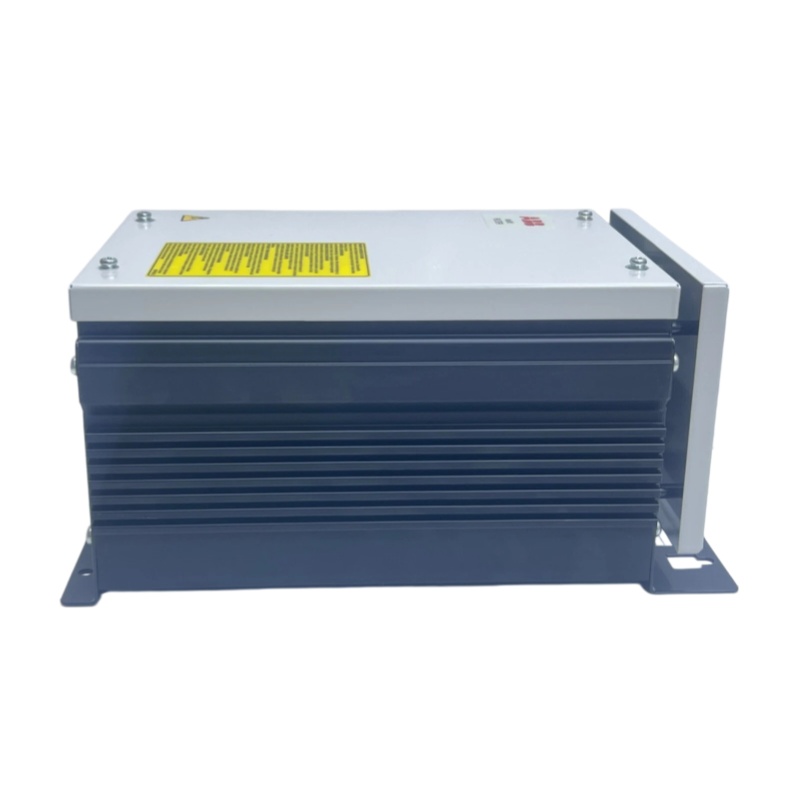

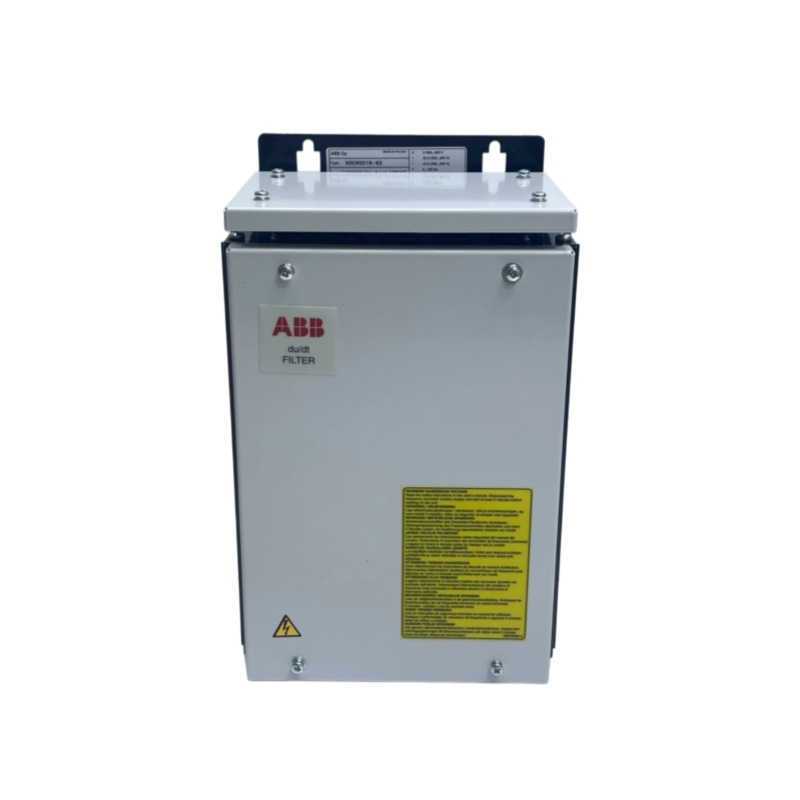

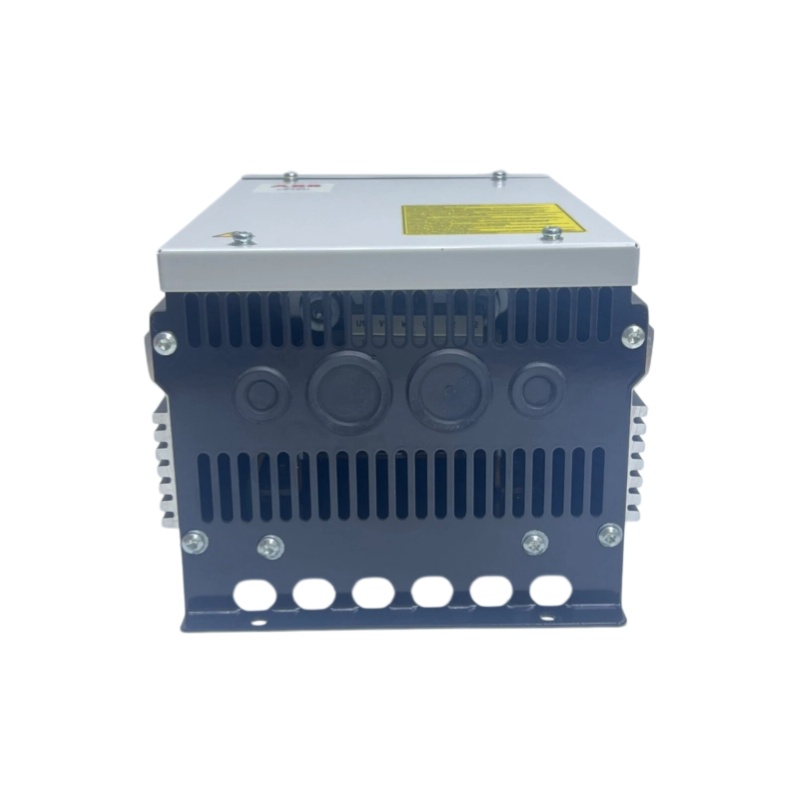

ABB N0CH0016-62 64023063 Filter
ABB N0CH0016-62 64023063
1. Product Overview
2. Technical Parameters
|
Parameter Item
|
Technical Index
|
|---|---|
|
Rated Voltage
|
380 … 690 V ± 10%
|
|
Input Voltage Range
|
380-690V AC (Three-phase)
|
|
Short-time Withstand Current
|
50 kA / 1s
|
|
Maximum Output Frequency
|
120 Hz
|
|
Maximum Average Switching Frequency
|
3 kHz (Voltage＜500V); 2 kHz (Voltage＞500V)
|
|
Ingress Protection Rating
|
IP00 (Without protective enclosure)
|
|
Maximum Energy Loss (Emax)
|
24 mJ (Refer to peer model LOCH0016-60)
|
Ambient Parameters
- Operating Ambient Temperature: -15°C to +50°C
- Storage Ambient Temperature: -40°C to +70°C
- Operating Altitude: 0m to 4000m
- Humidity Range: 5% to 95% (Non-condensing)
3. Product Features
- Excellent Protection Performance: It can significantly reduce voltage spike value and du/dt value at motor terminals, preventing damage to the motor insulation system.
- Cooling Method: Adopts natural convection cooling mode.
- Heat Dissipation Property: The surface operating temperature can exceed 150°C. Sufficient heat dissipation space shall be reserved during installation.
- Dedicated Design: Developed for ABB drive systems, compatible with IGBT power supply units and dynamic braking units.
- Reliable Connection Performance: Shielded cables must be used for connection between shells, and reliable grounding is required to guarantee electromagnetic compatibility (EMC).
- Cost-effective: Lower procurement cost than sine wave filters, while providing effective protection for motor insulation.
4. Structure & Composition
4.1 Mechanical Structure Components
- Inductor Coil: The core component of the filter, used to suppress the rate of voltage change.
- Copper Busbar: Internal conductive connecting component.
- Internal Circuit Structure: Equipped with filtering circuits and matching components (See internal circuit diagram in the official ABB technical manual for details).
4.2 Installation Structural Characteristics
- Lifting Holes: Reserved on the top for hoisting and transportation.
- Fixing Holes: Arranged at the bottom, fixed on the mounting surface via 4 bolts.
- Grounding Device: Connected to protective earth (PE) terminal through the mounting bracket.
5. Application Fields
5.1 Compatible Inverter Models
5.2 Applicable Scenarios
- Long-distance motor cable application: Protect cable and motor insulation under long motor cable layout conditions.
- Cable length specification: Max. cable length between drive output terminal and filter: 3m; Max. motor cable length (single filter): 150m; Max. motor cable length (two filters connected in series): 300m.
- Multi-motor parallel drive occasions
- Special cable application: Applicable for special cables that generate extra operating temperature rise.
- Industrial electric drive systems: Widely applied in industrial automation, pump & fan control, conveyor systems and other industrial scenarios requiring motor insulation protection.
————————————————————————————————————-
