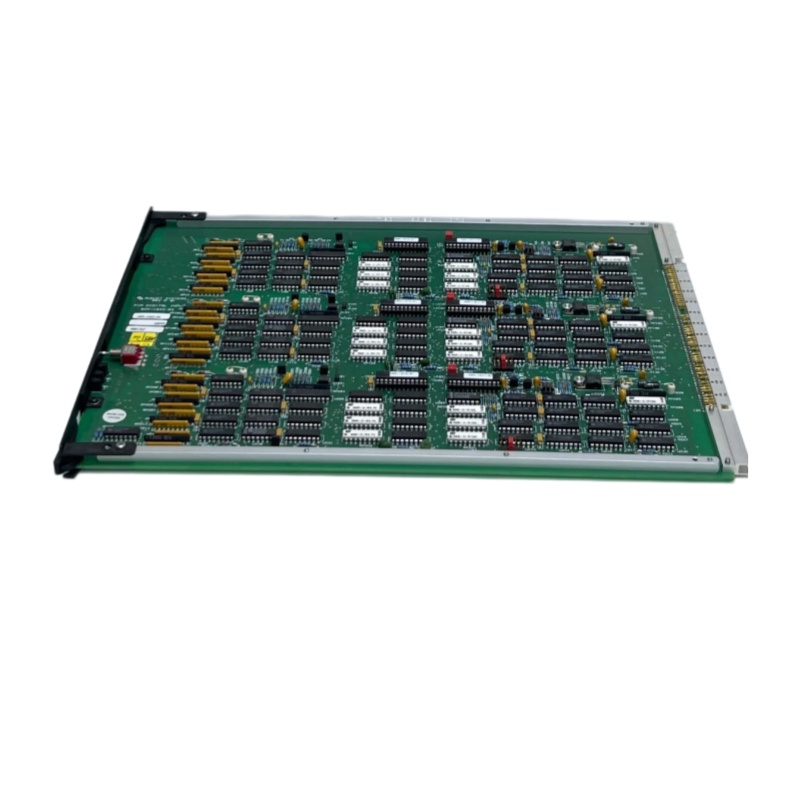

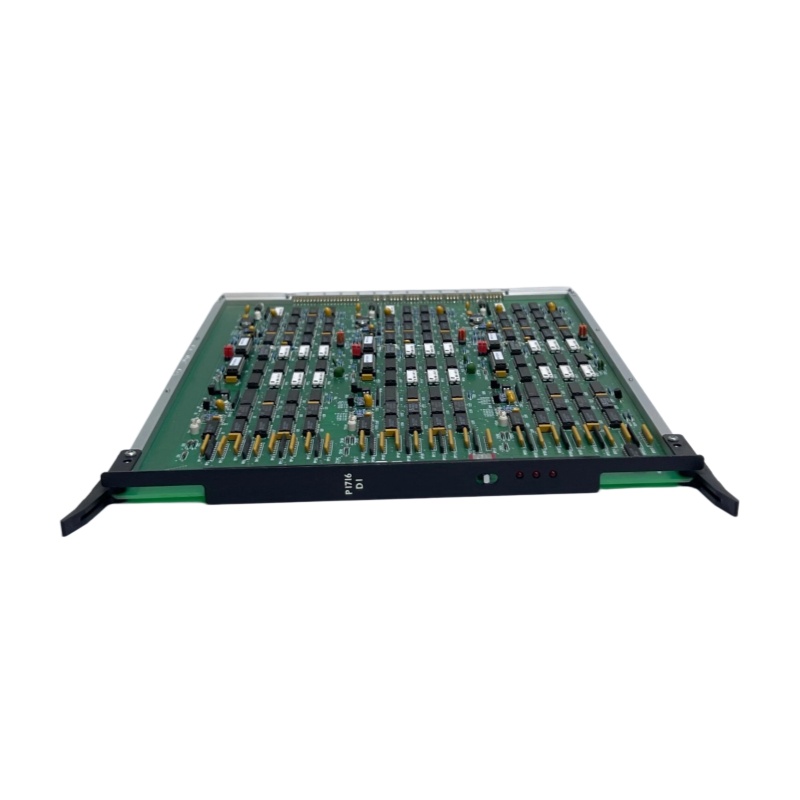

ABB PI716DI 099-1045-08

1. Product Overview

The ABB PI716DI 099-1045-08 is a high-performance industrial drive control module designed for precision motion control in demanding automation environments. As part of ABB’s trusted PI series, this unit provides reliable signal interfacing between PLC systems and variable frequency drives (VFDs). It excels in real-time data processing, fault diagnostics, and seamless integration into existing ABB drive architectures. Built for continuous operation in harsh industrial settings, the PI716DI ensures minimal downtime and optimized energy efficiency.

2. Key Features

• High-speed digital input processing for real-time drive feedback
• Galvanic isolation to protect against electrical noise and surges
• Wide operating temperature range: -20°C to +70°C
• Compatible with ABB ACS800, ACS880, and DCS800 series drives
• LED status indicators for power, communication, and fault alerts
• Redundant power input support for mission-critical applications
• Hot-swappable design (with proper system isolation)

3. Technical Parameters (Table Format)

4. Structure & Composition

The PI716DI module features a rugged, flame-retardant plastic housing with a snap-on DIN rail mechanism. Internally, it comprises:

• Input Filter Stage – RC filters for noise suppression.
• Opto-isolation Barrier – Ensures electrical separation between field signals and the backplane.
• Microcontroller Unit – Handles signal conditioning and diagnostic routines.
• Terminal Block Interface – Removable spring-clamp terminals for easy wiring.

The front panel includes a clear label for model identification (099-1045-08) and eight green LEDs, each corresponding to one digital input channel.

5. Installation & Maintenance

Installation:

• Mount on a grounded 35mm DIN rail within a control cabinet (minimum IP54 enclosure recommended).
• Ensure ambient temperature does not exceed 70°C; allow 50mm clearance above and below for airflow.
• Connect 24V DC power to terminals 1 (+) and 2 (-).
• Wire field devices (e.g., limit switches, proximity sensors) to input terminals 3–10.

Maintenance:

• Inspect terminals for tightness every 6 months in high-vibration environments.
• Clean dust accumulation using compressed air (low pressure).
• Replace module if any LED shows persistent red (internal fault).

6. Application Fields

• Conveyor belt speed control systems
• Packaging machinery (pick-and-place units)
• Crane and hoist drive feedback loops
• HVAC pump and fan arrays
• Automated assembly lines in automotive plants
• Wind turbine pitch control systems

7. Additional Information

• Certifications: CE, UL 508, RoHS compliant
• MTBF: >500,000 hours (Telcordia SR-332)
• Firmware compatibility: Version 3.2 or higher
• Replaces older models: PI716BI, PI716CI
• Warranty: 18 months from date of shipment

The ABB PI716DI 099-1045-08 is an ideal drop-in replacement for legacy drive interface modules, offering improved noise immunity and faster response times compared to generic I/O cards.
