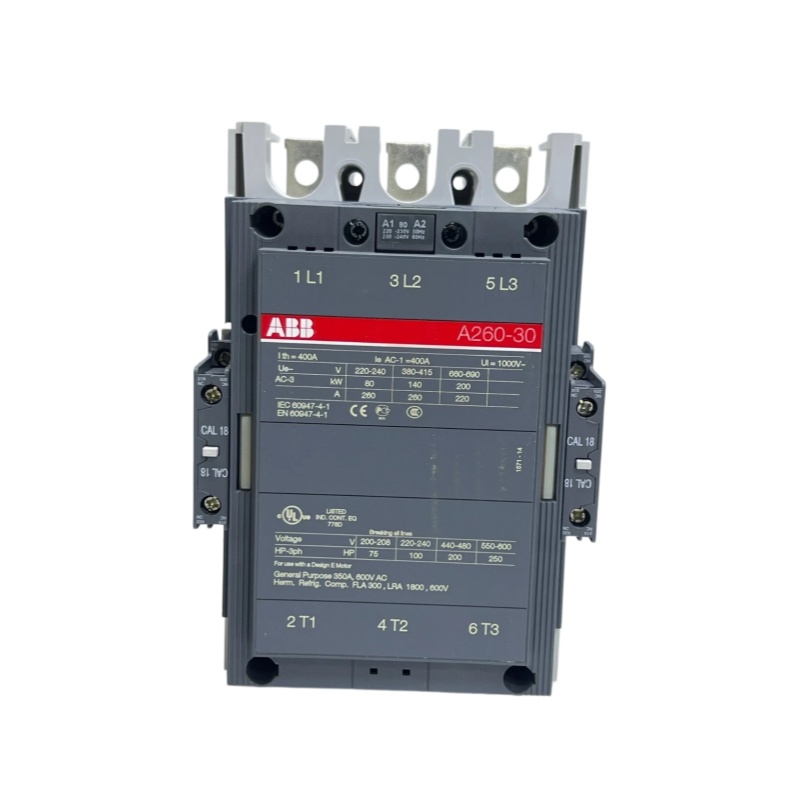

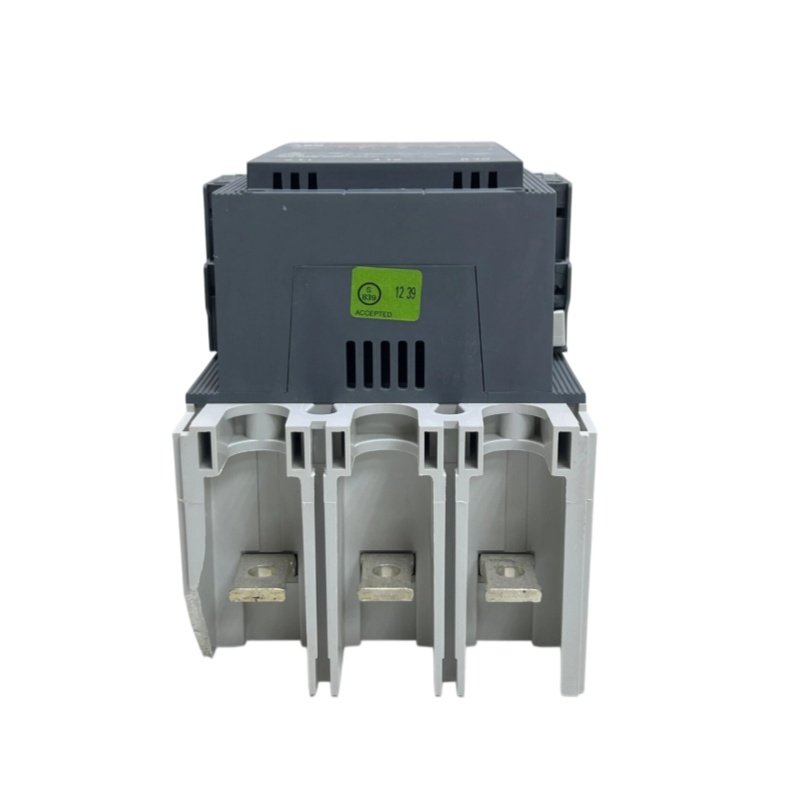

ABB A260-30-22-80 AC contactor
ABB A260-30-22-80
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Rated Current
|
260A
|
|
Number of Poles
|
3 Poles
|
|
Rated Voltage
|
24-690V
|
|
Coil Voltage
|
AC24V/110V/220V/380V, etc.
|
|
Coil Frequency
|
50Hz/60Hz
|
|
Conventional Thermal Current
|
400A
|
|
Operating Temperature
|
-40～+70℃
|
|
Operating Altitude
|
≤3000m
|
|
Mechanical Life
|
1,000,000 times
|
|
Main Contacts
|
3 Normally Open (3NO)
|
|
Auxiliary Contacts
|
2NO+2NC (indicated by the suffix -22 of the model)
|
|
Overall Dimensions
|
Approx. 140mm×227mm×180.5mm
|
3. Product Features
- Reliable contact performance and long service life
- High temperature resistance and corrosion resistance
- Compact and integrated structure
- Air-type arc extinguishing design for safe operation
- Flexible installation: supports vertical and horizontal mounting
- Compatible with DIN rail installation
4. Structure and Composition
4.1 Core System Configuration
- Main Contact System: 3-pole normally open contacts (3NO)
- Auxiliary Contact System: 2NO+2NC auxiliary contacts
- Electromagnetic System: Consists of coil, moving iron core and static iron core
- Arc Extinguishing System: Equipped with air-type arc extinguishing device
4.2 Terminal Definition
- Main Circuit Inlet: 1L1, 3L2, 5L3
- Main Circuit Outlet: 2T1, 4T2, 6T3
- Normally Open (NO) Auxiliary Contact Inlet: 13, 23, 33, 43
- Normally Open (NO) Auxiliary Contact Outlet: 14, 24, 34, 44
- Normally Closed (NC) Auxiliary Contact Inlet: 11, 21, 31, 41
- Normally Closed (NC) Auxiliary Contact Outlet: 12, 22, 32, 42
- Coil Terminals: A1, A2
5. Application Fields
- Motor control and protection systems
- Power energy management equipment
- Industrial electrical control systems
- Three-phase motor load control scenarios
6. Installation and Maintenance
6.1 Installation Specifications
- Installation Direction: Vertical or horizontal installation is permitted; the inclination angle shall not exceed ±30° during vertical installation
- Installation Method: Standard DIN rail mounting
- Wiring Requirement: Wire strictly in accordance with terminal marks to ensure correct circuit connection
6.2 Environmental Requirements
6.3 Maintenance Guidelines
————————————————————————————————————-
