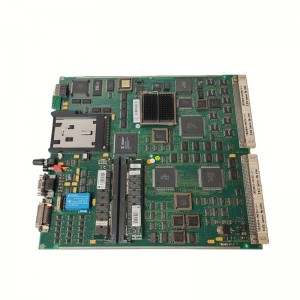

ABB PM511V16 3BSE011181R1

1. Overview

2. Key Specifications

• Model/Part Number: PM511V16 3BSE011181R1
• Power Supply: 24 V DC input, with an output power of 0.75 kW
• Processor: PowerPC 603e/604e, running at a clock speed of 800 MHz (a 400 MHz version is also available)
• Memory/Storage: 16 MB SDRAM and 512 KB Flash
• Communication Interfaces: Ethernet (2 ports), RS‑232, RS‑485, Profibus DP, etc.
• I/O: 32 I/O points (single-slot width), supporting mixed input/output groups
• Operating Temperature: -40 °C to 70 °C; Storage Temperature: -40 °C to 85 °C
• Protection Class: IP20
• Dimensions/Weight: Approximately 120 mm × 100 mm × 33 mm, weighing between 0.3 kg and 0.5 kg

3. Product Features

• High-Density Design: Offers 32 I/O points within a single slot, effectively reducing cabinet space requirements and optimizing equipment layout.
• Modular Structure: Separates the CPU board, baseboard, and power module, enabling convenient expansion and maintenance with minimal downtime.
• Powerful Computing Capability: Equipped with an 800 MHz PowerPC processor, it is ideal for complex logic control, process regulation, and motion control tasks in demanding industrial scenarios.
• Superior Reliability: Complies with IEC 60068‑2‑6 (vibration resistance) and IEC 61000‑4‑5 (surge immunity) standards, and supports hot-swapping for uninterrupted system operation.
• Flexible Configuration: Compatible with multiple communication protocols (Ethernet, serial port, Profibus), facilitating seamless integration into existing industrial automation systems.

4. Structure and Components

• CPU Board: Executes control programs and houses the PowerPC processor, serving as the core computing unit of the module.
• Baseboard: Provides I/O interfaces and backplane connectivity for communication with other modules, ensuring stable data transmission between components.
• Power Module: Supplies 24 V DC power to the CPU and baseboard, with a power rating of 384 W to meet the module’s operational power demands.
• Connectors: Features M12 threaded connectors or DIN rail clips, enabling quick and secure assembly for efficient on-site installation.

5. Application Fields

• Process control, factory automation, and building automation systems
• Power systems, oil and gas, chemical industry, and metallurgy sectors
• High-reliability demand scenarios such as water treatment, food and beverage production, packaging machinery, and conveyor systems

6. Installation and Maintenance

• Installation Method: Supports 35 mm DIN rail or panel mounting. It is essential to ensure adequate heat dissipation and proper power supply matching during installation to guarantee stable operation.
• Wiring: Follow the wiring diagrams provided by ABB and use the corresponding I/O interface terminals to maintain connection accuracy and system safety.
• Maintenance Tips: Regularly inspect the temperature of the power module and the integrity of backplane connections. The hot-swappable design allows for quick module replacement in case of faults, minimizing production disruptions.
• Documentation Support: ABB officially provides installation guides, maintenance manuals, and troubleshooting handbooks. It is recommended to keep paper or electronic copies of these documents on-site for easy reference.
