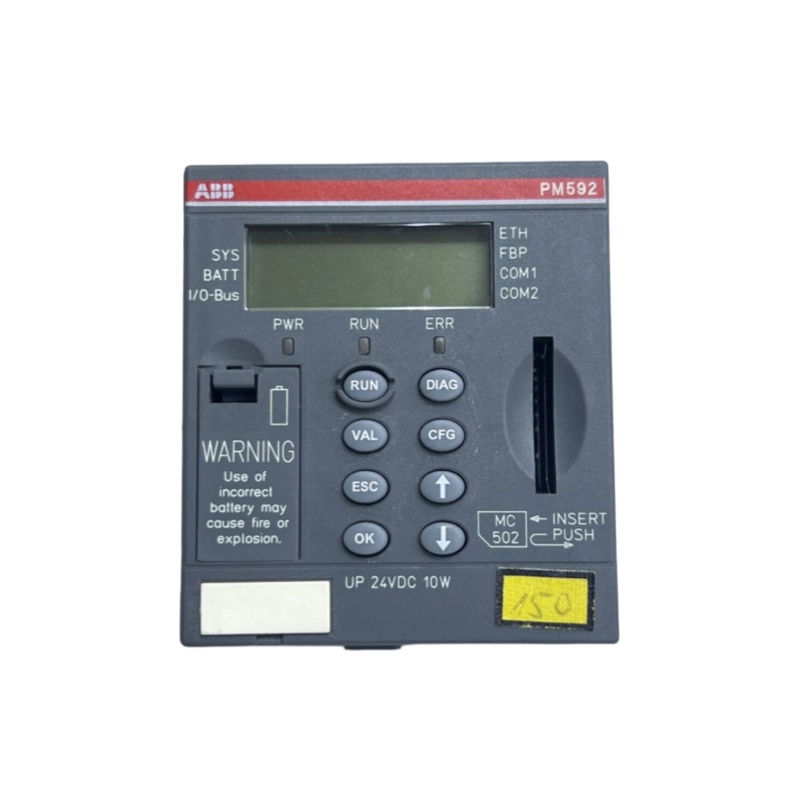

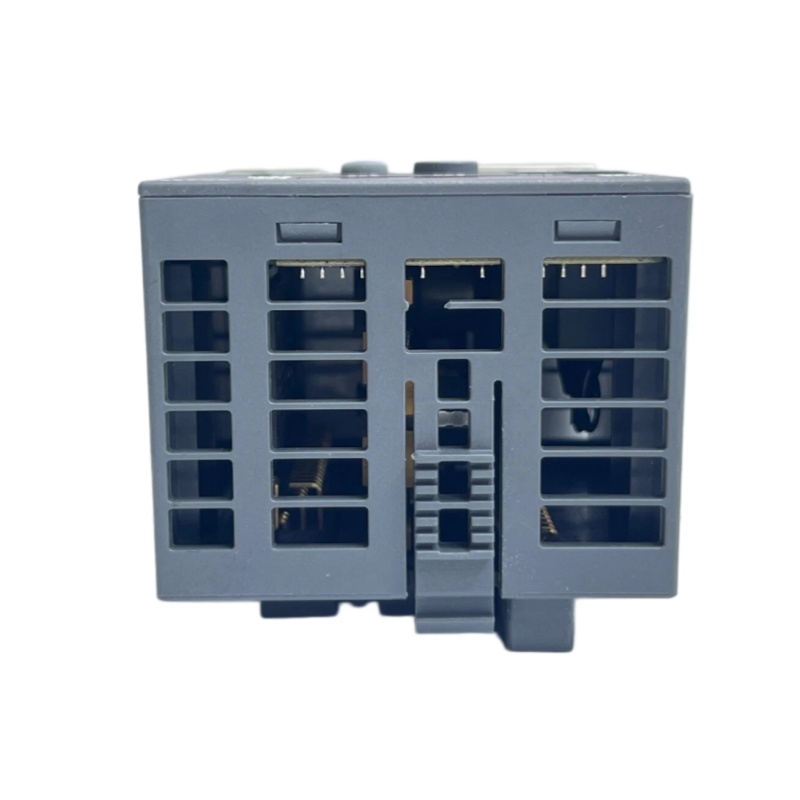

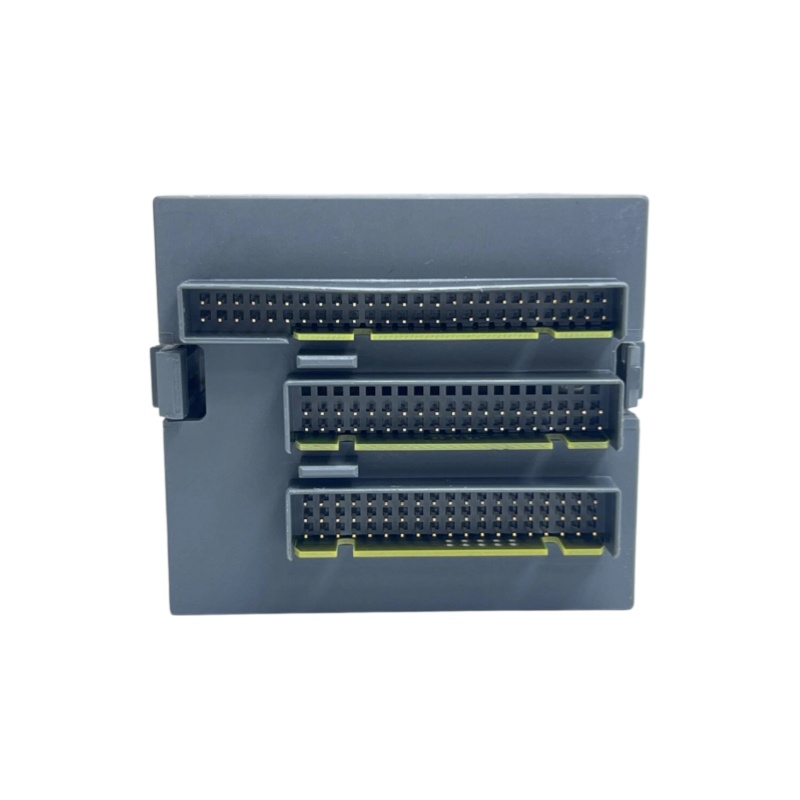

ABB PM592 1SAP150200R0271 CPU Module
ABB PM592 1SAP150200R0271
1. Product Overview
2. Technical Parameters
2.1 Core Hardware Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Processor
|
ARM Cortex-A72 Quad-core Processor, 2.0GHz Main Frequency
|
|
Flash Memory
|
1GB (Program storage, supports FAT32/EXT4 file systems)
|
|
RAM
|
512MB (Data cache with ECC error correction function)
|
|
Program Memory
|
4096KB (4MB)
|
|
User Flash Memory
|
4GB
|
|
Hard Real-time Task Cycle
|
20μs – 1s
|
|
Soft Real-time Task Response
|
<0.5ms
|
|
Bit/Word/Floating-point Operation Speed
|
0.002ms / 0.006ms / 0.006ms
|
2.2 Electrical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Power Input
|
24VDC±15% (Typical range: 20-28VDC)
|
|
Power Consumption
|
<80W (Typical value)
|
|
Operating Voltage
|
24VDC
|
|
Certifications
|
CE, RoHS
|
2.3 Mechanical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Dimensions
|
120mm×120mm×100mm
|
|
Weight
|
Approx. 0.5kg
|
|
Ingress Protection Rating
|
IP20 (To be installed in control cabinet)
|
3. Product Features
3.1 High-performance Processing
- Equipped with advanced ARM Cortex-A72 quad-core processor with a 2.0GHz main frequency for powerful computing performance
- Supports multi-task parallel processing and hard real-time scheduling mechanism
- Delivers high-speed data processing and precise industrial control capabilities
3.2 Rich Communication Interfaces
- 2 COM ports (RS232/RS485), configurable for programming, Modbus and CS31 master station functions
- Built-in Ethernet port, supporting TCP/IP, Web Server, SNTP and IEC60870-5-104 protocols
- FBP interface for distributed I/O expansion
- Compatible with Modbus master/slave communication and ASCII communication functions
3.3 Flexible Storage Expansion
- Built-in SD card slot for external storage expansion
- 4GB user flash memory for mass data storage
- Equipped with LCD display for convenient on-site status monitoring
3.4 High Reliability & Compatibility
- Modular structural design for simple installation and convenient daily maintenance
- Fully compatible with other CPU modules of the ABB AC500 series
- Supports redundant power supply (matched with PS505 high-power power module)
- Adopts high-quality electronic components to ensure long-term stable operation in industrial scenarios
3.5 Powerful Diagnosis Function
- Supports real-time fault diagnosis and equipment status monitoring
- Effectively guarantees continuous and stable production operation
- Seamlessly integrable with existing industrial control systems
4. Structure & Composition
4.1 Main CPU Module
- Processor circuit board
- Power management module
- Integrated storage module (Flash + RAM)
4.2 Communication Interfaces
- 2 × RS232/RS485 serial communication ports
- 1 × TCP/IP Ethernet port
- 1 × FBP bus interface
4.3 Expansion Interfaces
- SD card slot for external storage expansion
- LCD display module for local monitoring
- Bus connector interface
4.4 Matching Modules
- TB511-ETH: Ethernet terminal module (Model: 1SAP111100R0270)
- PS505: High-power power supply module
- Multiple I/O modules: Support distributed I/O system expansion
5. Application Fields
5.1 Manufacturing Industry
- Production line automatic control
- Equipment monitoring and data acquisition
- Intelligent manufacturing system construction
5.2 Energy Industry
- Power system control
- Renewable energy management and scheduling
- Power generation equipment status monitoring
5.3 Petroleum & Chemical Industry
- Industrial process automatic control
- Safety interlock protection system
- Flow and pressure real-time monitoring
5.4 Environmental Protection & Water Treatment
- Sewage treatment automatic control
- Environmental quality monitoring system operation
5.5 Other Industries
- Metallurgical industry automation
- Transportation equipment control
- Building automation system
