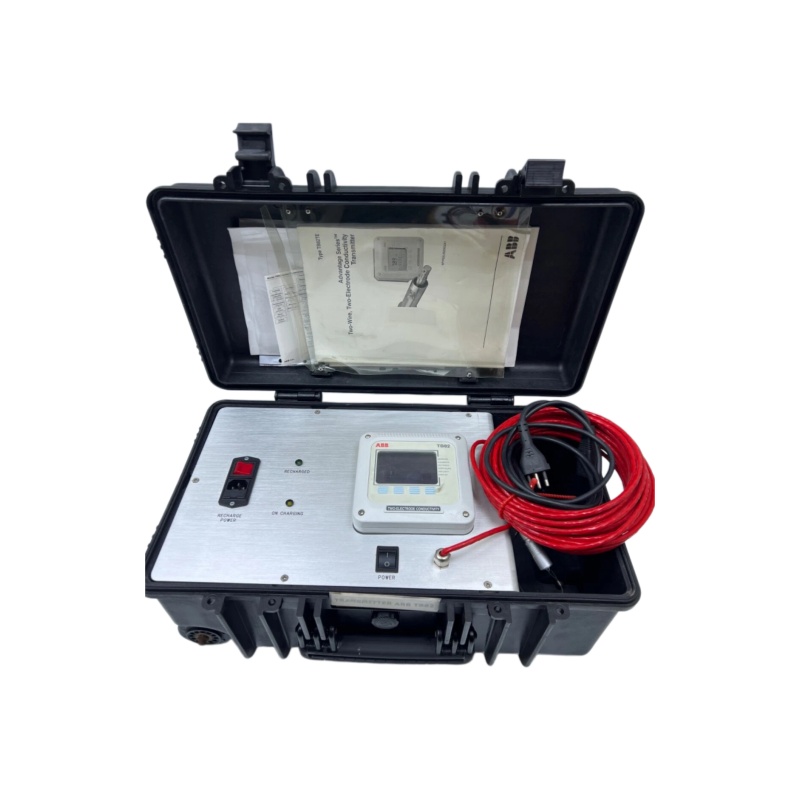

ABB TB82 TB82TE Product Line
ABB TB82 TB82TE
1. Product Overview
2. Technical Parameters
|
Parameter Items
|
Technical Specifications
|
|---|---|
|
Conductivity Measurement Range
|
0.000 to 19.99 mS/cm (configurable)
|
|
Concentration Measurement Range
|
0.000 to 1999 EU (configurable unit)
|
|
Temperature Display Range
|
-20°C to 300°C (-4°F to 572°F)
|
|
Display Accuracy
|
±1.0% full scale (for conductivity and temperature)
|
|
Resolution
|
0.1/0.01/0.001 µS/cm (determined by electrode constant)
|
|
Dynamic Response Time
|
3 seconds (90% step change)
|
|
Damping Adjustment
|
0.0 to 99.9 seconds (continuously adjustable)
|
|
Ambient Temperature Range
|
-20°C to 60°C
|
|
Ingress Protection Rating
|
IP65 / NEMA 4X
|
|
Power Supply Requirement
|
Two-wire power supply
|
3. Product Features
3.1 Multiple Communication Protocol Support
- Analog Output: 4-20mA
- Digital Communication: HART, PROFIBUS PA, FOUNDATION Fieldbus
3.2 Calibration Function
- Supports 1-point or 2-point calibration for primary variables and temperature
- Calibration data supports manual modification
3.3 Temperature Compensation Function
- Manual compensation (0.1N KCl)
- Automatic compensation modes: Standard mode and adjustable coefficient mode
- Special compensation modes for media including pure water, neutral salt, acid and alkali
3.4 Certification & Protection Performance
- Class 1 industrial IT certification
- Compliant with IEC 61326-1 electromagnetic compatibility standard
- Robust and durable housing design, suitable for harsh industrial environments
3.5 Menu-guided Programming
4. Structure and Composition
4.1 Transmitter Main Body
- Microprocessor control unit
- Communication interface module
- Power input module
4.2 Sensor Interface
- Conductivity sensor (two-electrode, ABB exclusive)
- Temperature sensor (Pt100, Pt1000 platinum resistance)
4.4 Display and Operation Unit
- LCD display screen (shows conductivity, concentration, temperature and other parameters)
- Menu navigation keys
4.5 Housing
- Wall-mounted or pipe-mounted installation structure
- IP65/NEMA4X protective housing
5. Application Fields
- Chemical Industry: Production process monitoring and solution concentration control
- Power Industry: Boiler feed water and cooling water treatment
- Pulp and Paper Industry: Conductivity monitoring of black liquor and white liquor
- Water Treatment Industry: Drinking water, industrial wastewater and pure water system monitoring
- Food and Beverage Industry: Raw material concentration detection
- Other Industries: Electroplating, pharmaceutical, environmental protection and other industrial sectors
6. Installation and Maintenance
6.1 Installation Requirements
6.1.1 Installation Position
- Supports wall mounting and pipe mounting
- Avoid direct sunlight and high-temperature environments
- Reserve sufficient space for daily maintenance operations
6.1.2 Sensor Installation
- Only ABB-specified two-electrode conductivity sensors can be used
- The sensor cell constant shall match the transmitter settings
- Ensure the electrode is fully immersed in the measured liquid
6.1.3 Electrical Connection
- Adopts two-wire wiring mode (power supply and signal share the same line)
- Comply with the grade requirements of explosion-proof areas
6.2 Maintenance Guidelines
6.2.1 Regular Calibration
- Adopt 1-point or 2-point calibration procedures as standard
- Adjust the calibration frequency according to actual application requirements
6.2.2 Daily Inspection
- Check whether the display screen works normally
- Verify the stability of output signals
- Inspect the sensor for cleanliness and no sediment accumulation
6.2.3 Troubleshooting
