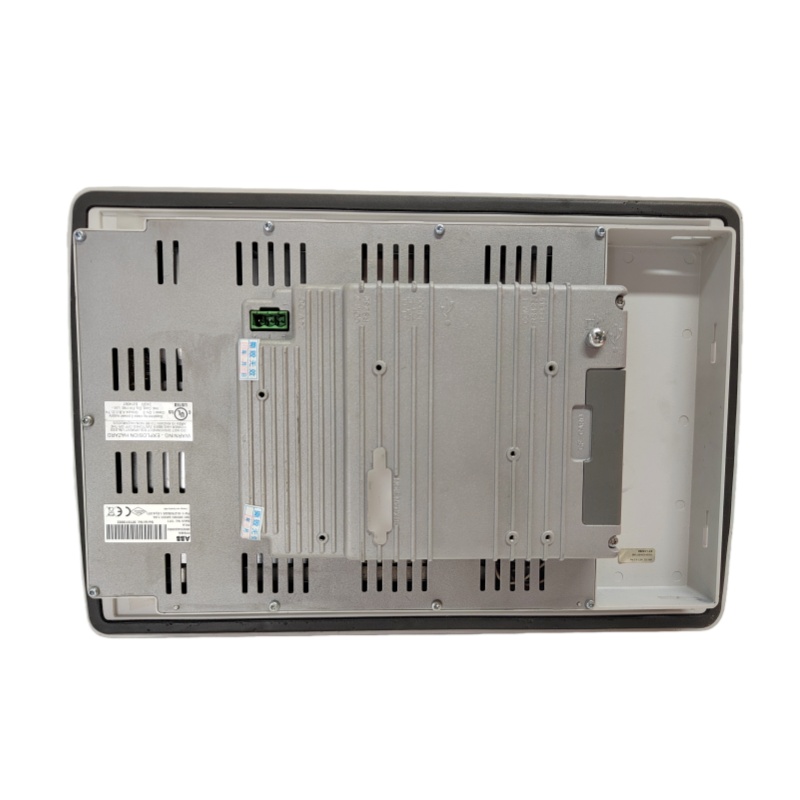

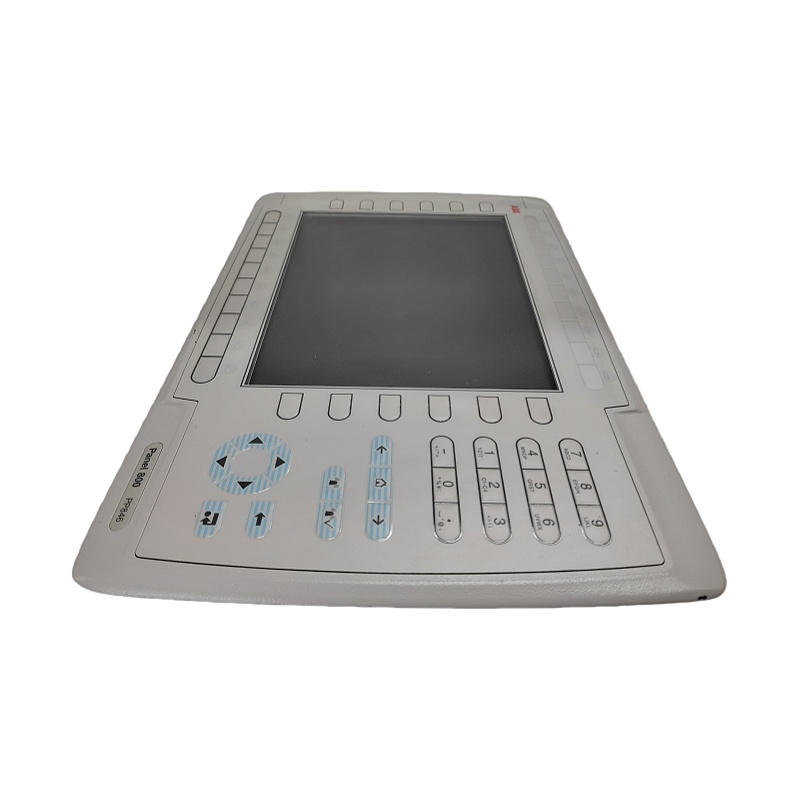

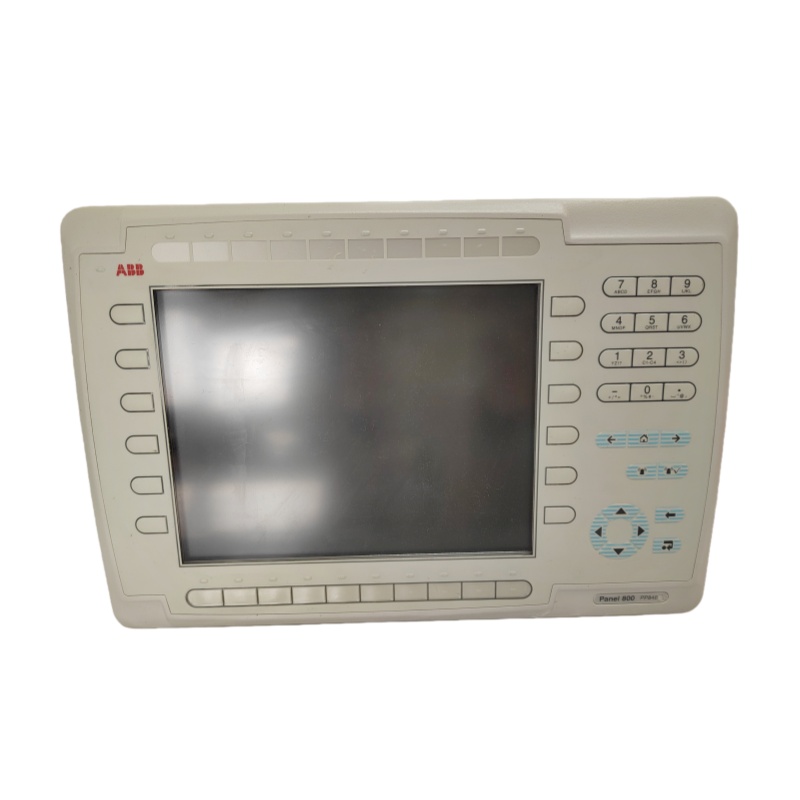

ABB PP846

The ABB PP846 is a multifunctional Human-Machine Interface (HMI) panel belonging to the ABB 800 xA series, specifically designed for industrial automation applications. It features an intuitive touch/graphic display and enables seamless integration with PLCs, control systems, and fieldbuses, making it ideal for monitoring and control tasks across diverse industrial sites.

Key Technical Specifications

• Supply Voltage: 24 V DC (±20 %)
• Power Consumption: Approximately 1.6 W
• Display Screen: 10.4-inch TFT color display with a resolution of 800 × 600 pixels
• Operating Temperature Range: -40 °C to +85 °C
• Protection Class: IP20
• Communication Interfaces: CAN, RS-232, Ethernet, Modbus/TCP, etc.
• Dimensions/Weight: Approximately 22.5 × 99.3 × 114.5 mm; weight ranges from 0.15 kg (compact model) to 2 kg (large model)
• Mounting Method: DIN rail or panel mounting, supporting quick snap-on installation

Product Features

• Modular Design: Flexible configuration of input/output channels for easy on-site expansion and maintenance
• High Reliability: Industrial-grade components, wide temperature tolerance, and electromagnetic interference (EMI) resistant filtering and isolation design
• Multiple Control Modes: Pulse/direction commands, analog speed regulation, torque control, and position/speed/torque closed-loop control
• Built-in Electronic Gearing: Adjustable encoder line counts and pole pairs for precise motion control
• Rich Display Functions: Support for graphics, text, and real-time parameter curves, facilitating operators to monitor system status
• Powerful Communication Capability: CAN bus enables network control of up to 200 axes, supporting high-speed command mode for multi-axis interpolation

Structure and Components

• Display Unit: Color TFT screen + touch/key panel
• Power/Electrical Module: Internal power conversion, overvoltage/undervoltage protection, and isolated input channels
• Communication Board: Interface modules for CAN, RS-232, Ethernet, etc.
• Expansion I/O: Optional optocoupler-isolated digital/analog input and output ports
• Mounting Brackets: DIN rail clips or panel mounting fixtures

Typical Application Fields

• Industrial automation and process control systems
• Machinery manufacturing and assembly lines
• Power system monitoring (power distribution and generation)
• Process monitoring in chemical and petroleum refining industries
• Building automation and facility management
• Traffic control and railway signaling systems

Installation and Maintenance Guidelines

• Installation: Fix via DIN rail or panel mounting. First, verify the correspondence between supply voltage and terminals, then use the included mounting brackets to ensure stability.
• Wiring: Follow the wiring diagram in the product manual. Pay attention to the electrical isolation of input channels and avoid mixing with high-voltage lines.
• Commissioning: After establishing communication with the host system via CAN/RS-232/Ethernet, use the configuration software provided by ABB to set parameters (voltage, communication baud rate, I/O functions).
• Maintenance: Regularly inspect terminals and clean the display surface. Ensure the protective cover is intact in high-temperature or humid environments. In case of faults, refer to the troubleshooting section in the manual; replace modular I/O cards or communication boards if necessary.
