ABB PP877 3BSE069272R2

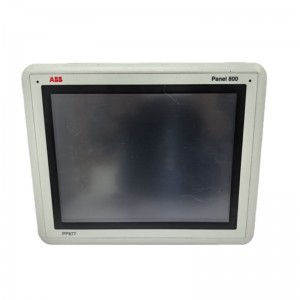

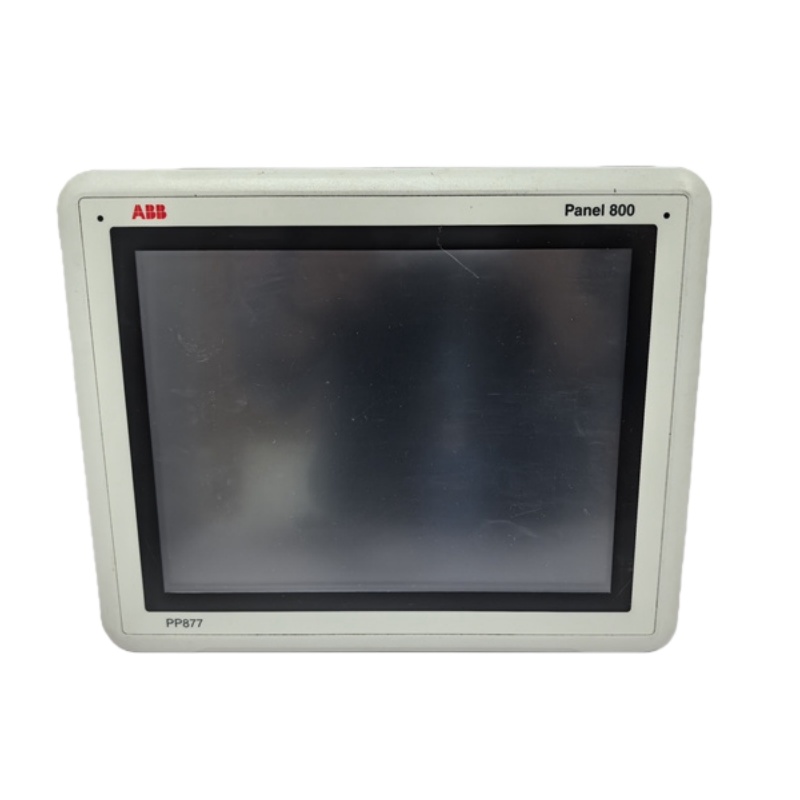

The ABB PP877 3BSE069272R2 is a 10.4-inch touchscreen Human-Machine Interface (HMI) belonging to the ABB Panel 800 series. Engineered specifically for industrial automation, process control, and energy management applications, it features a TFT-LCD display integrated with a durable polyester-coated touch layer. This HMI delivers reliable performance across a wide temperature range of -20 °C to +70 °C and a broad voltage input range of 9–36 VDC.

Key Technical Specifications

• Display Size: 10.4 inches (diagonal), with an active display area of approximately 211.2 × 158.4 mm.
• Resolution & Brightness: 450 cd/m² brightness, equipped with LED backlighting boasting a lifespan of around 50,000 hours.
• Operating Environment: 5%–85% relative humidity (non-condensing); storage temperature ranges from -20 °C to +70 °C.
• Power Supply: 9–36 VDC input with low power consumption.
• Protection Rating: IP65-rated front panel and IP20-rated rear panel, ideal for harsh industrial sites.
• Interfaces: Supports DisplayPort, HDMI (including HDMI 2.0), multiple PCIe Mini cards, and SIM cards, enabling multi-screen display and diverse communication methods.
• Dimensions & Weight: Net dimensions of approximately 51 mm × 280 mm × 228 mm; net weight of around 2.09 kg.

Product Features

1. High Efficiency & Reliability


   Premium components and ABB’s advanced manufacturing processes ensure long-term stable operation in demanding industrial environments.

2. Compact & Durable Design


   Its space-saving form factor and IP65 front-panel protection make it suitable for installation in space-constrained and harsh working sites.

3. Rich Functionalities


   It supports multiple output voltage/current configurations and built-in protection functions (overvoltage, overcurrent, short circuit, etc.), along with flexible I/O expansion capabilities.

4. User-Friendly Interaction


   The 10.4-inch high-brightness touchscreen, combined with the ABB Panel 800 software platform, enables quick deployment of intuitive operator interfaces.

5. Wide Temperature & Voltage Compatibility


   Certain models operate in a temperature range of -40 °C to +55 °C, and all models accept a wide voltage input of 9–36 VDC, adapting to various industrial power supply conditions.

Structure & Components

• Front Panel: Comprises a polyester-coated resistive touch layer, LED backlight, and TFT-LCD display module.
• Main Control Board: Powered by Intel® Core i7/i5/i3 (Skylake) or Celeron processors, paired with the Q170 chipset. It supports DDR4-2133 SO-DIMM memory (up to 32 GB) and PCIe Mini card expansion.
• Power Module: Internally integrated 9–36 VDC input power supply, providing stable internal power for all components.
• Interface Module: Includes DisplayPort, dual HDMI ports, SIM card slot, PCIe Mini card slots, and reserved I/O interfaces, facilitating on-site secondary development.

Typical Application Areas

• Industrial Automation: Monitoring and control of production lines and assembly lines.
• Process Control: Parameter adjustment and real-time display for continuous production processes in chemical, petroleum, pharmaceutical, and other industries.
• Energy Management: Operation monitoring and optimization of power systems and renewable energy systems.
• Machine Vision & Inspection: Integration with external cameras or sensors to achieve on-site inspection and data collection.
