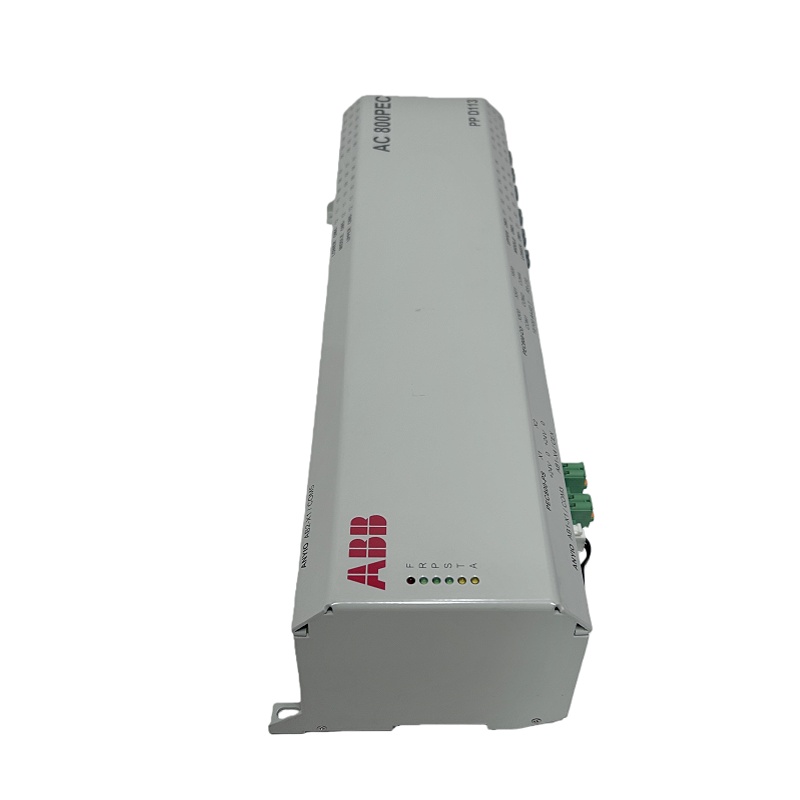

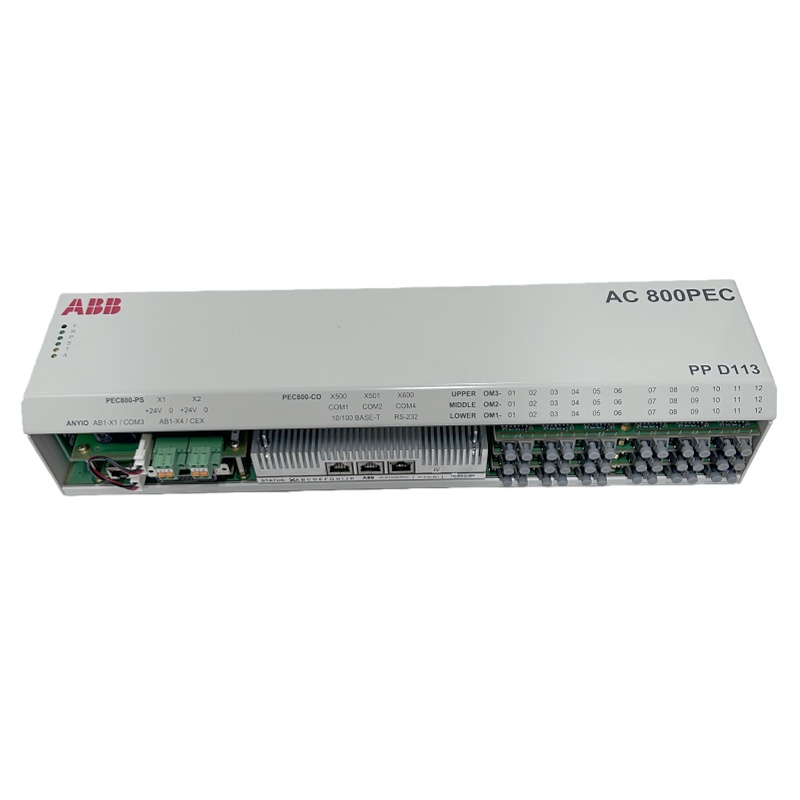

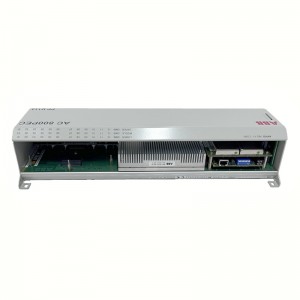

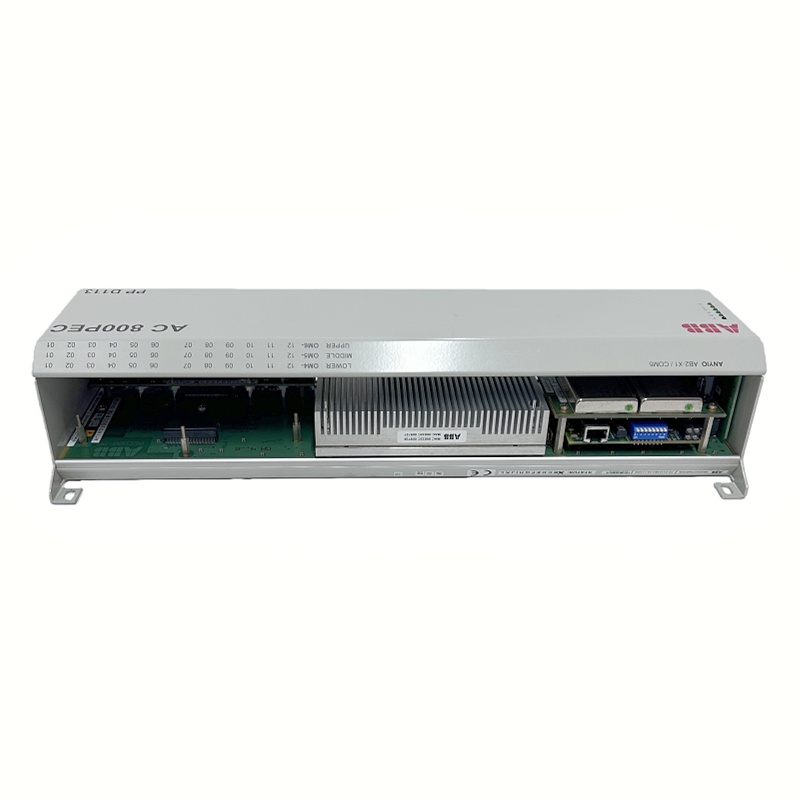

ABB PPD113B01-25-111000 3BHE023784R2530 Core Control Unit
ABB PPD113B01-25-111000 3BHE023784R2530
This module serves as the core control unit of the ABB AC 800 PEC distributed control system (DCS), responsible for overall system control commands, data acquisition, and communication interaction. Featuring a modular design, it can be mounted on standard DIN rails and is suitable for various industrial field environments.
Key Parameters
- Processor: 750 MHz RISC processor integrated with a 64-bit IEEE floating-point unit
- Communication Interfaces: Supports multiple industrial protocols including Modbus, Profibus, Ethernet/IP, and dual-channel AnyIO
- I/O Expansion: Compatible with up to 6 optical modules and a wide range of I/O expansion cards
- Dimensions & Weight: Approximately 450 mm × 145 mm × 100 mm; weight: around 2.5 kg (for DIN rail mounting)
- Operating Temperature: -20 °C to +60 °C, compliant with industrial protection standards
Product Features
- High-performance Control: Robust processing capability enables execution of complex real-time control algorithms, ideal for high-speed motion control and precision process control scenarios.
- Modular Design: Compact structure facilitates on-site expansion, quick replacement, and easy maintenance.
- High Reliability: Utilizes high-quality materials and redundant design to ensure long-term stable operation in harsh industrial environments.
- Flexible Communication: Built-in multi-protocol industrial interfaces support seamless integration with upper-level systems (e.g., ABB Ability™ 800xA) and third-party devices.
- Redundancy & Safety: Equipped with redundant power supplies and file systems to prevent data loss during power outages, meeting the high-reliability requirements of safety control systems.
Structure & Components
- Core Processing Unit: Includes CPU, memory, and floating-point arithmetic unit
- Communication Module: Interfaces for Modbus, Profibus, Ethernet/IP, and AnyIO
- I/O Expansion Slots: Supports up to 6 optical modules and various universal I/O cards
- Power Supply Module: IEC-compliant industrial power supply providing regulated voltage output
- Chassis & Heat Dissipation System: Metal enclosure with internal heat sinks, fully compliant with DIN rail mounting specifications
Typical Application Fields
- Process Control: Continuous production processes in chemical, petroleum, natural gas, and pharmaceutical industries
- Energy Management: Power generation, excitation control of synchronous generators in power plants, and distribution automation
- Manufacturing Automation: Machinery manufacturing, assembly lines, and robotic systems
- Building & Facility Management: Large-scale building automation and heating, ventilation, and air conditioning (HVAC) systems
- Transportation & Rail Systems: Railway signaling and metro automation control
Installation & Maintenance Guidelines
On-site Preparation
Ensure the temperature and humidity inside the cabinet meet the operating range; provide reliable power supply grounding.
Mechanical Installation
Mount on standard DIN rails and secure with the included screws; check thread tightness to prevent loosening due to vibration.
Electrical Wiring
Connect power supply, communication buses, and I/O modules in accordance with the product manual, using IEC-compliant terminal blocks.
Software Configuration
Perform hardware mapping, parameter setting, and network configuration via ABB 800xA or corresponding engineering tools.
Commissioning & Acceptance
Execute self-tests, communication tests, and function verification; record key parameters for future maintenance.
Routine Maintenance
Regularly inspect heat sinks for dust accumulation and connection terminals for loosening; conduct a full functional verification and firmware upgrade annually.
Fault Diagnosis
Leverage built-in diagnostic functions and log files for rapid fault localization; hot-swapping is supported during module replacement if necessary, minimizing downtime.
————————————————————————————————————-
