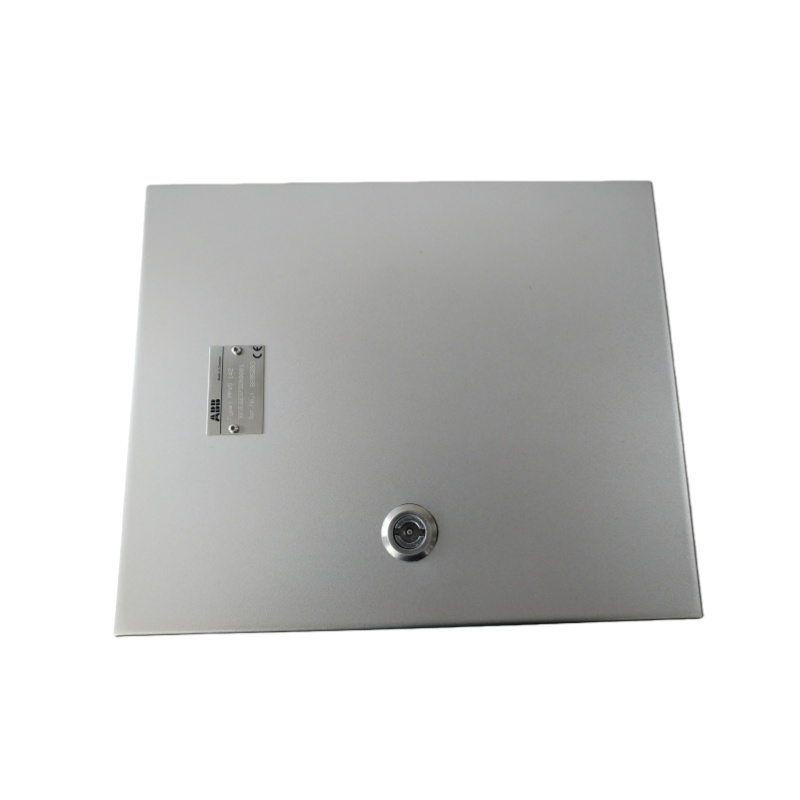

ABB PFVO142 3BSE023732R0001

PFVO142 3BSE023732R0001 is a high-performance Variable Frequency Drive (VFD) manufactured by ABB, designed specifically for speed and torque control of AC motors. It is suitable for a wide range of applications including industrial automation, machine tools, cranes, and packaging machinery. Adhering to ABB’s stringent quality standards, the product holds certifications such as CE and ATEX, and ensures reliable operation in ambient temperatures ranging from -10 °C to +40 °C.

Key Technical Specifications

• Rated Power: 2.2 kW
• Rated Voltage: 380 V AC
• Rated Current: 5.8 A
• Output Frequency Range: 0.5 Hz – 400 Hz (Speed Regulation Range: 0 – 1500 rpm)
• Overload Capacity: 150% for 1 minute
• Efficiency: > 95%
• Protection Class: IP20
• Operating Temperature: -10 °C – +40 °C
• Dimensions: Approximately 300 mm × 180 mm × 130 mm
• Weight: 7 – 9 kg

Product Features

• High-Precision Control: Delivers speed regulation accuracy of ±0.5%, meeting the stringent requirements of complex industrial processes.
• Wide Speed Regulation Range: Starts at 0.5 Hz and reaches up to 400 Hz, covering the full spectrum from low-speed startup to high-speed operation.
• Superior Reliability: Constructed with corrosion-resistant materials and vibration-resistant design. Compliant with CE, ATEX and other safety certifications, it is well-suited for harsh industrial environments.
• User-Friendly Operation: Features a modular structure, accompanied by detailed installation manuals and maintenance guides, minimizing on-site commissioning and daily maintenance costs.
• Multi-Protocol Compatibility: Built-in fieldbus interfaces including PROFIBUS DP, Modbus RTU and HART, facilitating seamless integration with upper-level control systems.

Structure and Components

1. Power Module: Responsible for rectification, filtering and voltage stabilization, providing a stable power supply for internal circuits.
2. Central Processing Unit (CPU): Runs control algorithms, processes input signals and generates PWM outputs.
3. Power Module: Equipped with IGBT/IGBT-MOSFET switching devices to achieve high-efficiency inverter output.
4. Communication Interfaces: Includes fieldbus ports such as PROFIBUS DP and Modbus RTU for data exchange with PLCs and upper-level stations.
5. Heat Dissipation System: Combines metal heat sinks with forced air cooling to ensure effective thermal management during long-term operation.

Typical Application Fields

• Industrial Automation: Speed control of continuous operation equipment such as conveyors, fans and pumps.
• Machine Tools: Precise control of feed axes and spindles to enhance machining accuracy.
• Cranes: Smooth speed regulation of lifting and traveling motors.
• Packaging Machinery: Synchronous control of moving components in packaging lines.

Installation and Maintenance Guidelines

• On-Site Layout: Adopts compact cabinet-type installation with sufficient ventilation space reserved. Vertical or horizontal installation is acceptable, provided that the heat sinks are not blocked.
• Wiring: Power cables, output cables and communication cables shall use shielded cables compliant with IEC standards to ensure reliable grounding.
• Commissioning: Inspect all wiring, fuses and grounding connections before initial power-on. Use ABB’s dedicated VFD parameter software (e.g., DriveComposer) for parameter configuration and function testing.
• Daily Maintenance: Regularly check and clean dust accumulation on heat sinks and fans; conduct insulation resistance measurement every six months; refer to the attached troubleshooting manual for quick fault location when error codes appear.
• Spare Parts Management: Key components (e.g., IGBT modules, fans) can be replaced individually, reducing overall equipment downtime.
