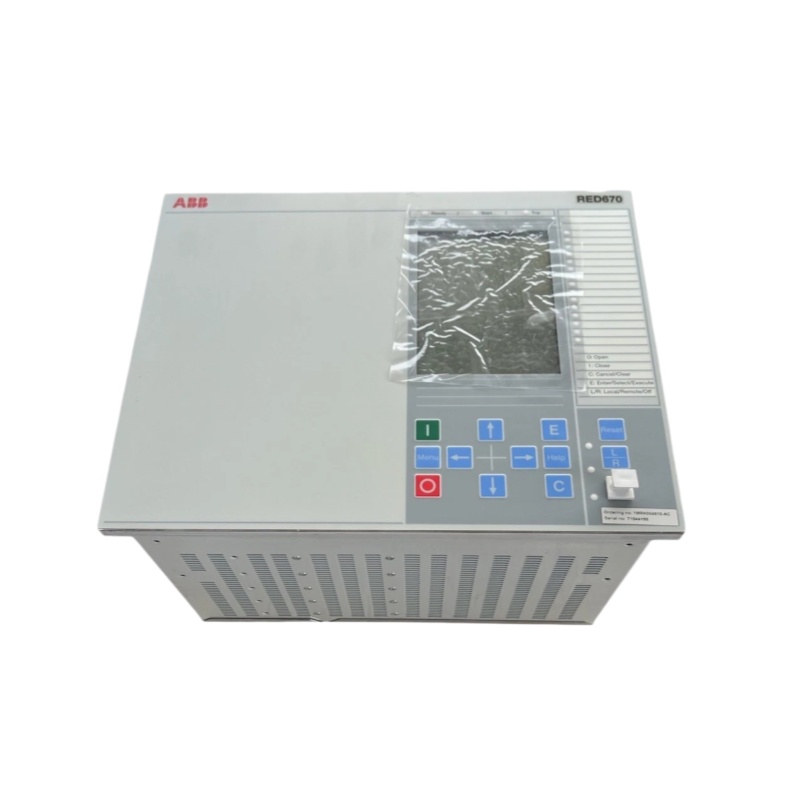

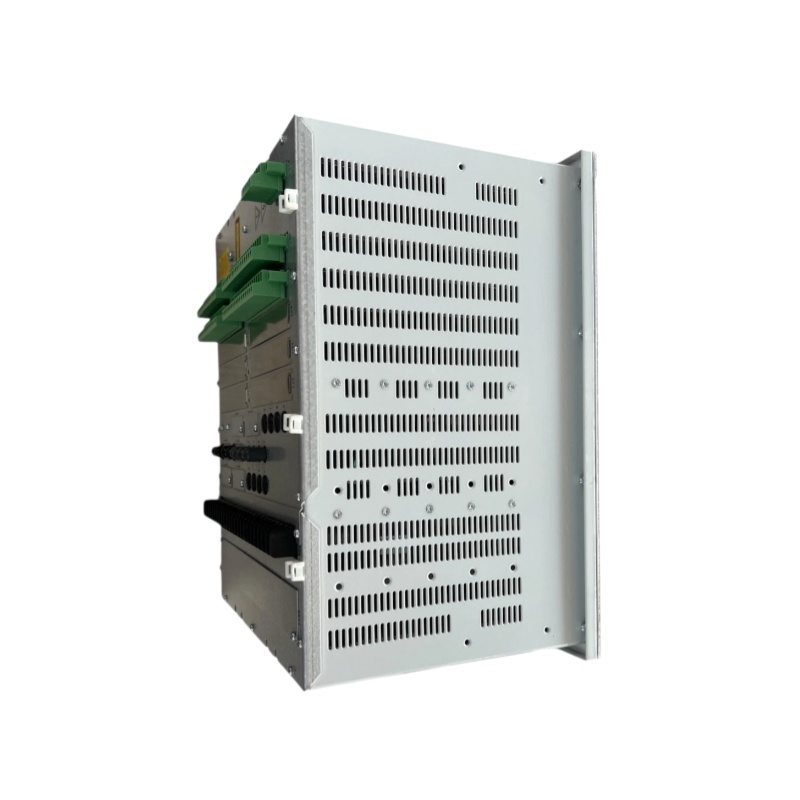

ABB RED670 LINE DIFFERENTIAL protection device
ABB RED670 LINE DIFFERENTIAL
1. Product Overview
2. Main Technical Parameters
|
Parameter Item
|
Specification Value
|
|---|---|
|
Rated Voltage
|
Up to 765 kV (Standard 400 kV)
|
|
Rated Current
|
Up to 5000 A (Maximum 6300 A)
|
|
Protection Accuracy
|
0.2%
|
|
Operating Temperature
|
-40°C to +70°C (Some models can reach +85°C)
|
|
Humidity
|
5% – 95% RH
|
|
Dimensions
|
230 mm × 160 mm × 100 mm (4U, 19-inch rack-mounted)
|
|
Weight
|
3.5 kg – 6 kg
|
|
Power Supply Mode
|
DC 24V-250V, AC 100V-250V
|
|
Protection Level
|
IP20
|
|
Depth
|
220 mm
|
|
Communication Interface
|
2× Fiber Optic Ethernet (100BASE-FX)Supports IEC 61850-8-1 (GOOSE), IEC 61850-9-2 (SV)Supports IEC 60870-5-103 (Optional)Data transmission supports dual-channel redundancy (dedicated optical fiber or multiplexed PCM)
|
3. Product Features
Core Protection Functions
- Phase-Segregated Current Differential Protection: Can handle 2-5 line terminals with phase selection capability
- Distance Protection: Four-zone distance protection, supporting phase selection and power swing detection
- Overcurrent Protection: Multifunctional overcurrent protection and thermal overload function
- Earth Fault Protection: High-impedance earth fault detection with high sensitivity
- Transformer Differential Protection: Can include two-winding or three-winding transformers
Technical Advantages
- High Sensitivity: Provides high-sensitivity protection for high-resistance faults
- Strong Anti-Interference Ability: Adopts advanced digital signal processing technology, ensuring stable operation in harsh electromagnetic environments
- Inrush Current Detection: Automatically detects transformer inrush current to ensure correct operation of differential protection
- Harmonic Suppression: 2nd and 5th harmonic suppression functions to improve protection reliability
- Pre-configuration: Factory pre-configuration, type test, and default parameter settings for quick commissioning
- Network Security: Equipped with network security features, complying with industrial security standards
4. Application Fields
Applicable Scenarios
- Overhead Lines: Transmission overhead lines of all voltage levels
- Underground Cables: High-voltage cable line protection
- Power Plants: Generator and transformer unit protection
- Substations: Substation feeder and main transformer protection
- Transformer Feeders: Supports two-winding and three-winding transformer configurations
Network Configuration
- Single-phase or three-phase tripping configuration
- Single-breaker or multi-breaker arrangement
- Single-ended, double-ended or multi-ended lines (up to 5 terminals)
5. Installation and Maintenance
Installation Requirements
- Installed in a standard 19-inch cabinet with a depth of 220mm
- Operating environment temperature: -40°C to +70°C
- Humidity: 5% – 95% RH (no condensation)
- Power supply: DC 24-250V or AC 100-250V
- Communication optical fiber: 100BASE-FX optical fiber interface
————————————————————————————————————-
