ABB REF541KM115AAA

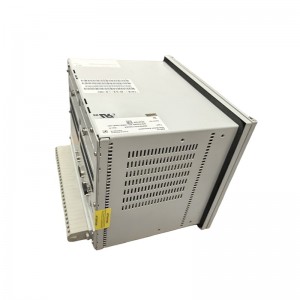

The ABB REF541KM115AAA is a high-precision modular power/control device belonging to the ABB REF541 series. Engineered specifically for industrial automation, power distribution, and electrical systems, it delivers reliable electrical performance and flexible communication interfaces, ensuring seamless operation even in harsh field environments.

2. Key Specifications

• Rated Voltage: 3-phase AC 50/60 Hz, 6 kV–17 kV
• Rated Current: 5 A–125 A
• Protection Class: IP40 / IP54
• Dimensions: Approx. 100 mm × 100 mm × 50 mm
• Communication Protocols: Supports multiple industrial protocols including Modbus, IEC 60870-5-3, and DNP3
• Operating Temperature Range: -40 °C to 70 °C

3. Product Features

• High Precision & Reliability: Adopts ABB’s advanced modular design to guarantee accuracy in measurement and control processes.
• Flexible Installation & Maintenance: Modular architecture enables rapid on-site assembly, replacement, and upkeep, reducing downtime.
• Multi-Protocol Compatibility: Integrates with major industrial communication protocols to facilitate seamless system integration.
• Robust & Durable: With IP40/IP54 protection ratings, it is built to withstand harsh industrial operating conditions.

4. Structure & Components

• Main Unit Module: Integrates power supply, processor, and core control circuits.
• Communication Interface Board: Provides interfaces for Modbus, IEC 60870-5-3, DNP3, and other protocols.

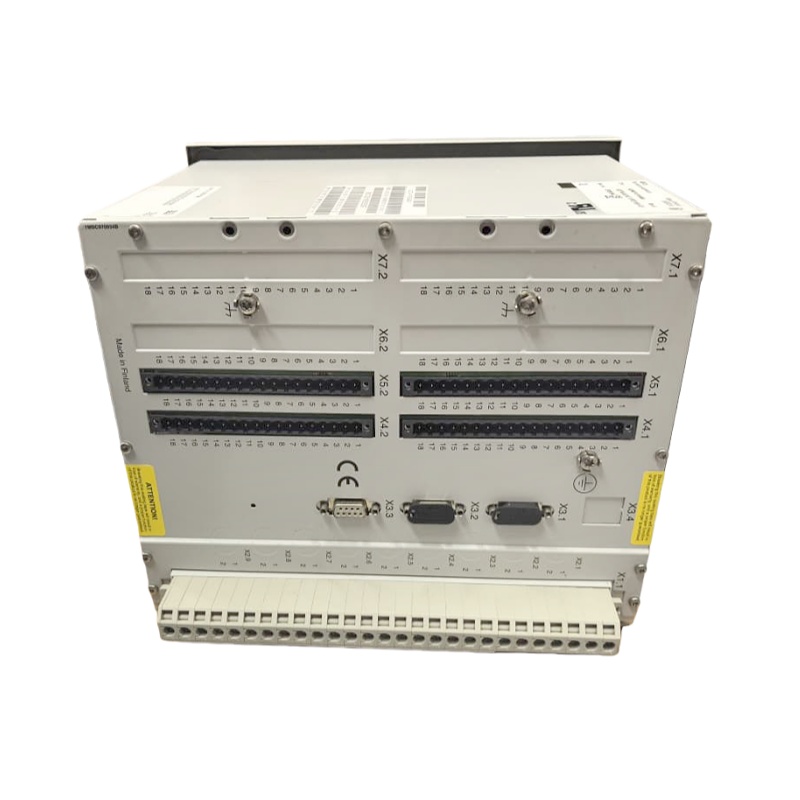

• Terminal Block: Used for wiring of power supply, signal, and control circuits.
• Mounting Bracket: Supports DIN rail or wall-mounted installation for flexible on-site layout.

5. Application Areas

• Industrial Automation Control Systems: Such as production lines and robot control systems.
• Power Distribution Automation: Monitoring and protection of substations and switchgear cabinets.
• Electrical Power Systems: Grid monitoring, load management, and remote control applications.
• Other Scenarios Requiring High-Reliability Electrical Control.

6. Installation & Maintenance

• Installation Methods: Supports DIN rail mounting, wall mounting, or cabinet embedding, with flexible selection based on on-site requirements.
• Wiring Guidelines: Follow the product manual for correct wiring of power supply, signal, and communication cables to ensure compliance with protection class standards.
• Commissioning Steps: Perform self-test after power-on, configure communication parameters, and complete on-site functional testing.
• Maintenance Key Points: Regularly inspect wiring tightness, clean accumulated dust, monitor temperature and current levels. Replace modular components when necessary to minimize equipment downtime.
