ABB ROFBU 367 113-1-R1B

1. Overview

2. Technical Parameters

• Operating Voltage: 24V DC (referencing ABB SDCS-REB-1C interface card)
• Operating Temperature Range: -40°C to +85°C
• Ingress Protection Rating: IP67
• Certification Standards: CE, RoHS
• Transmission Rate: 10Mbps

3. Product Features

• High Reliability: Adopting advanced signal processing technology, the interface card ensures stable operation under harsh industrial environmental conditions.
• Modular Design: The modular structure facilitates flexible system configuration and functional expansion for users.
• Self-Diagnosis Function: Equipped with comprehensive fault handling mechanisms to effectively improve overall system stability and operational reliability.
• Multi-Protocol Support: Compatible with multiple communication protocols and data formats to meet diverse interface connection requirements.
• Long-Term Supply Support: First put into production in 2012, the product has maintained continuous availability in the global supply chain to date.

4. Structure and Composition

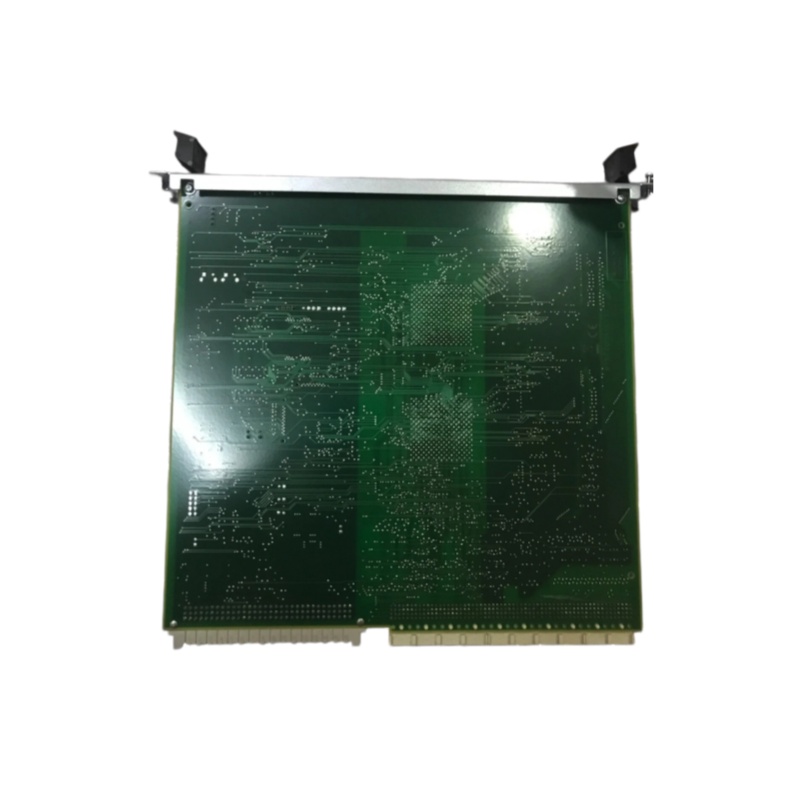

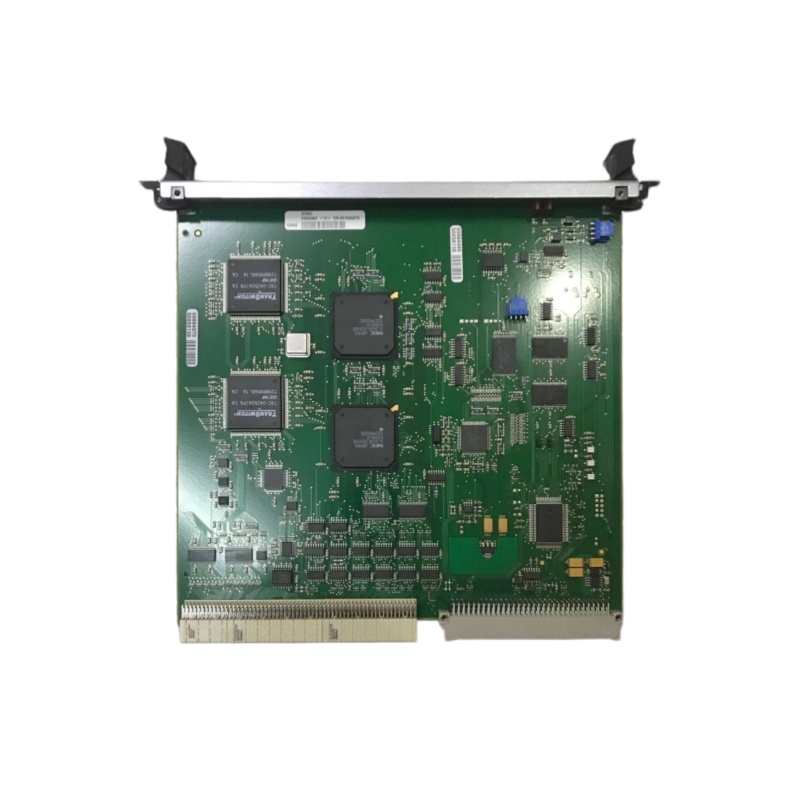

• Product Form: PCB Circuit Board / Hardware Interface Card
• Product Code: ROFBU 367 113/1-R1B 2012W49/2017W02
• Associated System: ABB KEYMILE Synac 120771
• Series Classification: Belongs to the ROFBU 367 series, sharing the same product family with COBUX-HW, COBUV-HW, LOMI4-HW and other ABB interface cards

5. Application Fields

5.1 Core Application Scenarios

• Process Control: Connects sensors, actuators and other on-site equipment in process control systems to realize automatic control of industrial production processes.
• Machine Control: Matches with machine control system equipment to complete precise control of mechanical and automated equipment.
• Data Acquisition and Monitoring: Connects on-site sensors and instruments to realize real-time data collection, transmission and equipment operation monitoring.

5.2 Target Industries

• Power Industry (Substation Control)
• Chemical Industry
• Petroleum and Natural Gas Industry
• Railway Communication System
• Energy Power Grid
• Manufacturing Industry
• Public Management Sectors

6. Installation and Maintenance

6.1 Installation Precautions

• The industrial control interface card must be installed by professional and technical personnel.
• Strict electrostatic protection measures shall be implemented during the installation process to avoid static damage to electronic components.
• Ensure accurate electrical connection and professional communication parameter configuration.

6.2 Maintenance Recommendations

• Regular Inspection: Periodically check equipment connection status and real-time operating conditions.
• Cleaning Maintenance: Regularly clean the interface card and PCB board to keep the equipment dust-free and well-ventilated.
• Configuration Backup: Timely back up system configuration data to prevent data loss.
• Fault Replacement: Replace faulty modules promptly once equipment abnormalities are detected.
• Environmental Management: Ensure the operating environment complies with the product’s specified temperature, humidity and other environmental requirements.
