ABB 23BA20 Output Module
ABB 23BA20
1. Overview
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Product Model
|
23BA20
|
|
Order Number
|
GSNE000700R5312 / 1KGT150403
|
|
Number of Output Relays
|
16 channels (K01-K16)
|
|
Output Grouping
|
Two groups of 8 contacts with common return terminals for each group
|
|
Process Voltage
|
24V DC / 48V DC / 60V DC
|
|
Communication Interface
|
RTU Peripheral Bus
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Ingress Protection Rating
|
IP20 (for installation inside control cabinets)
|
3. Product Features
- 16-Channel Relay Output: Equipped with 16 independent relay output channels, supporting single-pole and double-pole output configurations to meet diverse control requirements.
- On-Board Self-Diagnosis Function: The module can monitor and inspect its own operational status and the communication status of the peripheral bus in real time, ensuring stable system operation.
- No Configuration Required: Plug-and-play design without any parameter setting or software configuration, simplifying deployment and commissioning work.

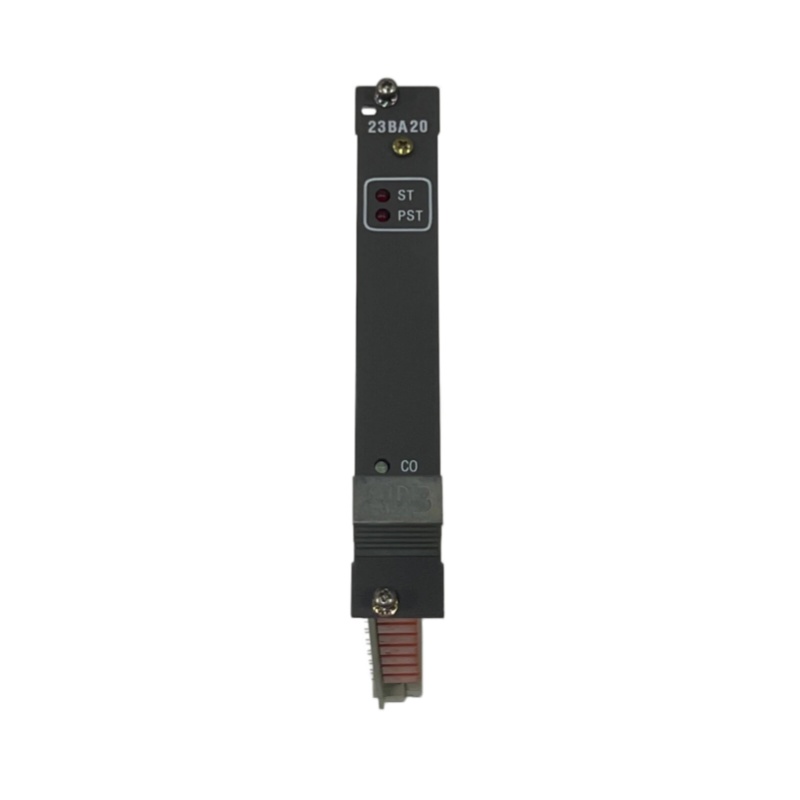

- Clear Status Indication: The front panel is equipped with three LED indicators, including ST (operating status), PST (power status), and CO (control output), enabling intuitive status observation.
- Dual Power Return Design: The two sets of output groups can be connected to different process voltage sources, improving system flexibility and operational reliability.
4. Structure and Composition
4.1 Core Control Module
- Microcontroller
- RAM Memory
- EPROM Program Memory
- EAP (Extended Application Processor)

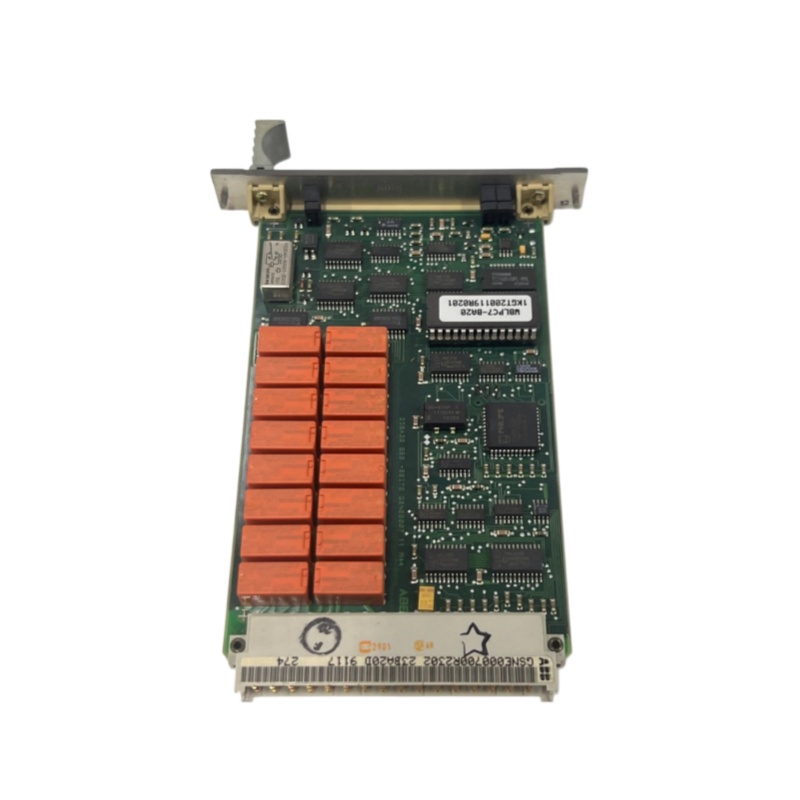

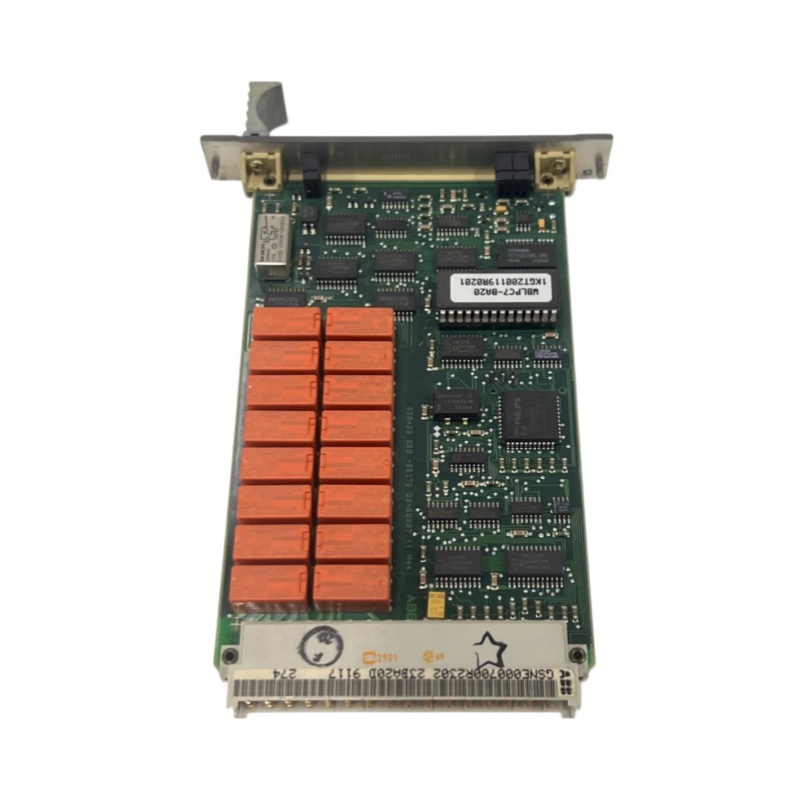

4.2 Output Relay Module
- 16 output relays (K01 to K16)
- Dual-group output ports (W01, W02)

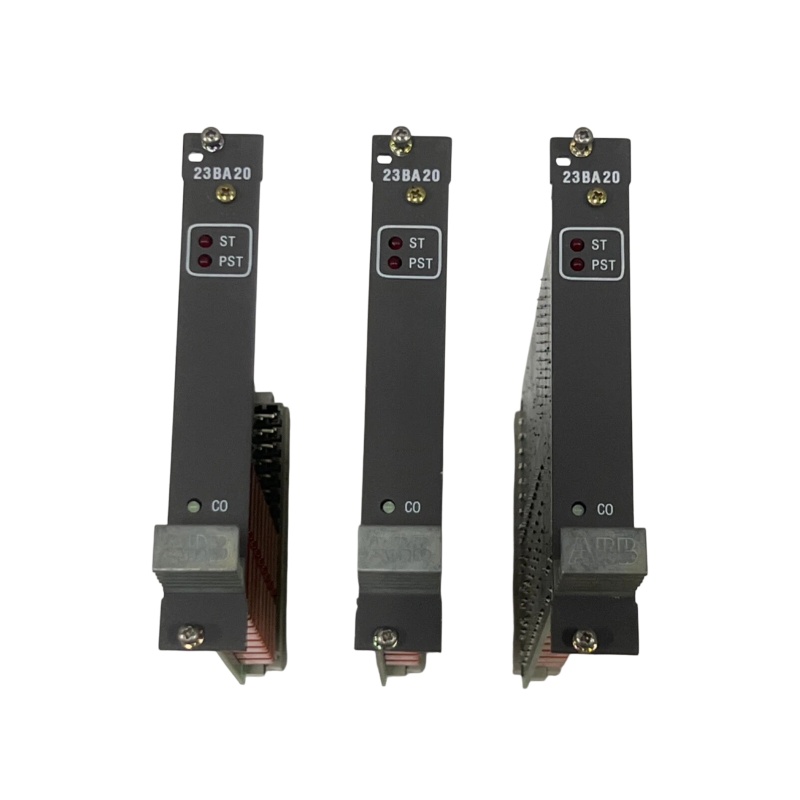

4.3 Front Panel Components
- ST operating indicator light
- PST power status indicator light
- CO control output indicator light
- Brand identification label
5. Application Fields
5.1 Power System Automation
- Power plant automatic control (boiler, steam turbine, generator excitation and speed regulation system)
- Substation automation and power distribution system applications
- Power grid monitoring (high-voltage switchgear monitoring)
5.2 Industrial Automation
- Oil and gas pipeline network monitoring
- Water conservancy telemetry and remote control systems
- Renewable energy station operation monitoring (wind farm and solar power station)
5.3 Environmental Protection Monitoring
- Process monitoring of water treatment in waterworks
- Ambient air quality and water quality environmental monitoring
6. Installation and Maintenance
6.1 Installation Requirements
Installation Method
Environmental Conditions
- Operating Temperature: -25°C to +70°C
- Ingress Protection Rating: IP20 (applicable for indoor installation inside control cabinets)
6.2 Power Connection
- Output Relay Power Supply: 24V DC
- Process Voltage: 24/48/60V DC (selectable according to actual application scenarios)
- Configurable redundant power supply: Two power units can operate in parallel to realize power redundancy and enhance system stability
————————————————————————————————————-
