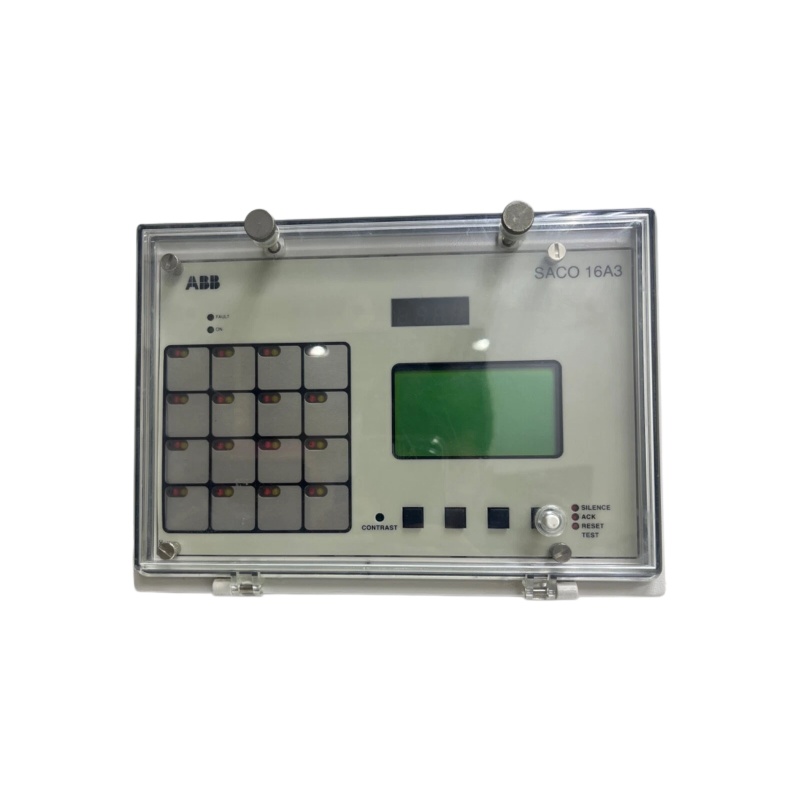

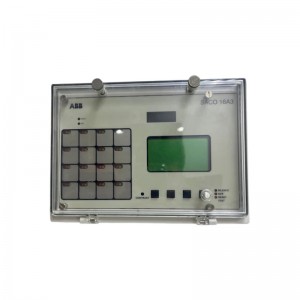

ABB SACO 16A3 Alarm Unit
ABB SACO 16A3
1. Product Overview
2. Core Parameters
2.1 Input Channels and Signal Types
- Number of Channels: 16 analog input channels
-
Supported Signal Types:
- Voltage Signals: 0-5V, 1-5V, 0-10V, 2-10V
- Temperature Sensors: Pt100, Pt250, Pt1000, Ni100, Ni120, Ni250, Ni1000 (multiple ranges available, -45°C to +600°C)
- Resistance Signals: 0-200Ω to 0-10kΩ
- Adjustable Potentiometer Input
2.2 Electrical Characteristics
- Test Voltage: Between power input and housing, between relay output and housing, between power input and relay output: 1kV (1MHz)
- Dielectric Test Voltage: 2kV, 50Hz, 1 minute
- Pulse Test Voltage: 5kV, 1.2/50μs, 0.5J
- High-Frequency Test Voltage: 2.5kV, 1MHz
2.3 Environmental Conditions
- Operating Temperature: -10°C to +55°C (without matrix display); -10°C to +45°C (with matrix display)
- Long-Term Humidity Tolerance: <95%, +40°C, 56 days
- Transportation and Storage Temperature: -20°C to +55°C
- Protection Level: IP54 (panel mounting)
3. Product Features
- Modular Design: Supports European card-type pluggable modules for easy maintenance.
- Signal Filtering: Built-in median filter to suppress power grid interference (supports 50Hz/60Hz programming).
- Configurable Parameters: Multiple parameters can be set via the display screen or serial port, including filtering time (300ms/1s/5s), alarm threshold, delay, etc.
- Open Standards: Easy integration with other systems, supporting a variety of communication protocols.
4. Structure and Composition
- Power Module: SPGU240A1 or SPGU48B2
- Analog Input Module: SWAM 16A1
- Processing Module: SWPM 4A1 + Display Module SWDM 4A1
- Input/Output Module: SWOM 8A1
- Connection Module: SWCM 10A1 (one side connects to the pluggable unit, the other side connects to the cable via screw terminals)
5. Application Fields
- Manufacturing Industry: Production line monitoring and alarming
- Power Generation Industry: Power plant equipment status monitoring
- Building Automation: HVAC system monitoring
- Transportation Field: Rail transit equipment monitoring
6. Installation and Maintenance
6.1 Installation Points
- Panel mounting with IP54 protection level
- Adopts European card slot type guide rail installation method
- Power supply, input and output modules are connected separately to avoid interference
6.2 Daily Maintenance
- Regularly check the tightness of the terminal blocks
- Clean the surface of the device and keep it well-ventilated
- Regularly calibrate the input accuracy of the sensor
- Pay attention to the control of ambient temperature and humidity
————————————————————————————————————-
