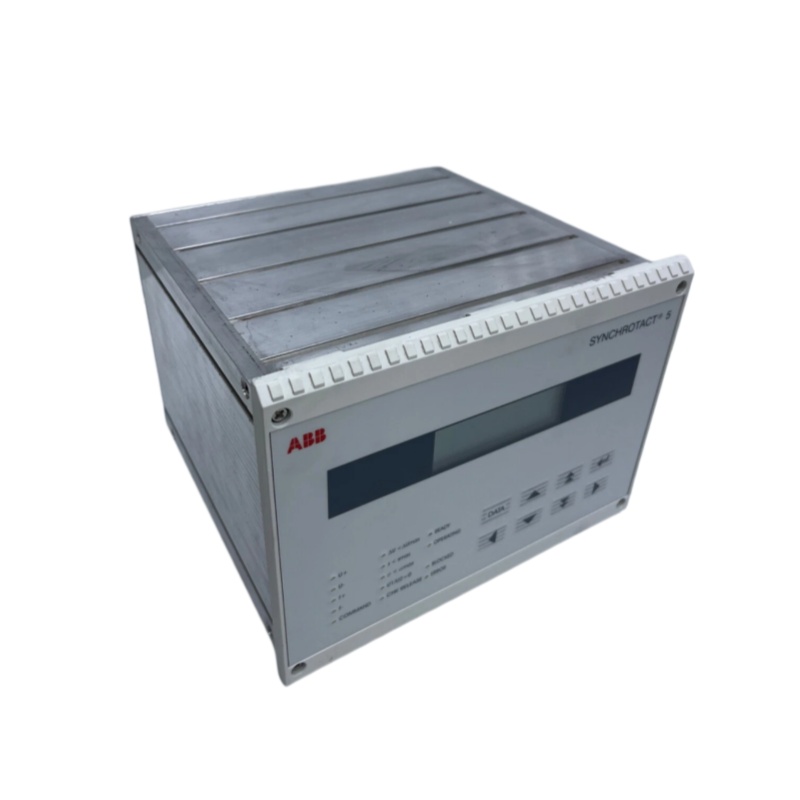

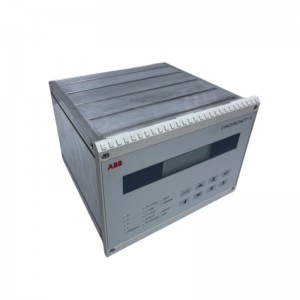

ABB SYNCHROTACT 3BHB006715R0271 Control Unit
ABB SYNCHROTACT 3BHB006715R0271
1. Product Overview
2. Main Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Rated Frequency
|
45Hz – 65Hz (50Hz Standard)
|
|
Operating Temperature
|
-25℃ to +70℃
|
|
Auxiliary Voltage
|
24-250 VDC / 100-230 VAC
|
|
Measuring Input Voltage
|
50-130 VAC
|
|
Digital Input Voltage
|
24/48 VDC
|
|
Measurement Accuracy
|
0.01°
|
|
Response Time
|
≤50ms
|
|
Protection Level
|
IP20
|
3. Product Features
- Two-channel Design: Equipped with two independent synchronization channels, one for automatic synchronization and the other for independent monitoring of synchronization operations.
- Redundant Design: Two parallel device configurations, where one can take over the function if the other fails.
- Automatic Synchronization: Automatically completes the synchronization process, reducing manual operations and improving efficiency.
- High Reliability: Adopts industrial-grade design with multiple protection functions such as overload protection and short-circuit protection.
- Anti-misparallelism: The device is designed to prevent incorrect paralleling, ensuring synchronization between generators and the power grid.
- Multi-parameter Setting: Up to 20 different circuit breaker parameters can be set.
4. Structure and Composition
- Voltage Measurement Module: Measures system voltage.
- Frequency Measurement Module: Measures system frequency.
- Phase Difference Calculation Module: Calculates voltage phase difference.
- Synchronization Control Module: Controls the closing timing of circuit breakers.
- Communication Interface Module: Supports serial port, Ethernet, and optical port communication.
- Digital Input/Output Module: Used for status monitoring and control signals.
5. Application Fields
|
Application Field
|
Specific Application
|
|---|---|
|
Power Plants
|
Synchronization and grid connection of synchronous generators
|
|
Power Distribution Systems
|
Standby power supply synchronization
|
|
Industrial Automation
|
Motor drive system synchronization
|
|
Petrochemical Industry
|
Synchronization control of factory power systems
|
|
Transportation
|
Railway signals, port automation systems
|
|
Building Automation
|
Intelligent building power system management
|
6. Installation and Maintenance
6.1 Installation Methods
- DIN rail installation
- Panel installation
6.2 Notes
- Before installation, confirm that the auxiliary power voltage is within the allowable range (18-300 VDC, 75-300 VAC).
- Ensure good ventilation and that the operating temperature is within the allowable range.
- Follow electrical safety specifications when wiring.
6.3 Maintenance Recommendations
- Regularly check whether the wiring is loose.
- Clean dust on the device surface.
- Perform regular function tests.
- Check that the status indicator lights work normally.
————————————————————————————————————-
