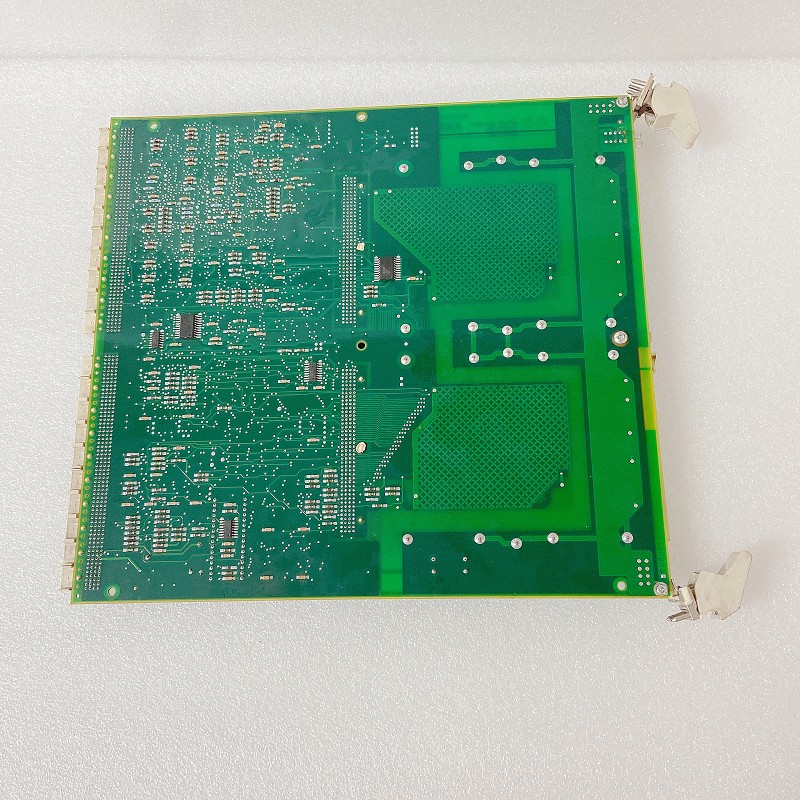

ABB SC510 3BSE003832R1

1. Overview

The ABB SC510 3BSE003832R1 is a CPU-less submodule carrier designed for the ABB Advant OCS controller. While it does not include a processor, it can host various submodules (e.g., I/O modules, communication modules) to expand the controller’s functionality, enabling more complex control tasks. This module is widely used in industrial automation systems for applications such as logic control, data acquisition, and signal conversion.

2. Technical Parameters

• Power Supply Voltage: 24 V DC (some models support 100–240 V AC input)
• Power Consumption: 5 W (typical)
• Operating Temperature Range: -20°C to 55°C (some models support -40°C to 70°C or -40°C to 80°C)
• Protection Rating: IP20 (some models support IP65 or IP67)
• Dimensions: 115 × 65 × 23 mm (some models measure 120 × 40 × 150 mm or 80 × 45 × 22 mm)
• Weight: 0.24 kg (some models weigh 0.6 kg or 0.67 kg)
• Mounting Method: DIN rail mounting (some models support 19-inch rack mounting)
• Communication Interfaces: RS-232, RS-485, Modbus RTU, etc.
• I/O Points: Some models support 16 digital input points and 16 digital output points
• Rated Current: Some models support 40 A (for solid-state relay modules)

3. Key Features

• Modular Design: Supports flexible installation and replacement of submodules for easy system expansion and maintenance.
• High Reliability: Built with industrial-grade components, ensuring stable operation in harsh environments.
• Strong Compatibility: Integrates seamlessly with the ABB Advant OCS system and multiple communication protocols (e.g., RS-232, RS-485, Modbus RTU).
• Easy Installation & Configuration: Simplified setup for rapid deployment.
• Versatile Signal Processing: Some models support analog signal conversion, digital signal processing, filtering, and linearization.
• Safety Standards: Complies with EMC Class 4, with each serial port featuring ±15 kV ESD protection.

4. Structure and Components

The ABB SC510 3BSE003832R1 consists of the following key components:

• Main Frame: Constructed from aluminum alloy or high-strength materials for durability and impact resistance.
• Submodule Slots: Equipped with 4 or more slots for installing I/O modules, communication modules, etc.
• Backplane Connector: Facilitates connections with the controller or other modules.
• Power Interface: Supports 24 V DC or AC power input.
• Communication Ports: Compatible with RS-232, RS-485, Modbus RTU, etc.
• Control Circuitry: Includes power management, signal processing, and communication control circuits.

5. Applications

The ABB SC510 3BSE003832R1 is widely used in the following industries and scenarios:

• Industrial Automation: Process control, discrete control, drive control, and data acquisition.
• Power Systems: Variable-frequency control, motor control, and HVAC system control.
• Energy & Chemicals: Automation in oil, gas, chemical, and power generation industries.
• Water Treatment: Control and monitoring of water treatment equipment.
• Metal Processing: Automation for machine tools and manufacturing equipment.
• Building Automation: Control of lighting, HVAC, and security systems.
• Marine & Aerospace: Automation systems for ships and aircraft.

6. Installation & Maintenance

Installation Methods

• DIN Rail Mounting: Ideal for standard control cabinets.
• 19-Inch Rack Mounting: Suitable for large-scale industrial control systems.
• Direct Mounting: Some models support direct installation in control panels.

Installation Steps

1. Verify power voltage and load compatibility.
2. Mount the module on a DIN rail or rack slot.
3. Connect communication cables and power lines.
4. Install and configure submodules.

Maintenance Guidelines

• Regularly inspect connections and submodule seating.
• Clean the housing and ventilation slots to prevent dust buildup.
• Monitor power voltage and current to ensure they remain within rated limits.
• Replace damaged submodules or interface modules.
• Use ABB diagnostic tools for system monitoring and troubleshooting.

———————————————————————————————————————————
