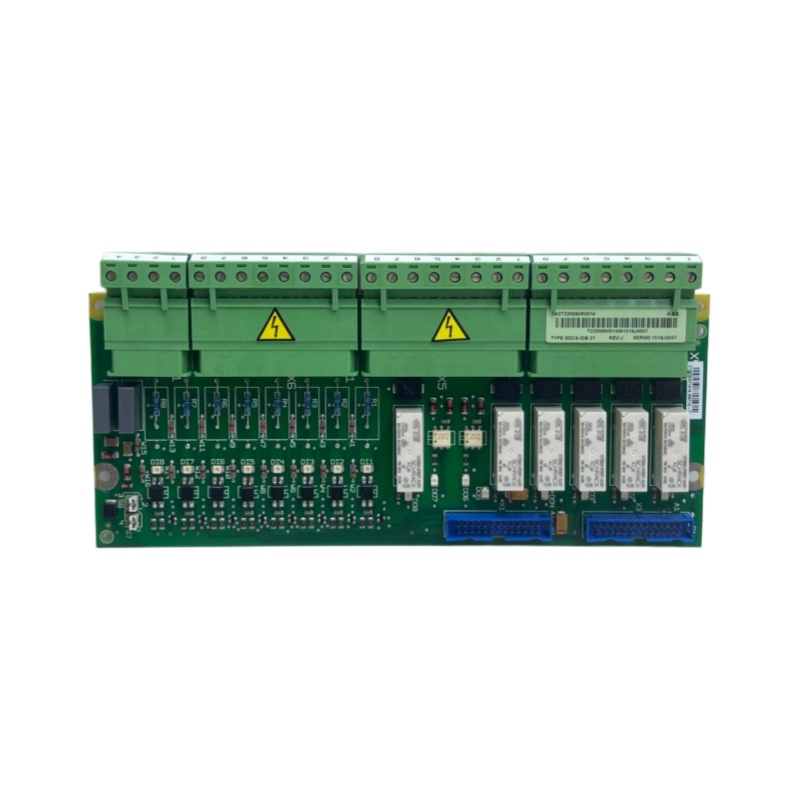

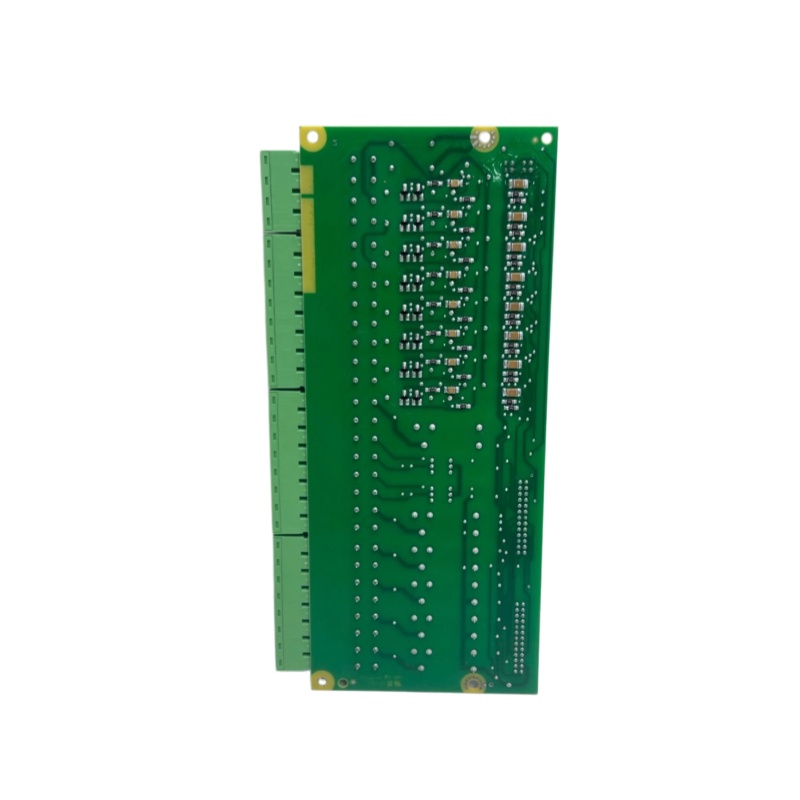

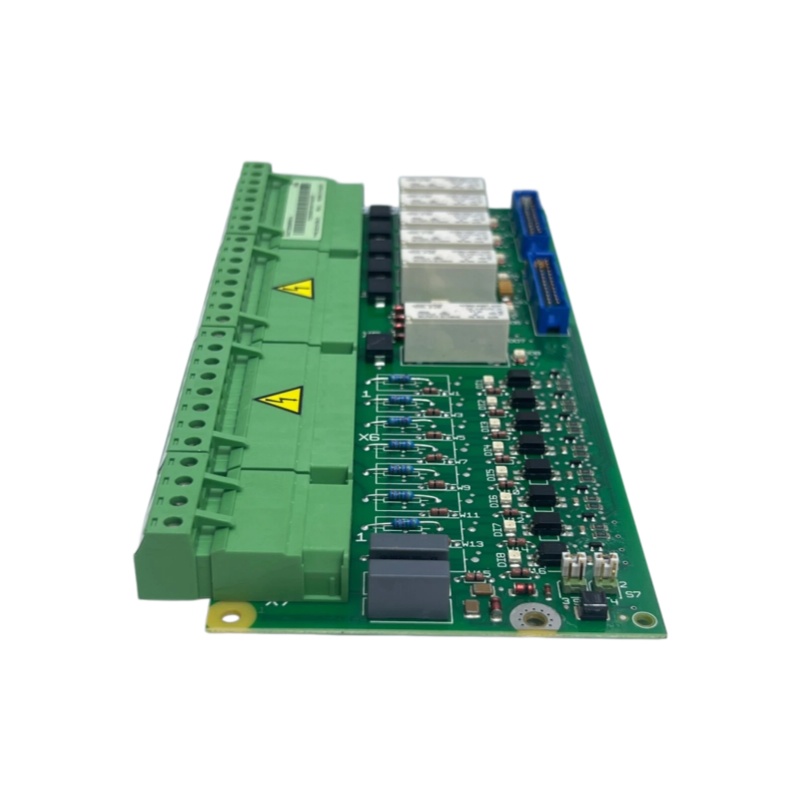

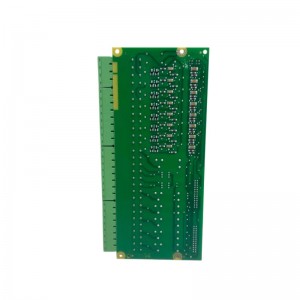

ABB SDCS-IOB-21 3ADT220090R0014 Isolated Digital Board
ABB SDCS-IOB-21
1. Product Overview
The ABB SDCS-IOB-21 (Model Codes: 3ADT220090R0014 / 3BSE005176R1) is an externally isolated digital board belonging to the ABB SDCS (Smart Device Communication System) series. As a core component of ABB Distributed Control System (DCS), it is designed to connect field devices and control systems, enabling efficient data acquisition and control signal transmission for industrial automation scenarios.
2. Product Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Product Type
|
Externally Isolated Digital Input/Output Module
|
|
Operating Voltage
|
24VDC / 48VDC
|
|
Product Weight
|
0.34kg
|
|
Origin
|
Sweden
|
|
Communication Protocol
|
DeviceNet (Supports baud rates of 125kbps, 250kbps and 500kbps)
|
|
Network Nodes
|
Maximum 64 nodes supported
|
|
Communication Interface
|
DeviceNet bus with independent power supply support
|
|
Product Version
|
REV.D / REV.F
|
3. Product Features
High Reliability Design – Engineered specifically for industrial applications with a robust structure, ensuring stable operation in harsh industrial environments.
Electrical Isolation – Adopts an external isolation digital board structure to provide safe and reliable signal isolation, effectively avoiding signal interference and equipment damage risks.
Excellent Communication Performance – Supports the standard DeviceNet serial communication protocol, which simplifies on-site wiring, reduces wiring costs, and integrates device-level diagnostic functions.
High Compatibility – Fully compatible with the ABB DCS system architecture, enabling seamless integration into existing control systems without complicated modification and adaptation.
Professional Diagnostic Function – Built-in device-level diagnostic capability, which greatly facilitates daily system maintenance and rapid fault location and troubleshooting.
4. Structure and Composition
4.1 Structural Characteristics
The SDCS-IOB-21 module features optimized industrial structural design with the following core advantages:
Advanced Circuit Design – Adopts mature and advanced control principles combined with high-reliability insulation technology to ensure long-term stable circuit operation.
Flexible Connection Mode – Supports standard DeviceNet bus connection and independent power supply access, adapting to diverse on-site power supply and networking scenarios.
Standardized Modular Design – Complies with international industrial module standards, featuring simple structure, convenient disassembly, and easy on-site replacement and daily maintenance.
4.2 Core Components
The module mainly consists of the following core circuit units:
- Digital Input/Output Channel Circuit
- DeviceNet Communication Interface Circuit
- Signal Isolation Circuit
- Power Management Circuit
5. Application Fields
DCS Distributed Control System – Serves as a key interface module for connecting field devices and control terminals in ABB DCS systems to realize signal interaction.
DCS500/DCS800 Speed Control System – Applied to ABB DC speed control systems as a dedicated DI/DO connection board for signal transmission and control.
General Industrial Automation – Widely used in automated control systems of manufacturing industries such as machinery, automobile, and electronics.
Process Control – Suitable for continuous process control scenarios in energy, chemical, petrochemical and other process industries.
Energy Management System – Applied to monitoring and control of power systems including power transmission and distribution networks and substations.
Infrastructure Engineering – Deployed in control systems of transportation, construction and other public infrastructure fields.
6. Installation and Maintenance
6.1 Installation Precautions
- Cut off the system power supply completely before installing the module in the DCS system rack to avoid electric shock and equipment damage.
- Connect the DeviceNet bus cable in strict accordance with the official equipment manual to ensure standardized wiring.
- Verify that the input operating voltage meets the 24VDC/48VDC specification requirements before power-on operation.
- Complete reliable grounding connection to effectively suppress external signal interference and ensure system stability.
6.2 Maintenance Key Points
- Regular Inspection – Periodically check whether the connecting terminals are loose or oxidized to guarantee stable signal transmission.
- Cleaning and Maintenance – Keep the module surface clean and dry, and remove accumulated dust regularly to prevent heat dissipation failure and circuit aging.
- Fault Diagnosis – Utilize the built-in DeviceNet diagnostic function to quickly locate fault points and improve maintenance efficiency.
- Quality Assurance – All products have passed strict factory performance and reliability tests to support long-term industrial operation.
6.3 Warranty and Replacement Service
- A 1-year official warranty service is provided for the product.
- All products are brand new and original with sufficient in-stock supply.
- Professional supporting channels are available for product replacement and after-sales maintenance services.
————————————————————————————————————-
