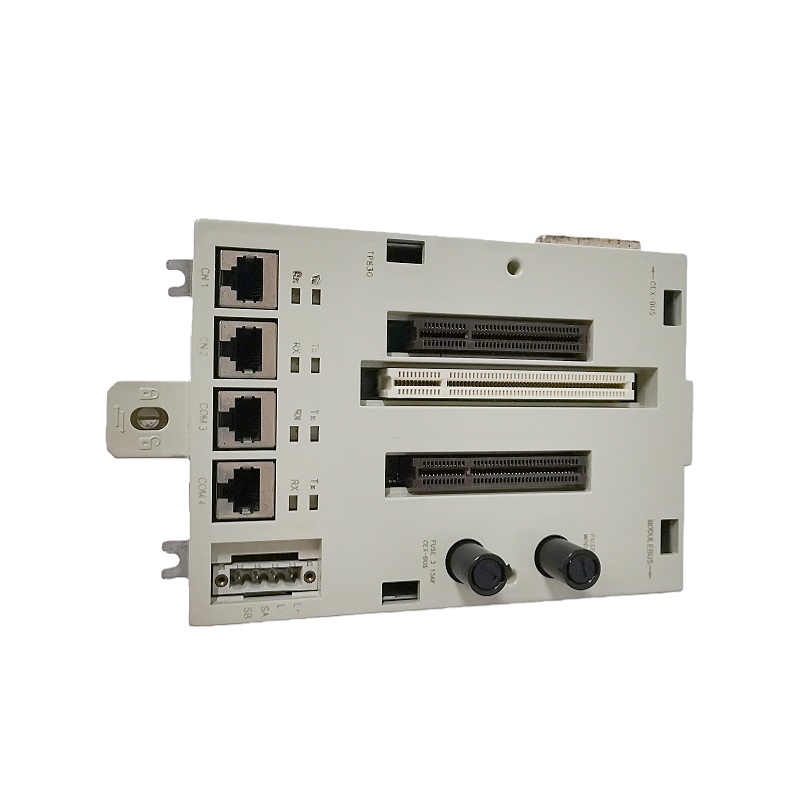

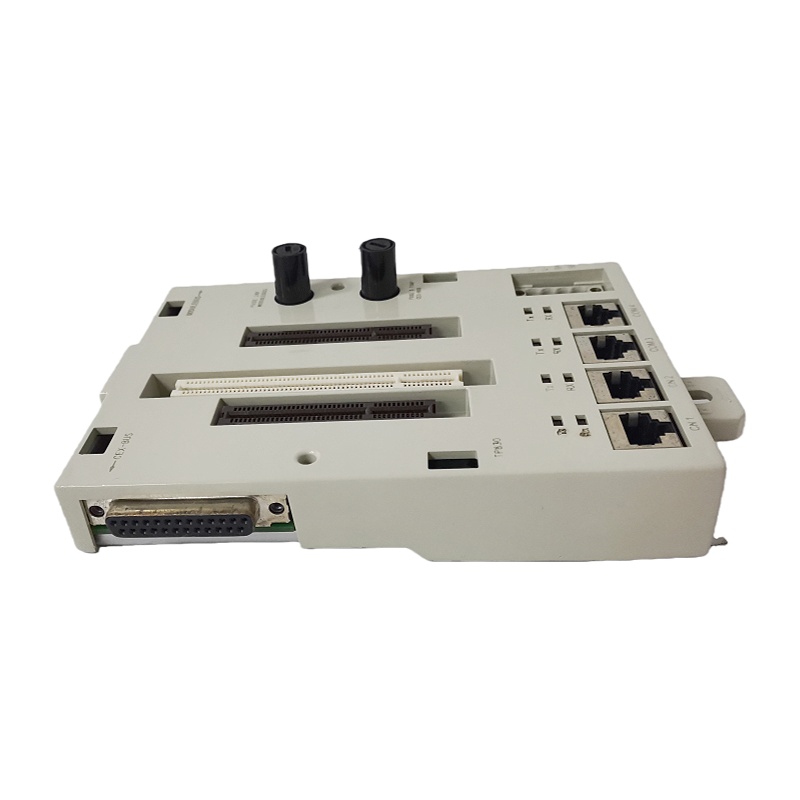

ABB TP830 Baseboard Module
ABB TP830
1. Overview
The ABB TP830 is a backplane module in the ABB Advant 800xA/AC800M system, specifically designed for industrial automation environments. It provides a stable installation platform and enables reliable connections between processor modules, I/O modules, and communication modules.
2. Key Specifications
- Power Supply: 24 V DC (±20%)
- Operating Temperature: -20 °C to +60 °C
- Protection Class: IP20
- Dimensions & Weight: Approximately 120 mm × 80 mm × 40 mm, with a weight of around 0.5 kg
- Mounting Method: DIN rail mounting
- Communication Interfaces: Supports multiple industrial protocols including Ethernet, Modbus RTU, RS‑485, and RS‑232
- I/O Capacity: 16 channels of digital input/output, compatible with relays and analog signals
3. Product Features
- High Reliability: Industrial-grade anti-interference and corrosion-resistant design, suitable for harsh on-site environments
- Modular Structure: Facilitates quick assembly, expansion, and replacement, reducing maintenance costs
- Multi-Protocol Compatibility: Built-in Ethernet, serial ports, and other interfaces, supporting fieldbus and upper-level computer communication
- Flexible Signal Output: Provides digital, analog, and photoelectric coupling signals to ensure signal stability and prevent high-voltage interference
- Easy Maintenance: Supports remote diagnosis and hot-swappable replacement, improving system availability
4. Structure and Components
- Backplane: Offers mechanical support and electrical connection, used in conjunction with processor modules
- Interface Pins: Standardized I/O and communication interface pins for fast wiring
- Power Distribution Unit: Internal power management circuit to ensure stable power supply
- Photoelectric Coupling Isolation: Prevents on-site high-voltage noise from entering the PLC and enhances signal reliability
5. Typical Application Fields
- Industrial Control Systems: PLC master stations, process control, machine vision, etc.
- Robotics and Automation: Robot controller backplanes, painting systems, etc.
- Process Monitoring: Continuous production lines in chemical, metallurgical, food packaging industries, etc.
- Energy Management: Distribution automation, power plant control systems
6. Installation and Maintenance Guidelines
Installation
Fix the module via DIN rail and ensure the backplane is placed horizontally. After connecting power, I/O, and communication cables, check the locking screws for tightness.
Wiring
Complete the corresponding wiring of power supply, input/output, and communication ports according to the wiring diagram, and use protective sleeves to prevent external interference.
Commissioning
Use engineering software provided by ABB for module identification, parameter configuration, and function testing; remote diagnosis functions can be utilized for online monitoring.
Maintenance
Regularly inspect the tightness of wiring connections and check if heat dissipation vents are blocked. In case of faults, the hot-swappable feature allows for quick backplane replacement, minimizing downtime.
————————————————————————————————————-
