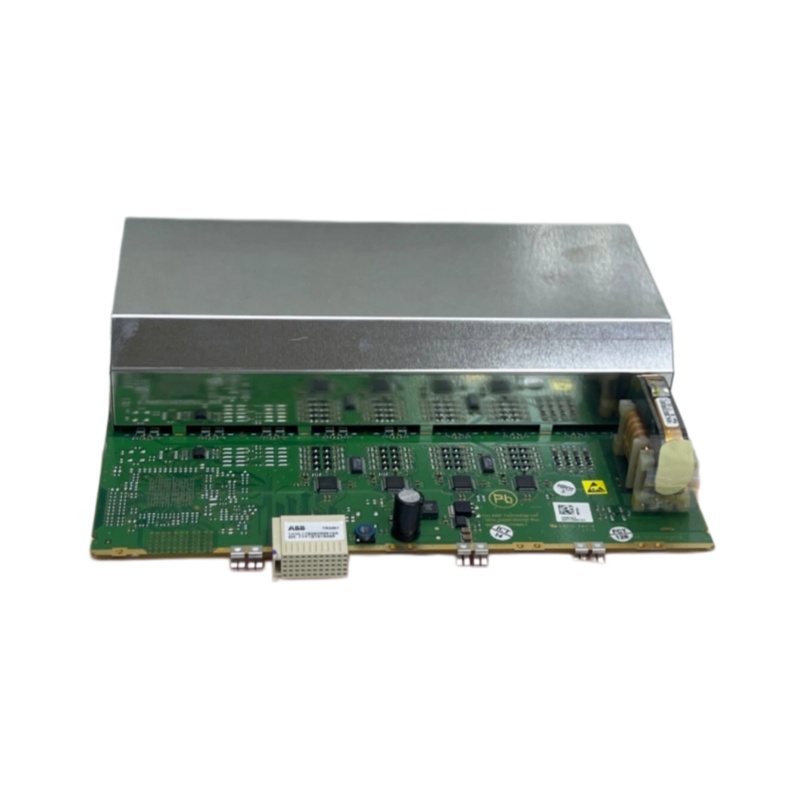

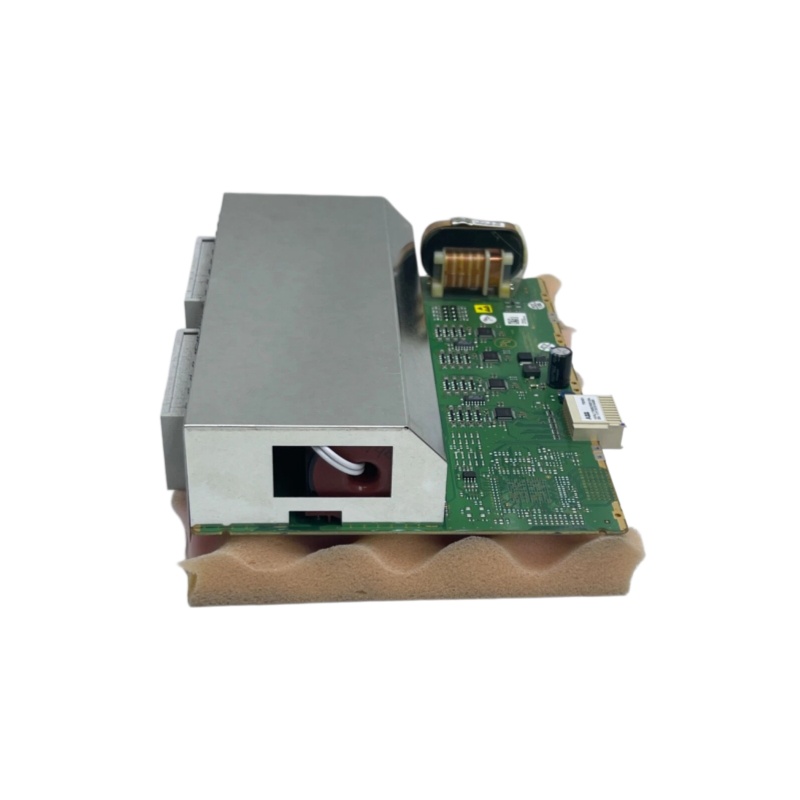

ABB TRM01 1KHL178083R0010A Power Module
ABB TRM01 1KHL178083R0010A
The ABB TRM01 is a dedicated Power Supply Module launched by ABB, designed to meet the power supply requirements of the board card series. Developed specifically for industrial automation systems and high-demand industrial environments, this module delivers highly reliable power supply solutions for industrial scenarios.
Technical Parameters
|
Parameter Item
|
Specification Value
|
|---|---|
|
Input Voltage Range
|
85-264VAC
|
|
Operating Temperature Range
|
-25°C to +70°C
|
|
Overall Dimensions
|
170mm × 80mm × 44mm
|
|
Output Voltage
|
+5V, ±12V, +24V (depending on specific sub-models)
|
|
Temperature Drift
|
Within the range of -25°C to +70°C, the output drift of ±5V/±12V is ±3%, and the output drift of +24V is ±4%
|
Product Features
- High Reliability and Durability: Adopts advanced circuit design to ensure stable power output even under load fluctuation conditions.
- Wide Temperature Adaptability: Features a broad operating temperature range, capable of adapting to harsh environments from -25°C to +70°C.
- High-Quality Manufacturing: Manufactured with premium materials and subject to strict quality control procedures, delivering an extended service life.
- Compliance with Safety Standards: Meets international safety standards and is suitable for integration into complex industrial systems.
- Excellent Electromagnetic Compatibility: Utilizes zero-voltage switching (ZVS) and zero-current switching (ZCS) technologies to suppress electromagnetic interference.
- Standardized Structure: The highly standardized modular structure facilitates convenient installation and routine maintenance.
- Three-Proof Performance: Adopts a fully sealed packaging design with waterproof, dustproof and impact-resistant functions.
Structure and Composition
The ABB TRM01 power supply module features optimized structural design with the following core advantages:
- Modular Design: Designed for installation in control cabinets or on guide rails, enabling coordinated operation with other functional modules.
- Standardized Interfaces: Compatible with various ABB board card systems including CPU01, CPM01, COM02 and other mainstream models for seamless system matching.
- Compact Structure: With dimensions of 170mm × 80mm × 44mm, it perfectly fits space-constrained industrial application scenarios.
Application Fields
The ABB TRM01 power supply module is widely applicable to the following industrial scenarios:
- Industrial Automation Systems: Serves as a core power supply unit for key equipment in continuous operation scenarios.
- Robot Control Systems: Matches with ABB robot control board cards to provide stable and continuous power support.
- Distributed I/O Systems: Supplies reliable power for distributed I/O stations in industrial control networks.
- Complex Industrial Process Control: Supports system integration and stable operation of large-scale and complex industrial control systems.
- Automotive Manufacturing Automation Lines: Provides stable power supply for production equipment in welding lines and other automotive automation systems.
Installation and Maintenance
Installation Guidelines
- Installation Environment: Ensure the operating ambient temperature is maintained within the range of -25°C to +70°C.
- Power Connection: Connect to 85-264VAC power supply in strict accordance with international electrical safety standards.
- Din Rail Installation: Equipped with a standardized mounting structure, which can be firmly fixed on the guide rail of industrial control cabinets.
- Redundant Configuration: Can be combined with other power supply modules and extended backplanes to build a redundant power supply system for improved operational stability.
- Fast Switching Performance: The switching time of the backup power supply is less than 10ms in case of main power failure, ensuring uninterrupted system operation.
Maintenance Guidelines
- Regular Inspection: Periodically check the operating status of the module to eliminate abnormal heating, abnormal noise and other potential faults in a timely manner.
- Minimized Downtime: The user-friendly modular design supports quick disassembly and replacement, effectively reducing equipment maintenance downtime.
- Easy Cleaning and Maintenance: The fully sealed packaging structure effectively prevents dust accumulation, reducing daily maintenance workload.
————————————————————————————————————-
