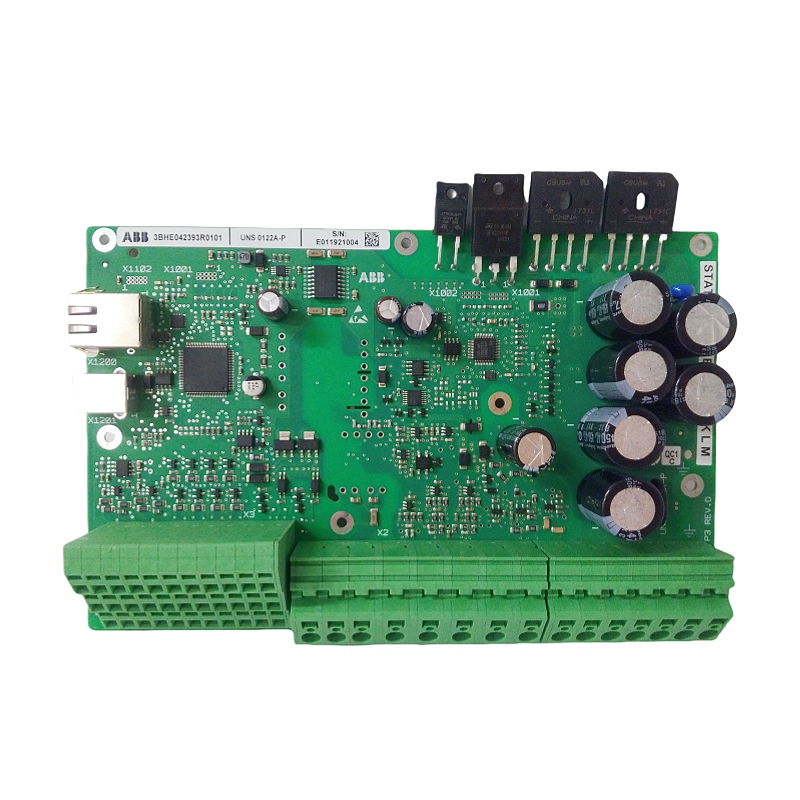

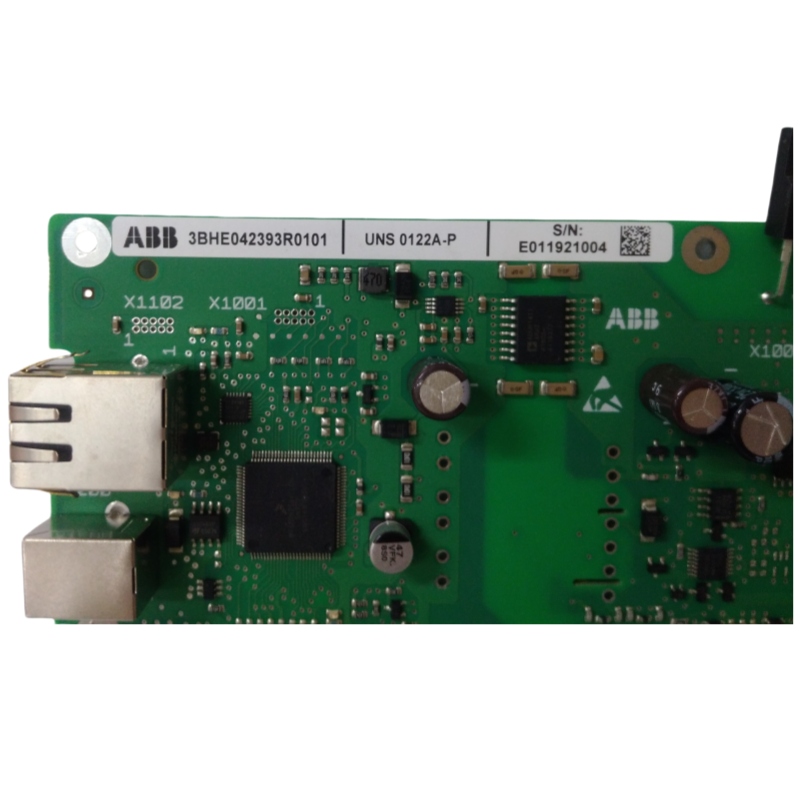

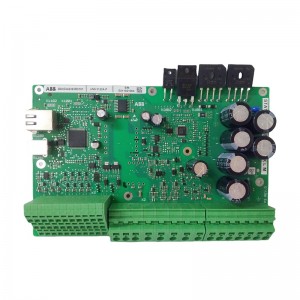

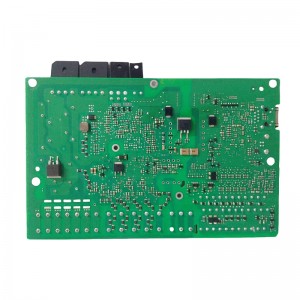

ABB UNS0122A-P

I. Product Overview

II. Product Parameters

• Output type: Switch output / Digital output
• Number of output channels: 12 channels / 8 channels (depending on different sources)
• Rated current: 2 A/circuit / 5 A (depending on different sources)
• Rated voltage: 24 VDC
• Output power: 28.8 W
• Operating temperature range: -25°C to +60°C / -10°C to +60°C / -20°C to +50°C
• Protection class: IP65 / IP20
• Dimensions: 115 mm x 65 mm x 30 mm / 100 mm x 50 mm x 75 mm / 150 mm x 100 mm x 50 mm
• Weight: 0.5 kg / 500 g
• Installation method: Wall-mounted or rack-mounted
• Compatibility: Specifically designed for the ABB AC 800M PLC system

III. Product Features

• High reliability: Adopts a rugged and durable design, capable of withstanding harsh environmental conditions, suitable for complex industrial on-site environments.
• High flexibility: Supports multiple load types such as relays, contactors, and indicator lights, applicable to various industrial control needs.
• Easy maintenance: Provides rich diagnostic and maintenance functions, facilitating user maintenance and troubleshooting.
• Strong anti-interference ability: Uses optically isolated inputs to improve anti-interference performance and reliability, ensuring stable operation in industrial environments.
• Hot-swappable design: Facilitates maintenance and replacement, enhancing system availability and maintainability.
• High-speed response: High-speed digital input and output channels with fast response time, suitable for real-time control systems.

IV. Structure and Composition

• Input/output ports: Provide interfaces for digital signal input and output, supporting multiple configuration options.
• Processor: Uses a high-performance processor such as PowerPC 604e, offering powerful data processing capabilities.
• Memory and storage: Equipped with 128 MB main memory and 2 MB flash memory for storing control programs and configuration data.
• Communication interfaces: Support multiple communication protocols such as Modbus, Profibus, Ethernet/IP, and DeviceNet, facilitating communication with upper computers or other devices.
• Protection design: Adopts IP65 or IP20 protection class to ensure stable operation in harsh industrial environments.

V. Application Fields

• Industrial control: Used to control industrial equipment such as motors, valves, and pumps.
• Building automation: Used to control devices such as lighting, air conditioning, and ventilation, improving building energy efficiency and comfort.
• Power systems: Used to control power equipment such as circuit breakers and disconnectors.
• Transportation systems: Used to control transportation equipment such as signal lights and barriers.
• Manufacturing and energy: Applied in industries such as manufacturing, energy, construction, and transportation to realize automation and intelligence of production processes.
• Oil and gas industry: Used in oil and gas exploration, chemical processing, steel production, paper mills, etc.

VI. Installation and Maintenance

• Wall-mounted installation: Suitable for occasions with limited space, facilitating installation and maintenance.
• Rack-mounted installation: Suitable for large-scale control systems, facilitating modular management and expansion.
• Hot-swappable design: Supports hot swapping for easy maintenance and replacement, reducing downtime.

• Regular inspection: Regularly check the connections and working status of the module to ensure its normal operation.
• Diagnostic functions: Utilize the diagnostic functions provided by the module to promptly detect and resolve faults.
• Environmental requirements: Ensure the module operates within the specified temperature range to avoid faults caused by environmental factors.
• Cleaning and maintenance: Regularly clean the surface of the module to prevent dust and dirt from affecting its performance.

———————————————————————————————————————————
