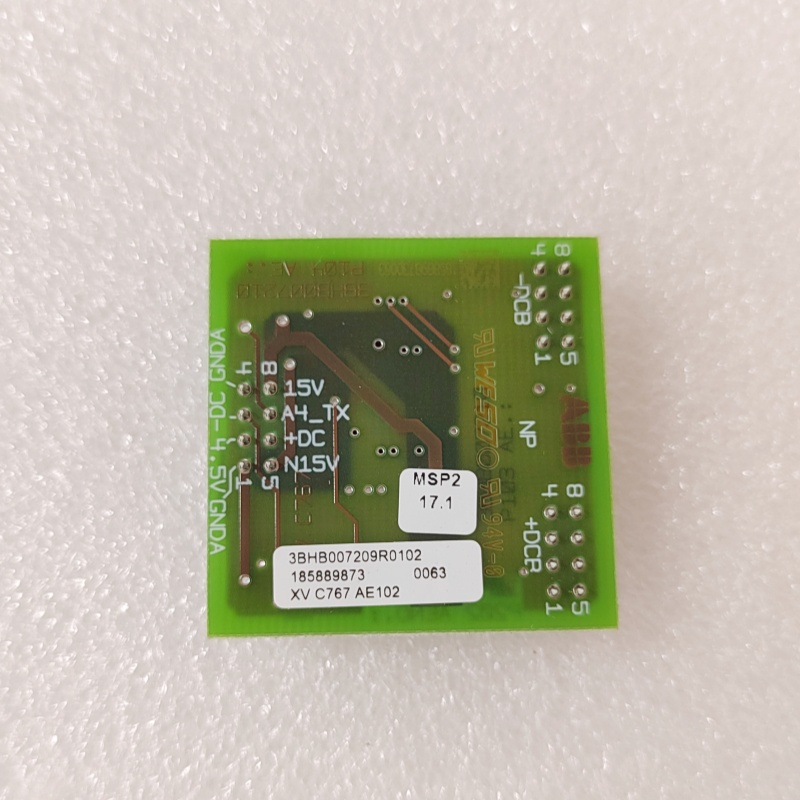

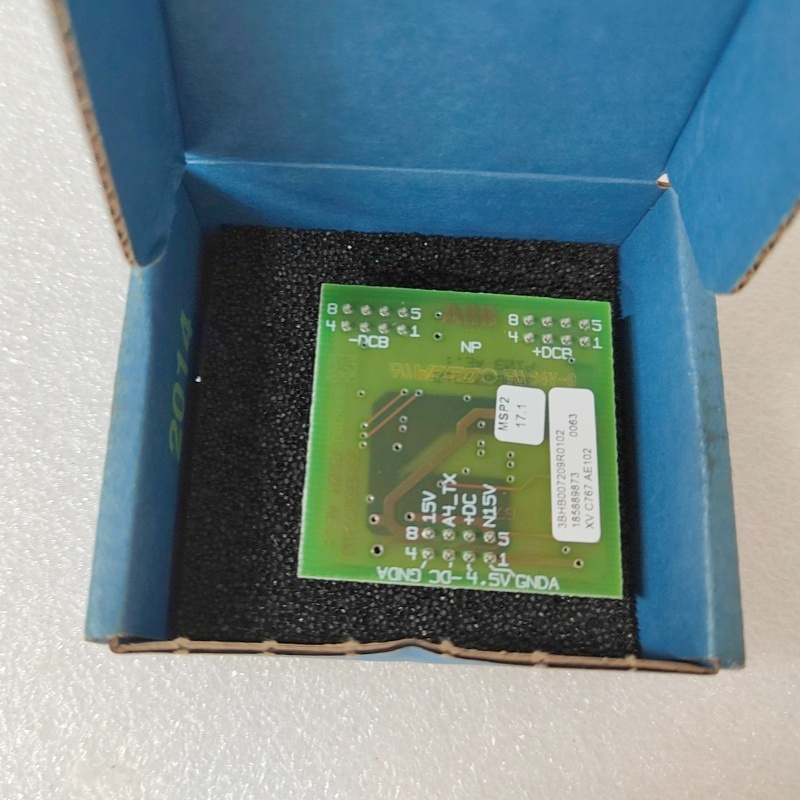

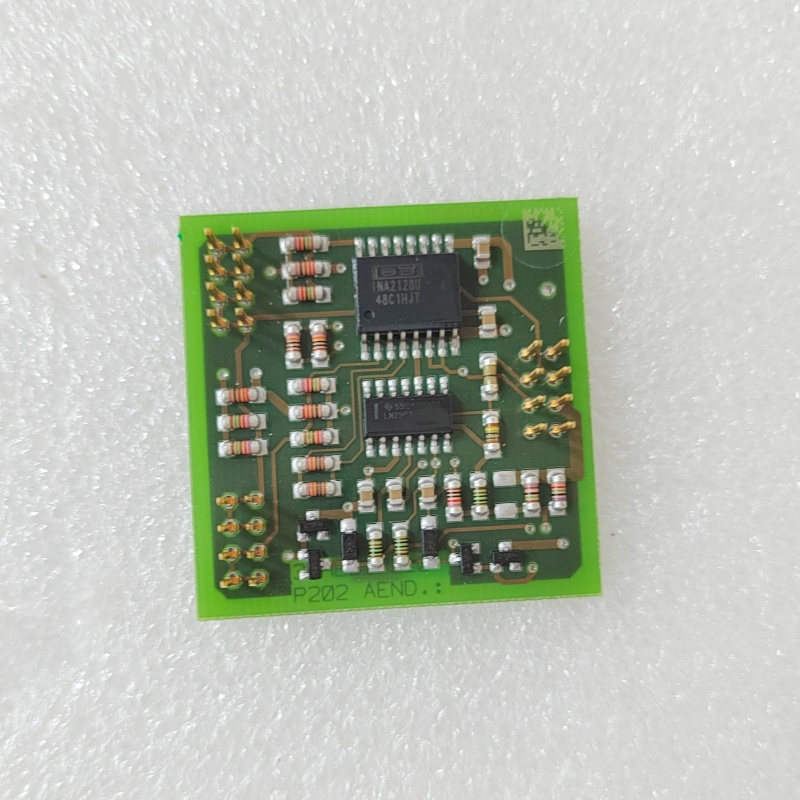

ABB XVC767AE102 3BHB007209R0102

I. Overview

II. Main Parameters

• Model: XVC767AE102
• Part Number: 3BHB007209R0102
• Input Voltage: 24V DC ± 20%
• Input Current: Maximum 5 mA
• Output Frequency: 30 kHz
• Operating Temperature Range: -20°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Dimensions: 400 mm x 250 mm x 120 mm
• Weight: 12 kg
• Protection Class: IP20
• Communication Protocols: Ethernet/IP, Modbus TCP/IP
• Maximum I/O Points: Up to 128

III. Product Features

• Modular Design: Can be flexibly configured according to different application requirements, suitable for various industrial environments.
• High Performance: Adopts advanced vector control technology, which can achieve precise control of motors, provide smooth acceleration and deceleration processes, and optimize motor energy efficiency.
• High Reliability: Manufactured with high-quality components to ensure long-term stable operation in harsh industrial environments.
• Easy Installation and Maintenance: Compact structure for easy installation and maintenance, with clearly identifiable terminal blocks.
• Support for Multiple Communication Protocols: Supports communication protocols such as Ethernet/IP and Modbus TCP/IP, facilitating integration with other equipment systems.

IV. Structure and Composition

• Shell Material: Aluminum alloy, which is sturdy and durable, providing reliable protection.
• Interface Modes: RS-232, RS-485, Ethernet, etc.
• Internal Components: Including CPU, memory, storage space, communication interfaces, etc.
• Installation Method: Compact design, easy to install in control cabinets.

V. Application Fields

• Industrial Automation: Used to control equipment on production lines, such as motors and valves.
• Process Control: Used to control process variables in industries such as chemical, petroleum, and pharmaceutical.
• Energy Management: Used in power systems and energy management to control power equipment and switching devices.
• Robotics: Supports robot motion control and task execution.
• Building Automation: Used for the management of HVAC systems, lighting, and safety measures in intelligent buildings.

VI. Installation and Maintenance

• Installation Guidelines:
  Detailed installation instructions are provided in the user manual, or you can contact ABB customer support for assistance.
  The installation method is of compact design, easy to install in control cabinets.
• Maintenance Information:
  Supports hot swapping for quick replacement and maintenance.
  Maintenance personnel can easily replace components.

———————————————————————————————————————————
