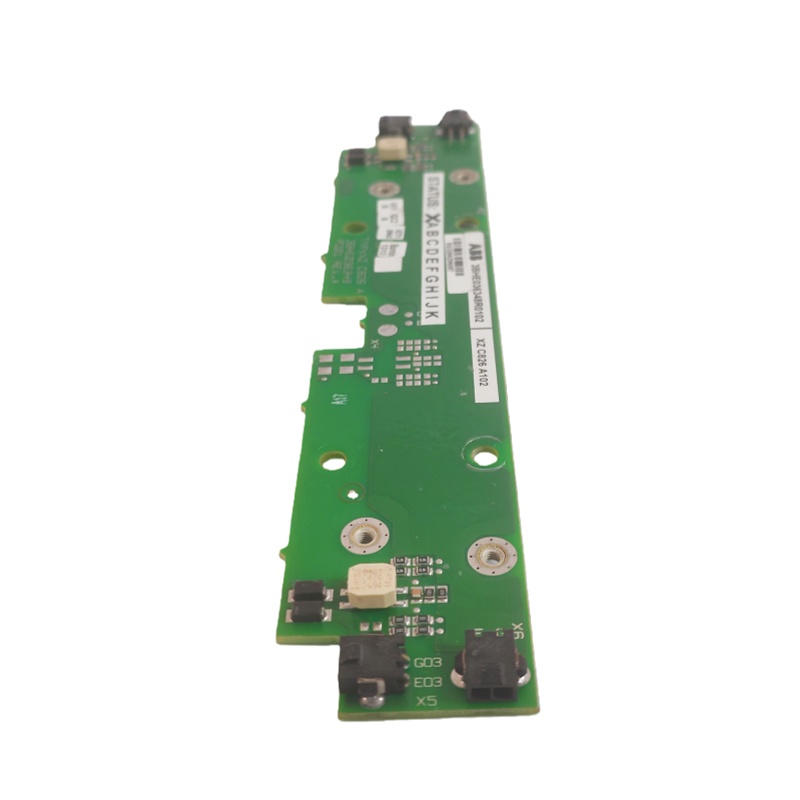

ABB XZC826A102 3BHE036348R0102

1. Overview

2. Main Parameters

• Operating temperature: -20 °C – +60 °C; Storage temperature: -40 °C – +85 °C
• Relative humidity: 5 % – 95 % (non-condensing)
• Protection class: IP20 (panel)
• Mounting method: 35 mm DIN rail mounting
• Dimensions: 110 mm × 80 mm × 65 mm, weight approx. 0.3 kg
• Conversion accuracy: ±0.1 % FS, nonlinear error ≤ 0.05 %
• Anti-interference: Multi-stage filtering + photoelectric isolation, compliant with industrial EMC standards

3. Product Features

• High-precision conversion: Extremely low analog signal conversion error ensures the accuracy of signal transmission.
• Strong anti-interference: The photoelectric isolation and multi-stage filtering design can effectively resist 50 V/m electromagnetic interference.
• Wide signal compatibility: Supports multiple analog signal types and can connect to sensors of different brands without additional adapters.
• Compact and reliable: DIN rail mounting with small size and light weight facilitates on-site arrangement and maintenance.

4. Structure and Composition

• Module body: Includes signal input/output terminals, photoelectric isolation unit, and filter circuit.
• Power supply part: Built-in voltage stabilization circuit provides stable power supply.
• Mechanical housing: IP20 protective housing, combined with DIN rail buckles, realizes quick fixation.

5. Application Fields

• Process control systems (analog monitoring of temperature, pressure, flow, etc.)
• Industrial automation sites (signal bridging between PLC, DCS and field instruments)
• Energy management and power distribution monitoring
• Mechanical manufacturing and robot control loops

6. Installation and Maintenance

• Installation: Adopt 35 mm DIN rail and directly snap into the rail slot; screw terminals are used for wiring to ensure reliable connection.
• Debugging: The module is equipped with indicator lights to quickly judge the power supply and signal status; parameter configuration can be carried out with ABB standard software.
• Maintenance: The module is designed as maintenance-free. Routine inspections include terminal tightening and housing dustproof condition; in case of failure, the whole machine can be directly replaced to reduce downtime.
