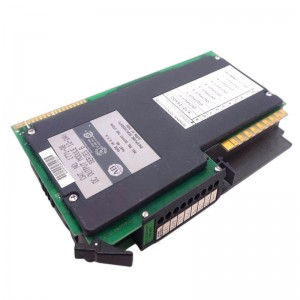

Allen-Bradley 1336-BDB-SP57A Drive Module
Allen-Bradley 1336-BDB-SP57A
The Allen‑Bradley 1336‑BDB‑SP57A is a critical gate drive module designed specifically for the 1336 Plus II series of AC drives. Its primary function is to control the switching of IGBTs (Insulated Gate Bipolar Transistors), converting low‑voltage control signals from the drive’s CPU into high‑voltage pulses (typically 460V) that regulate motor speed, torque, and operation.
____________________________________________________________________________________________
1. Key Specifications
- Voltage Rating: 460V (matches the main power supply of 1336 Plus II drives)
- Power Rating: 40HP (suitable for 30–50HP 1336 Plus II models)
- Compatibility: Designed for 1336 Plus II series drives, including 1336‑14A, 1336‑16A, 1336‑18A, 1336‑20A, 1336‑22A, 1336‑24A, and more.
- Primary Function: Provides high‑frequency H‑Bridge gate drive signals to ensure fast, stable switching of IGBTs.
____________________________________________________________________________________________
2. Product Features
- High Reliability Design: Built to Rockwell’s strict standards, the board includes robust EMC (Electromagnetic Compatibility) and ESD (Electrostatic Discharge) protection, ensuring long‑term stability in industrial environments.
- Precise Power Control: Delivers up to 460V of gate drive voltage, enabling IGBTs to switch rapidly even in high‑power (30HP+) motor applications. This supports the high‑frequency speed regulation capabilities of the 1336 Plus II drive.
- Exact OEM Form Factor: The PCB dimensions and terminal layout match the original module, allowing for a direct replacement without additional wiring or modifications.
- Standardized Replacement Part: As a common spare part in the 1336 series, the 1336‑BDB‑SP57A offers high interchangeability and is widely used across multiple drive models.
____________________________________________________________________________________________
3. Construction & Components
- Power Switching Section: The core of the board, responsible for directly driving the IGBTs and managing the main power circuit switching.
- Optocoupler Isolation: Provides complete electrical isolation between the low‑voltage control signals and high‑voltage power circuits, protecting the control section from voltage spikes and noise.
- Filter Capacitors & Protection Circuits: Reduces electromagnetic interference (EMI) and prevents damage from voltage transients.
- Cooling Fan (Depending on Version): Some variants include an integrated cooling fan or require an external fan to maintain optimal operating temperatures.
____________________________________________________________________________________________
4. Typical Applications
- Industrial Automation: Used in conveyors, compressors, centrifugal pumps, concrete mixers, and other heavy‑duty motor control systems.
- Manufacturing Equipment: Ideal for CNC machines, presses, packaging machinery, and other applications requiring precise speed control.
- Building Infrastructure: Applied in large HVAC fans, water pumps, and elevator systems for efficient and reliable motor operation.
____________________________________________________________________________________________
5. Installation & Maintenance
5.1 Installation Notes
- Always Disconnect Power: Ensure the drive is completely powered off and that capacitors have fully discharged before installation.
- Verify Terminal Alignment: Confirm that the PCB and terminal positions match the original board exactly, especially for power input and control signal terminals.
- Use ESD Protection: Wear an anti‑static wristband to prevent electrostatic damage during handling.
5.2 Maintenance Recommendations
- Check Cooling: Regularly inspect the cooling fan (if equipped) to prevent overheating.
- Monitor Input Voltage: Use a multimeter or oscilloscope to ensure the input voltage remains stable around 460V.
- Maintain Heat Sink: Keep the heat sink clean and free of dust to ensure efficient heat dissipation.
————————————————————————————————————-
