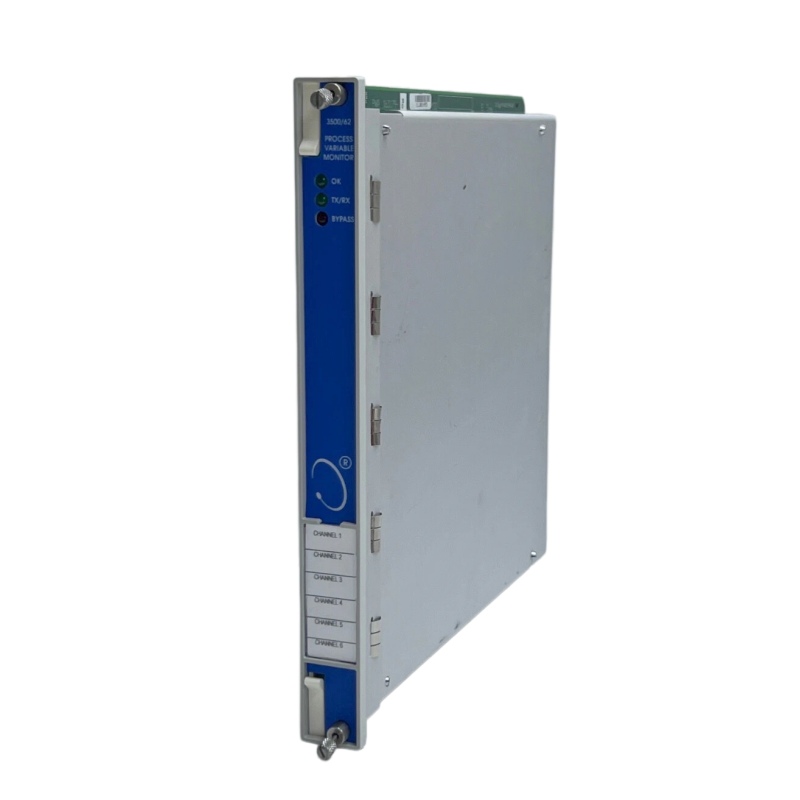

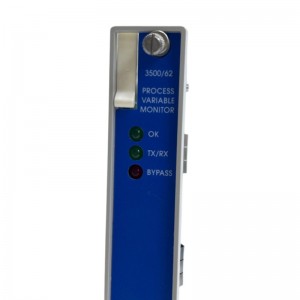

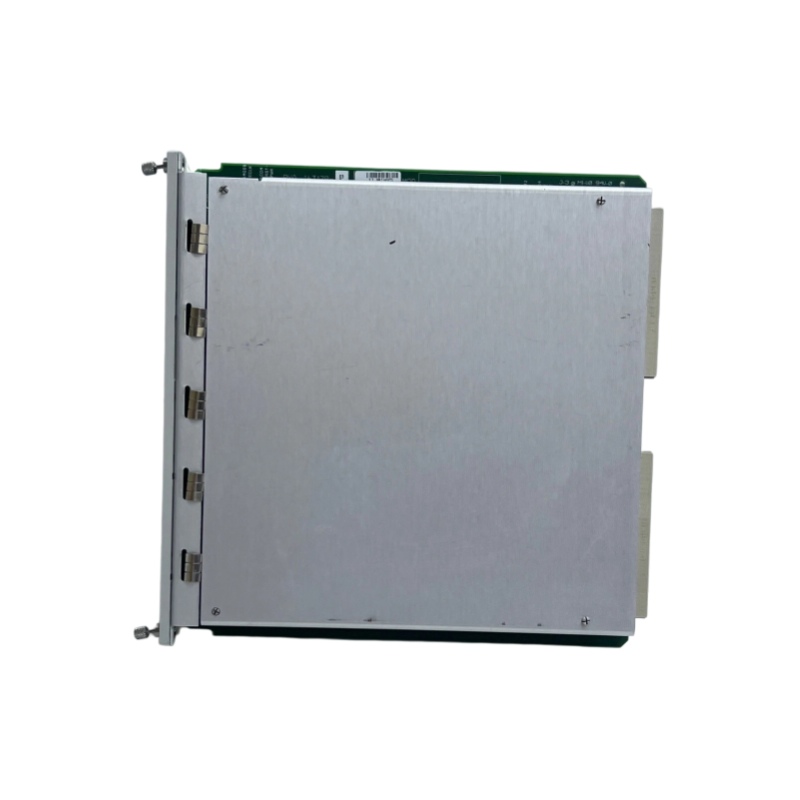

BENTLY NEVADA 3500-62 Variable Monitoring Module
BENTLY NEVADA 3500-62
1. Overview
The BENTLY 3500-62 module receives signals from temperature, pressure, flow and other sensors, continuously collects operating parameters and compares them with preset thresholds to realize early warning of abnormal working conditions. Serving as the “central nervous system” in large-scale unit protection, this module can be integrated into DCS or PLC systems, improving equipment reliability and reducing the risk of unplanned downtime.
______________________________________________________________________________________________
2. Key Specifications
Power Supply: 24V DC (accepts 18-36V DC input; 110/220V AC external power supply options are available).
Input Signals: Supports 4-20mA current input (standard industrial signal), and also accepts 1-5V DC voltage input.
Analog Inputs: 4 isolated analog input channels, enabling multi-channel monitoring.
Operating Environment: Temperature range from -40°C to +85°C, suitable for harsh industrial environments.
Communication Interface: Modbus RTU (RS-485).
______________________________________________________________________________________________
3. Product Features
High-Precision Monitoring: Adopts advanced measurement technology with a measurement accuracy of up to ±0.1% FS (Full Scale), guaranteeing reliable and accurate data output.
Multi-Channel Configuration: Equipped with multiple configurable input channels, allowing simultaneous monitoring of multiple process variables including temperature, pressure and flow.
Modular Design: Features a compact structure, supports DIN rail mounting or panel mounting, facilitating system expansion and routine maintenance.
Self-Diagnosis and Redundancy: Built-in self-diagnostic function and supports redundant design (e.g., three adjacent modules with dual-voting logic enabled), ensuring stable and uninterrupted operation of the monitor.
______________________________________________________________________________________________
4. Structure and Components
Main Unit: Consists of a power supply module (3500/15) and a process variable monitoring module (3500/62).
I/O Interface: Provides 4-20mA input points and supports isolated analog inputs; select models are equipped with 6-channel temperature I/O (RTD/TC).
Communication Module: Built-in Modbus RTU communication interface for stable and efficient data transmission.
Display and Control: Some versions feature an integrated display or support external display panels, enabling on-site parameter viewing and adjustment.
______________________________________________________________________________________________
5. Applications
Energy: Power plants (steam turbines, generator sets).
Petrochemical: Monitoring of compressors, pumps and fluid pipelines.
Heavy Industry: Mine fans, steel production lines, automotive manufacturing equipment.
Hydropower and Environmental Protection: Hydropower stations, wastewater treatment systems.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation Recommendations
Environmental Requirements: The installation site must be well-ventilated and free from strong electromagnetic interference. The recommended operating temperature ranges from 0°C to +65°C; avoid long-term operation in high-temperature or humid environments.
Wiring Connections: Shielded signal cables are recommended. Keep power cables separate from signal cables and avoid cross wiring to minimize electromagnetic interference.
Mounting Method: Supports DIN rail mounting or panel mounting. Ensure firm and stable connections between the rack and modules.
______________________________________________________________________________________________
Maintenance Recommendations
Regular Inspections: Check all wiring connections for looseness and secure any loose connections promptly. Clean dust and debris from the module surface regularly to maintain proper heat dissipation.
Temperature Monitoring: Monitor the ambient operating temperature to prevent overheating, which can impair module performance and shorten service life.
Redundancy Verification: For systems equipped with redundant modules (dual-voting configuration), inspect the operating status of backup modules regularly to ensure seamless switching in case of primary module failure.
Software Calibration: Use the 3500 Rack Configuration software to set up channels, select measuring ranges, units and alarm thresholds. Perform on-site calibration regularly to maintain optimal measurement accuracy.
————————————————————————————————————-
