Core Parameters and Technical Specifications

Key Product Features

Multifunctional Calibration

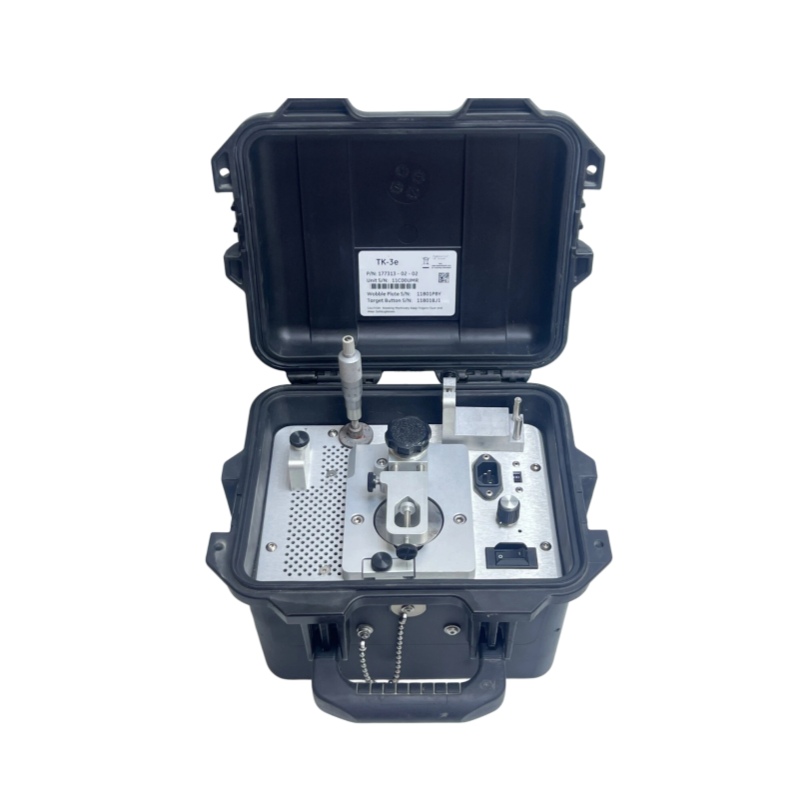

• Vibration Simulation: Uses a motor-driven pivotal plate to simulate real shaft vibration signals.
• Position Simulation: Uses a detachable spindle micrometer assembly to simulate absolute shaft position changes.

Strong Versatility

• Probe Compatibility: Equipped with a universal probe mount, supporting probes ranging from 5mm to 19mm (including Bently 3300 Series probes).
• Modular Design: Magnetic base design for quick on-site placement and use.

Portable and Maintenance-Free

Structure and Composition

• Electric/Pneumatic Drive System: Provides movement of the pivotal plate to simulate vibration signals.
• Pivotal Plate: Installed on the motor to simulate shaft vibration.
• Micrometer Assembly: Used to accurately simulate absolute shaft position (displacement) changes.
• Universal Probe Bracket: Detachable design, compatible with proximity probes of different specifications.
• Magnetic Base: Facilitates fixing or moving the instrument on metal surfaces.

______________________________________________________________________________________________

Application Fields

• Steam Turbines (main shaft vibration monitoring)
• Compressors (vibration and displacement monitoring)
• Pumps (bearing and impeller monitoring)
• Fans (impeller and bearing monitoring)
• Turbines (axial and radial displacement monitoring)

______________________________________________________________________________________________

Installation and Maintenance Guide

Installation Steps

1. Power Connection: Connect the power cord according to the local voltage (95-125V or 190-250V) and ensure the power frequency matches (50/60Hz).
2. Probe Installation: Install the proximity sensor to be calibrated on the universal probe bracket, ensuring the probe tip is vertically aligned with the detection surface.
3. Parameter Setting: Set the corresponding amplitude or displacement parameters on the instrument according to the specifications of the sensor to be calibrated (such as the rated amplitude range).

______________________________________________________________________________________________

On-Site Calibration Process

Vibration Calibration:

1. Start the instrument’s motor drive to make the pivotal plate vibrate at a fixed frequency.
2. The instrument will generate a known vibration signal (e.g., 50μm), and read the output reading of the monitor at this time.
3. Compare the actual reading with the standard reading, and adjust the calibration coefficient of the monitor if there is a deviation.

Position Calibration:

1. Use the micrometer assembly to slowly rotate the shaft, so that the distance detected by the probe gradually changes from “far” to “near”.
2. Record the voltage change during this process and compare it with the displacement reading displayed by the monitor.
