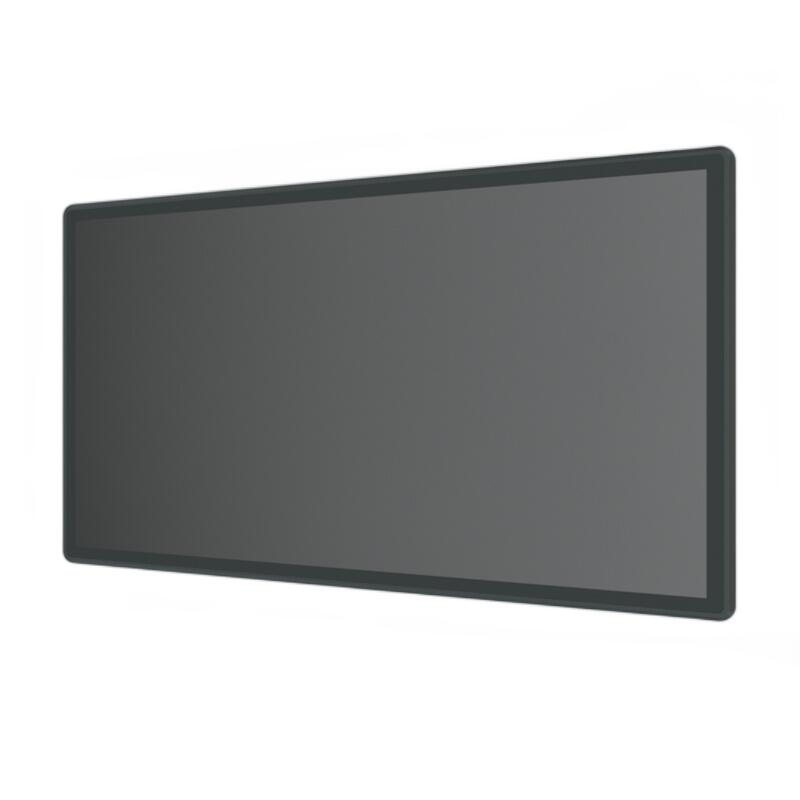

B&R 5AP933.215C-00 Operation Panel
B&R 5AP933.215C-00
1. Overview
The 5AP933.215C-00 is a 21.5-inch industrial touchscreen HMI panel launched by B&R. Adopting projected capacitive multi-touch technology, it is designed for on-site monitoring and operation of industrial automation systems. Boasting high brightness, wide viewing angles, and an IP65 protection rating (when installed with compatible modules), this product ensures long-term reliable operation even in harsh industrial environments.
2. Key Specifications
- Display Screen: 21.5-inch TFT color screen with Full HD resolution (1920 × 1080), 1000:1 contrast ratio, brightness range of 12.5–250 cd/m², and 16.7 million colors.
- Touch Technology: Projected Capacitive Touch (PCT) supporting 10+ simultaneous touch points.
- Mechanical Structure: Aluminum alloy frame with a black finish, equipped with a 3 mm fixed sealing ring, weighing approximately 5.4 kg.
- Operating Environment: Temperature range from –20 °C to 60 °C; IP65 protection rating (IP20 when used with connected modules); Pollution Degree 2.
- Interfaces: Supports multiple industrial communication interfaces including Ethernet, USB, and RS‑232/485.
- Power Supply: 24 V DC input, with a typical power consumption of around 30 W.
3. Product Features
- High Reliability: IP65 protection, wide operating temperature range, and long-life LED backlight (30,000 hours lifespan).
- Superior Visibility: High brightness and wide viewing angles (89° horizontal/vertical), ensuring clear display even under strong ambient light.
- Flexible Installation: Compatible with wall-mount, DIN rail, and panel-mount configurations, with a full set of mounting accessories included.
- Rich Communication Capabilities: Equipped with multiple industry-standard interfaces for seamless integration with PLC, SCADA, MES and other industrial systems.
- User-Friendly HMI: Responsive projected capacitive multi-touch enables smooth handwriting input and gesture control.
4. Structure and Components
- Display Module: Combines a TFT color screen and an LED backlight unit.
- Touch Layer: Full-screen projected capacitive touch sensor layer.
- Control Unit: Built-in industrial-grade processor (based on Intel® Core™ i7), equipped with 8 GB DDR4 RAM and 256 GB SSD storage, running Windows 10 IoT Enterprise.
- Housing and Sealing: Aluminum alloy frame paired with a protective sealing ring to achieve IP65 ingress protection.
- Interface Panel: Provides a comprehensive set of interfaces including Ethernet, USB, RS‑232/485, and digital/analog I/O.
5. Application Fields
- Manufacturing Industry: Factory automation, assembly line monitoring, and robot control.
- Logistics Industry: Warehouse management systems and conveyor line monitoring.
- Pharmaceutical and Food Industries: Cleanroom operation interfaces and process parameter display.
- Printing, Packaging, Textile and Leather Industries: Production line status monitoring and adjustment.
- Other Industrial Sites: Any scenario requiring high-reliability human-machine interaction solutions.
————————————————————————————————————-
