Lam Research E3177-E0001

Product Overview

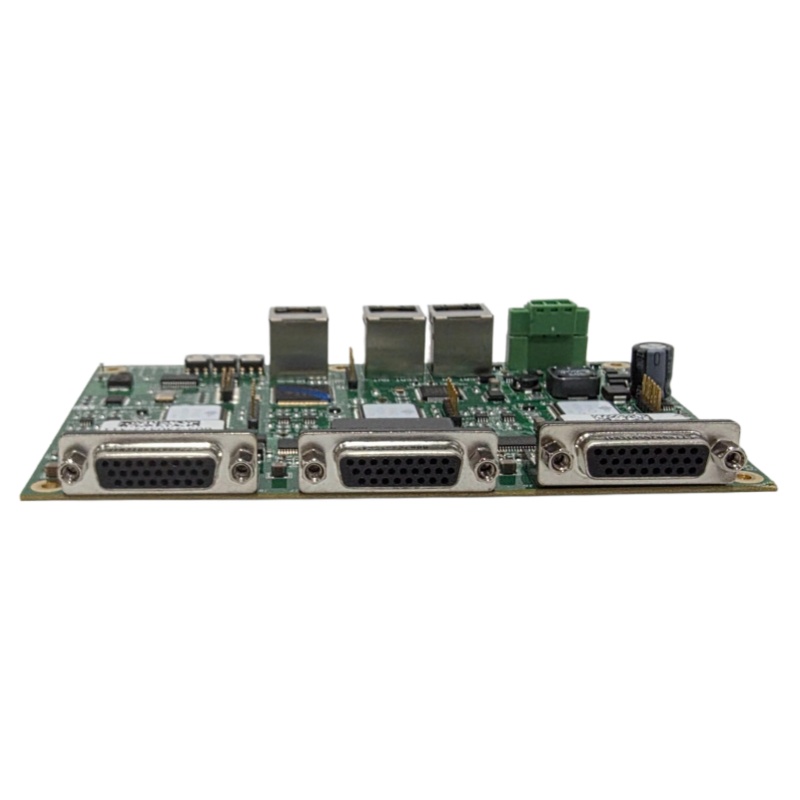

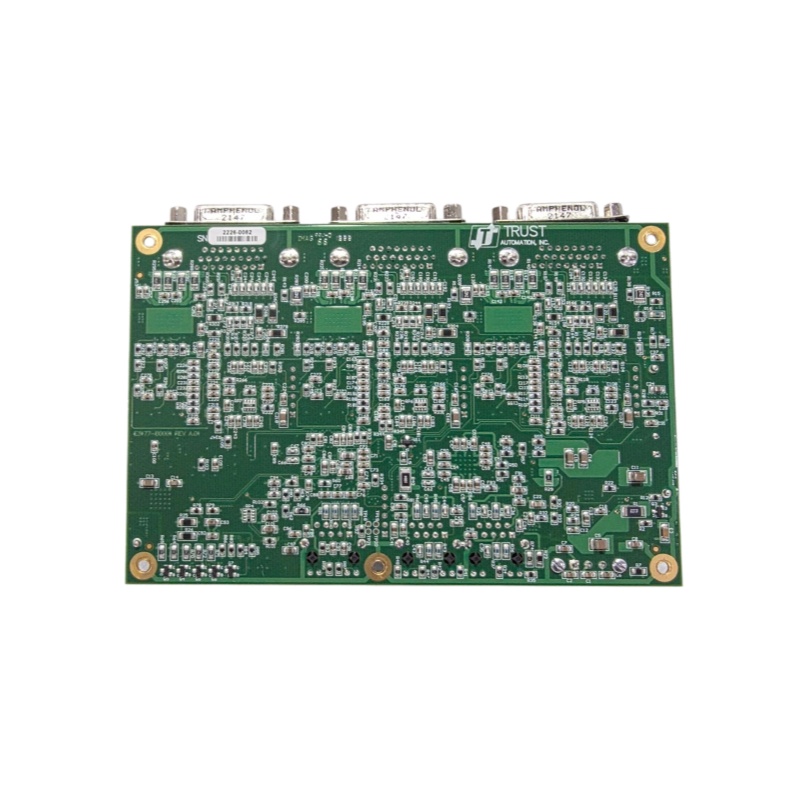

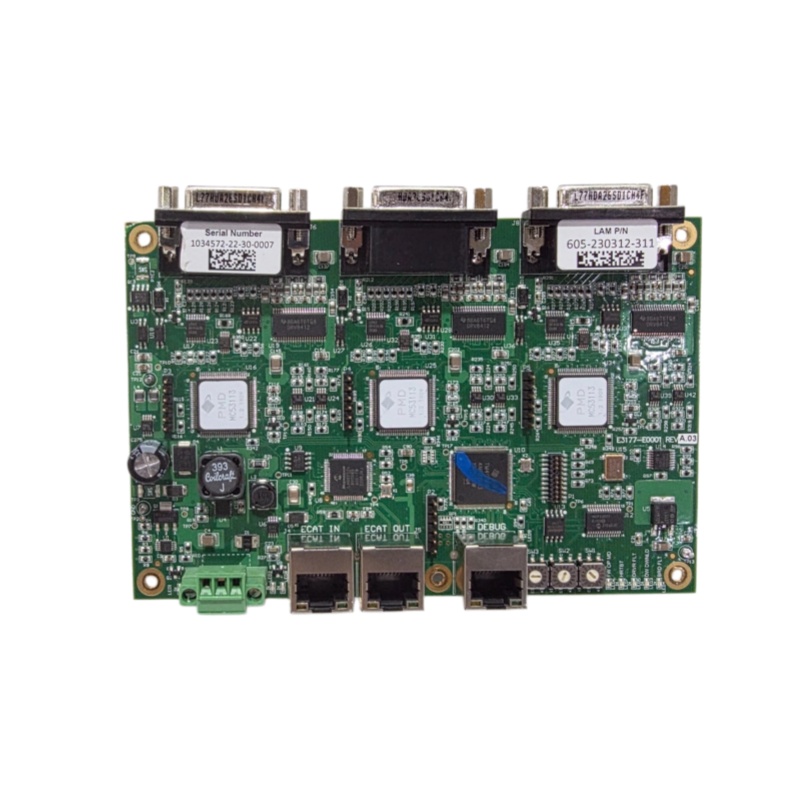

The Lam Research E3177-E0001 605-230312-311 is a specialized Trust Automation PCBA used in semiconductor manufacturing equipment. Current parts listings identify 605-230312-311 as a Trust Automation E3177-E0001 board. Trade records provide additional functional information, describing the assembly as an ECAT three-axis stepper driver with closed-loop control.

This makes the board particularly relevant to equipment that requires coordinated and repeatable motion control. Rather than being a general-purpose PLC module, it is better understood as an equipment-specific motion-control assembly intended for integration with compatible Lam Research systems.

Core Specifications

The three-axis, closed-loop stepper-driver description is supported by trade records for the exact 605-230312-311 part number.

Motion Control Capability

Motion control is a critical function in semiconductor equipment. Wafer handling, positioning, indexing, and other automated movements require accurate coordination between motors, sensors, and the equipment controller.

The 605-230312-311 is designed around a three-axis stepper-driver architecture. Its closed-loop configuration allows the motion system to operate with feedback rather than relying solely on open-loop motor commands. As a result, the board can support more controlled and repeatable positioning within the equipment’s motion system.

The ECAT interface reference also indicates its role in a networked industrial control architecture, where motion-related devices can exchange control information with the wider equipment system.

Trust Automation E3177-E0001

The E3177-E0001 designation is an important identification reference when sourcing this assembly. Current spare-parts listings explicitly pair this designation with Lam Research 605-230312-311.

For maintenance teams, checking both numbers is recommended. The Lam Research part number helps identify the equipment spare, while the Trust Automation model provides an additional reference for the board itself.

This dual identification is especially useful when comparing used, refurbished, or replacement inventory.

Semiconductor Equipment Applications

The 605-230312-311 is intended for specialized semiconductor manufacturing equipment where controlled multi-axis motion is required.

Potential maintenance applications include:

• Wafer-handling mechanisms
• Precision positioning systems
• Automated equipment motion
• Multi-axis stepper motor control
• Semiconductor process equipment
• Equipment refurbishment
• Replacement of failed motion-control electronics
• Preventive maintenance spare inventories

The exact equipment platform should be confirmed before installation because semiconductor tools can use different hardware configurations and revisions.

Closed-Loop Design Benefits

A closed-loop motion system can monitor feedback from the controlled mechanism and use that information as part of the motion-control process. This is valuable when equipment requires consistent positioning and repeatable movement.

For semiconductor manufacturing, positioning accuracy can directly affect equipment throughput and process reliability. Therefore, a functioning motion-control board is an important part of overall equipment performance.

If the original board develops an electronic fault, communication problem, or motor-control issue, replacing it with the correct part-number configuration can be more practical than modifying the existing control architecture.

Installation and Maintenance

Before installing a replacement E3177-E0001 / 605-230312-311, technicians should compare the original and replacement assemblies carefully.

Recommended checks include:

• Confirming the complete part number
• Verifying the E3177-E0001 identification
• Checking board revision markings
• Inspecting connectors and terminals
• Comparing the physical configuration
• Checking for signs of overheating or component damage
• Using appropriate ESD protection

After installation, the equipment should be powered up according to the applicable service procedure. Communication, motor operation, feedback signals, and axis movement should then be verified before the equipment returns to production.

Replacement and Supply

Because the Lam Research 605-230312-311 is a specialized three-axis closed-loop stepper-driver PCBA, selecting a visually similar board is not recommended. The complete part number and Trust Automation identification should be matched before purchase.

We supply Lam Research E3177-E0001 / 605-230312-311 for semiconductor equipment maintenance, repair, replacement, and refurbishment. Customers can provide the board label, revision information, or equipment details when requesting a quotation so that compatibility can be checked more accurately.
