Eaton 101073659-001A000000521709A04 PCB Component Assembly
Eaton 101073659-001A000000521709A04

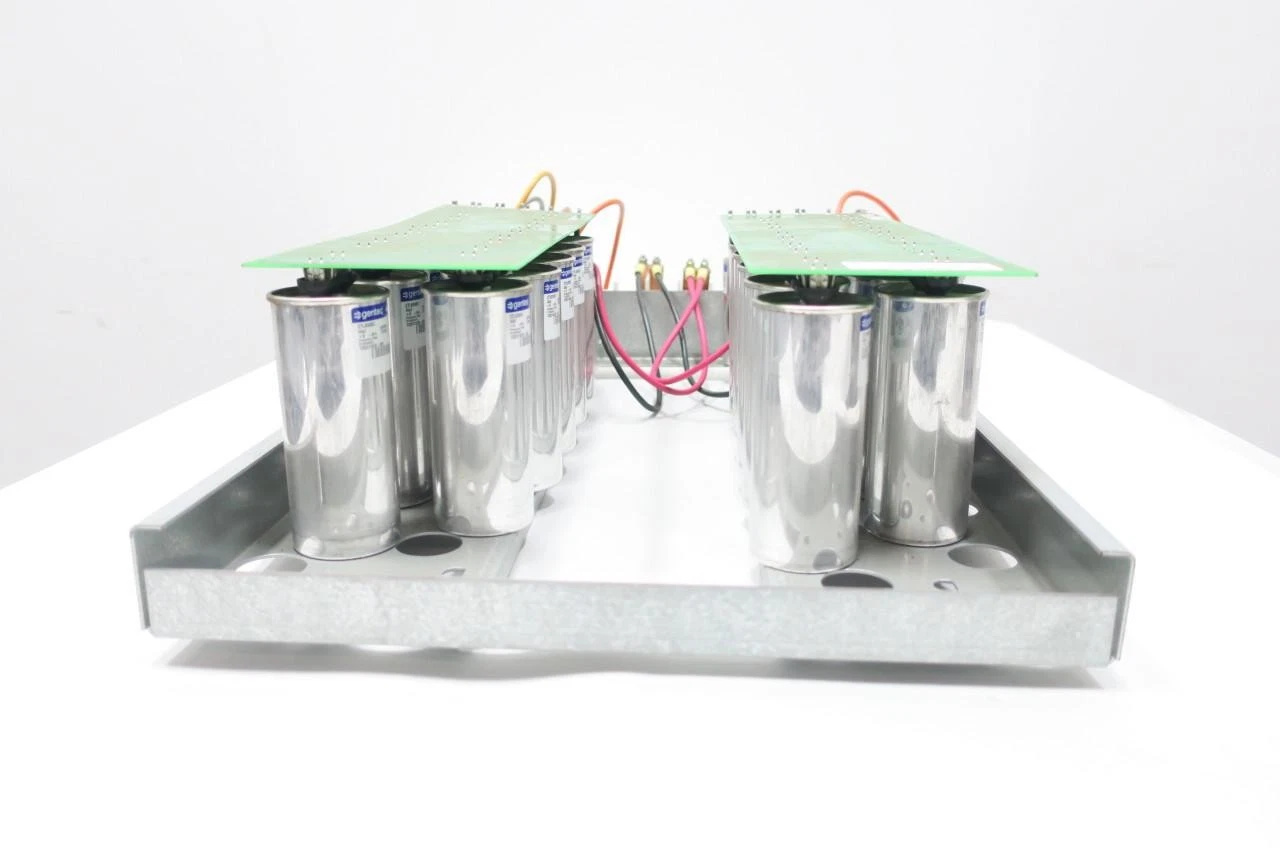

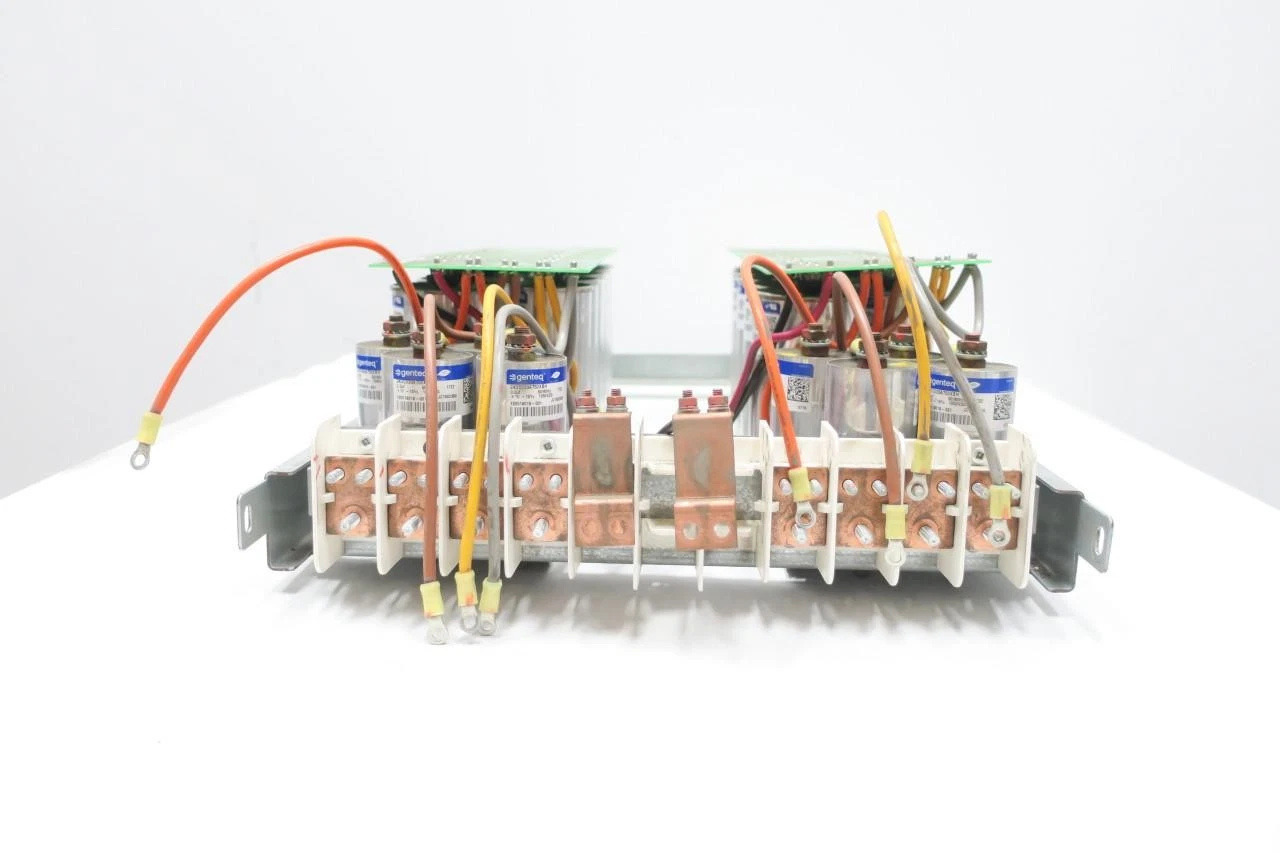

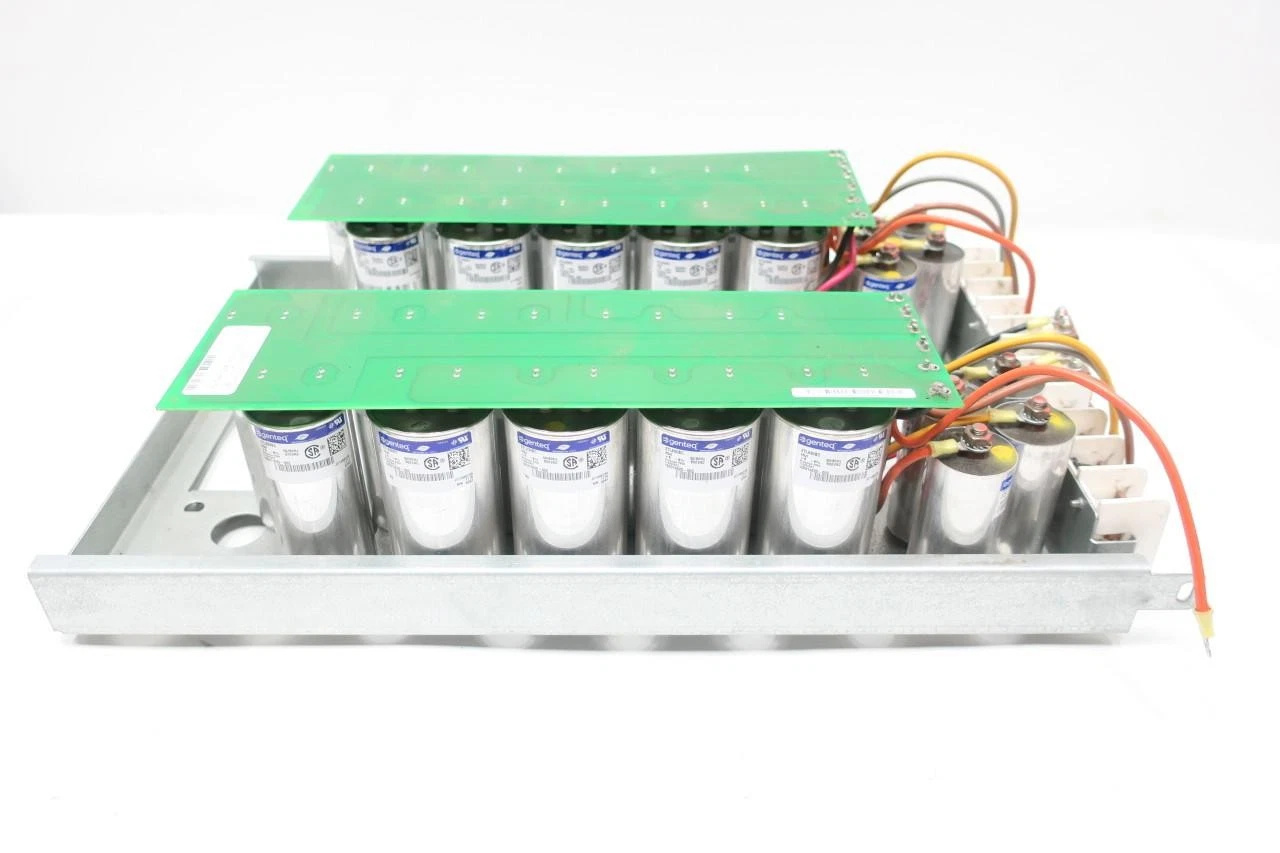

Eaton 101073659-001A000000521709A04 is a capacitor PCB assembly designed for power system applications. As part of Eaton‘s electrical accessory product line, it primarily functions to enhance circuit power factor, suppress voltage fluctuations, and provide short-circuit protection, ensuring stable and efficient operation of power systems.
Key Specifications
- Model Number: 101073659-001A000000521709A04
- Type: Capacitor PCB Assembly
- Rated Voltage: As per product datasheet, typical range of 400 V – 690 V
- Capacitance: Standard range of 0.47 µF – 2.2 µF
- Temperature Rating: -40 °C to +85 °C (Compliant with IEC 60384 standard)
- Protection Class: IP44, suitable for outdoor or humid environments
Product Features
- High Reliability: Constructed with high-quality ceramic dielectric and metallized film, ensuring long service life and low failure rate.
- Compact Design: Direct PCB soldering saves space, facilitating easy installation inside distribution cabinets or frequency converters.
- Excellent Electrical Performance: Low equivalent series resistance (ESR) and low leakage current effectively improve system power factor.
- Protective Design: IP44 protection class provides dust and water resistance, ideal for outdoor or humid working conditions.
- Wide Compatibility: Compliant with international standards such as IEC and UL, universally applicable in power distribution and automation systems worldwide.
Structure & Composition
- Capacitor Body: Ceramic or metallized film dielectric enclosed in a metal housing.
- Soldering Terminals: Standard PCB pads for automated surface mount soldering.
- Protective Housing: Metal or high-strength plastic casing offering IP44 protection.
- Identification Label: Printed with key parameters (model number, rated voltage, capacitance) for easy on-site identification and maintenance.
Typical Applications
- Power Factor Correction (PFC) circuits in distribution cabinets, frequency converters, and inverters.
- Power supply filtering and suppression in industrial automation control systems.
- Power systems requiring high reliability, such as rail transit, railway signaling, and avionics.
- Input filtering for renewable energy (solar PV, wind power) inverters.
- Any applications needing to improve power grid quality and reduce harmonics.
Installation & Maintenance Guidelines
- Pre-installation Check: Ensure PCB pads are clean and free of oxidation to guarantee soldering quality.
- Soldering Method: Reflow soldering or wave soldering is recommended. Control soldering temperature between 220 °C – 250 °C and duration within 30 seconds to prevent component overheating.
- Protective Measures: In humid or dusty environments, ensure the housing is intact to prevent moisture infiltration.
- Regular Inspection: Conduct visual inspections every 12 months to check for loose solder joints and damaged housings.
- Replacement Principle: Immediately replace the component if capacitance deviates by more than ±10%, leakage current is abnormal, or the housing is cracked.
- Storage Requirements: Store in a dry environment with temperature ranging from 15 °C – 25 °C, avoiding electrostatic discharge (ESD) damage.
————————————————————————————————————-
