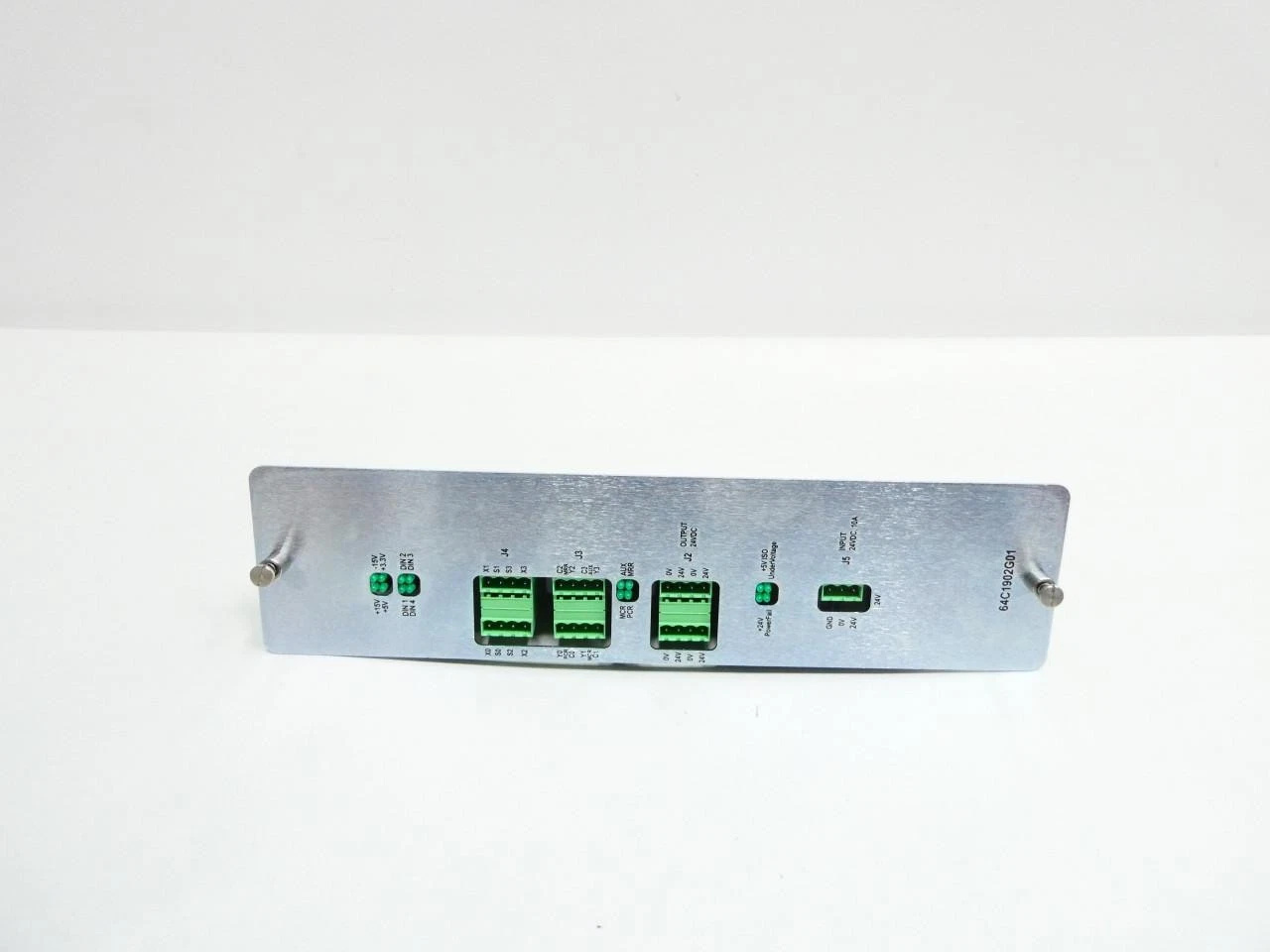

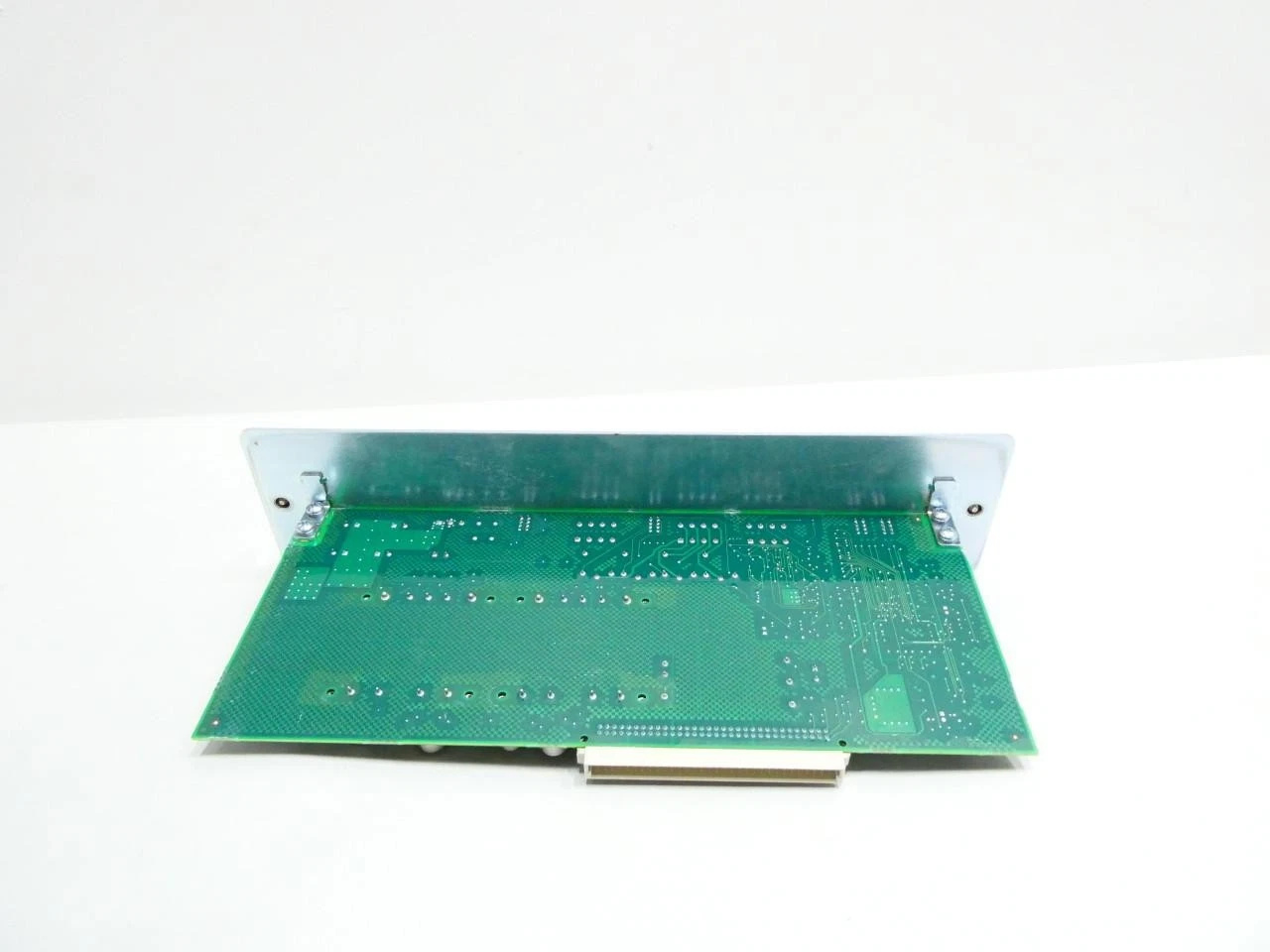

Eaton 64C1902G01

Eaton 64C1902G01 is a Control Module Circuit Board designed for industrial control systems. It is often used in conjunction with 64C1901H03 and belongs to Eaton‘s low-voltage power distribution and control product line. This module is mainly used to achieve centralized monitoring, signal acquisition, and logic control of on-site equipment, adapting to various electrical environments.

Key Technical Specifications

• Model: 64C1902G01 (also marked as 64C1902G01 / 64C1901H03)
• Voltage Rating: Complies with Eaton’s low-voltage product standards (typically 600 V AC)
• Interfaces: Multiple input/output terminals, supporting wiring for peripheral devices such as relays, contactors, and sensors
• Dimensions: Standard PCB size, suitable for conventional cabinet or panel installation
• Operating Temperature: -25 °C ~ +70 °C (meets industrial environment requirements)
• Protection Class: IP20 (for indoor use)

Product Features

• Modular Design: Adopts standardized PCB for quick on-site replacement and maintenance.
• High Reliability: Features Eaton’s low-voltage product design with resistance to high temperatures, vibration, and impact.
• Strong Compatibility: Seamlessly integrates with other Eaton control modules (e.g., 64C1321, 64C1327) and fieldbus systems.
• Easy Wiring: Provides clear terminal layout diagrams, facilitating on-site wiring and troubleshooting.
• Convenient Maintenance: Modular structure allows repair by replacing a single board, reducing downtime.

Structure and Composition

• Main PCB: Carries all circuits and components, providing power distribution, signal processing, and interface functions.
• Terminal Blocks: Divided into multiple groups including input, output, and common ground with clear identification.
• Protective Cover (Optional): Used for dust prevention and touch protection to enhance safety.
• Wiring Terminals: Screw-type or spring-type, supporting various wire gauges.

Typical Application Areas

• Industrial Automation Control Cabinets: Used for front-end signal acquisition and control of PLC and DCS systems.
• Electromechanical Equipment Monitoring: Such as start-stop control and status indication of pump stations, compressors, and conveyor systems.
• Building Automation: Cooperates with building management systems to achieve centralized control of subsystems like lighting and air conditioning.
• Energy Management: Realizes real-time monitoring of parameters such as current, voltage, and power in distribution cabinets.

Installation and Maintenance Guidelines

• Installation Location: Should be fixed on standard 19-inch rails in distribution cabinets or control cabinets, ensuring good ventilation.
• Wiring Specifications: Wire according to the terminal numbers in the product manual, use wires that meet the rated current, and avoid cross wiring.
• Protective Measures: Install a protective cover or use a protective box in humid or dusty environments.
• Regular Inspection: Check terminal tightness and whether the PCB surface has signs of corrosion or overheating every 6 to 12 months.
• Replacement Process: In case of failure, first cut off the power, record the original wiring positions, pull out the old board and insert the new board directly, then perform functional testing after reset.
