Eaton MMX34AA014F0-0 Low Voltage AC Variable Frequency Drive

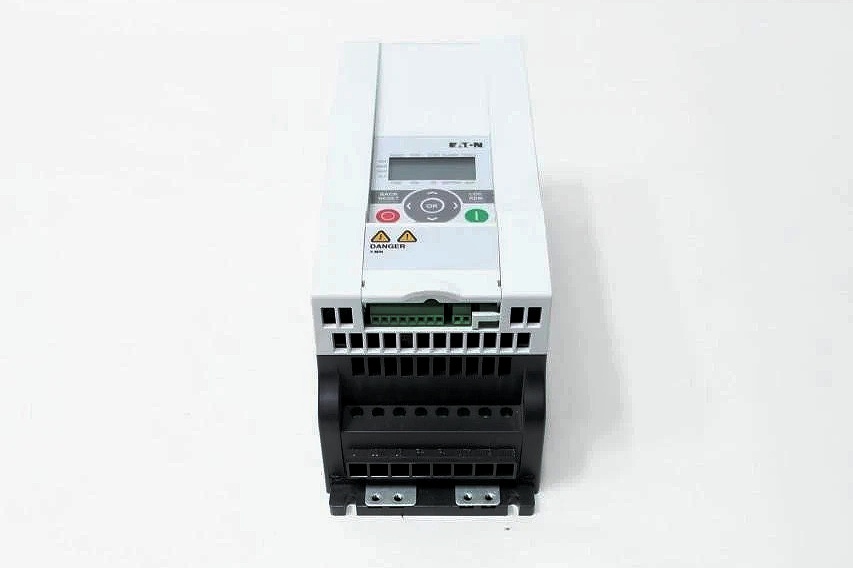

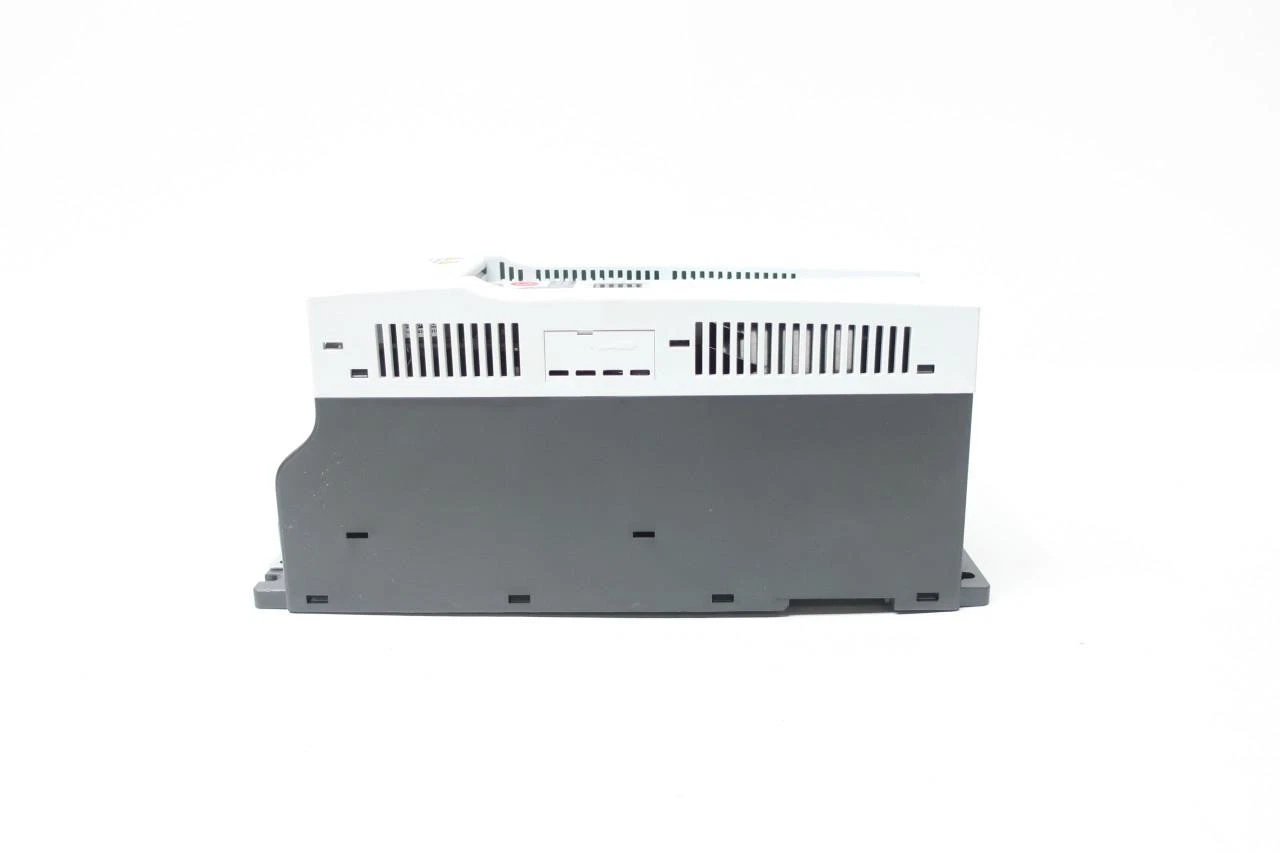

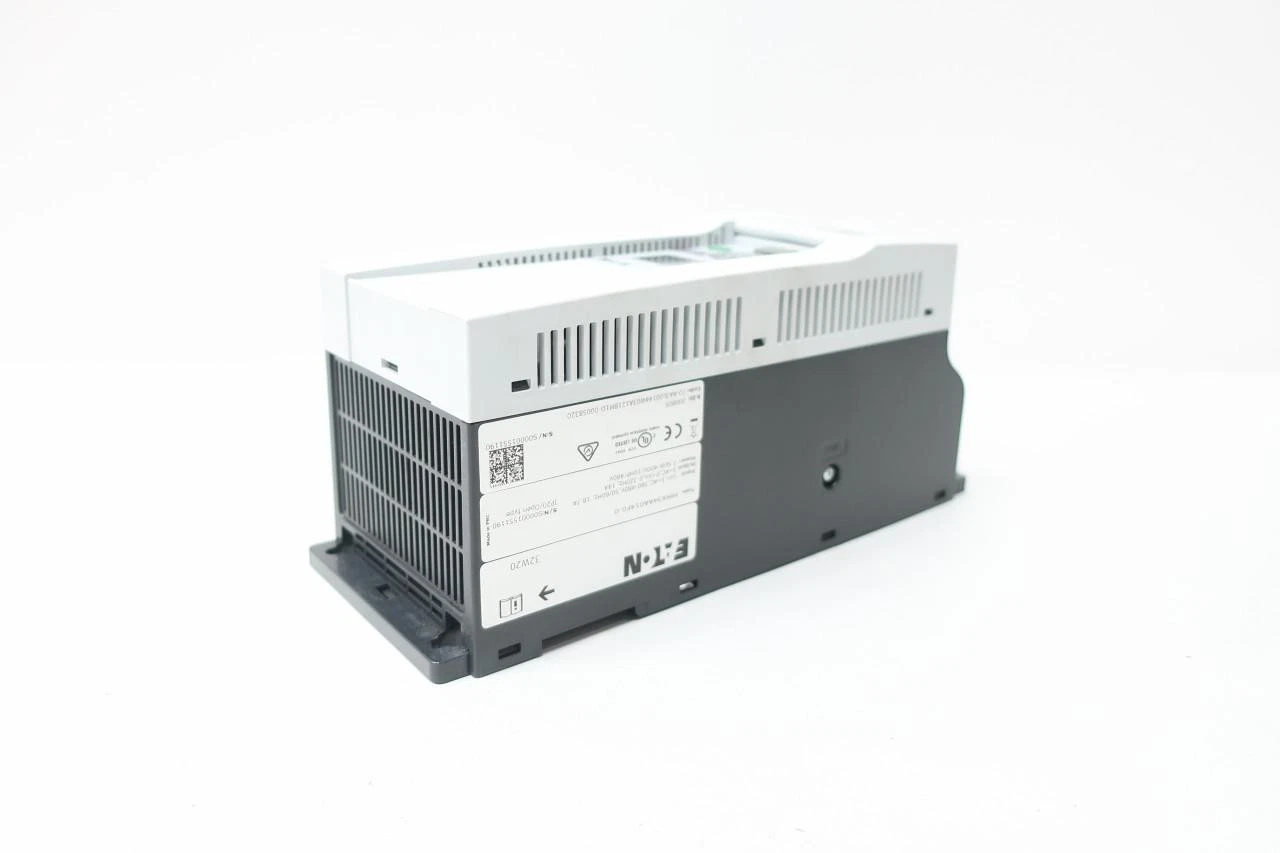

Eaton MMX34AA014F0-0
Eaton MMX34AA014F0-0 is a low-voltage AC frequency inverter belonging to the M-Max series. Designed specifically for industrial drive applications, it delivers reliable vector control and a wide range of input/output voltage options.
Key Technical Specifications
- Rated Power: Suitable for motors ranging from 0.75 kW to 5 kW (approximately 1 HP to 6.7 HP)
- Input Voltage: 380 ~ 480 V AC (200 ~ 240 V low-voltage version optional)
- Output Current: Up to 18.7 A (for 5 kW class motors)
- Control Method: Sensorless Vector Drive
- Protection Class: IP20 (for indoor installation)
- Braking & Filtering: No built-in braking module or EMI filter; external accessories required
- Communication Interfaces: Supports industrial fieldbuses including Modbus RTU, EtherNet/IP, and Profibus
Product Features
- Efficient Vector Control: Enables smooth start/stop, torque retention, and fast response. Ideal for loads such as pumps, fans, and compressors.
- Compact Design: Small unit size facilitates cabinet assembly and reduces system footprint.
- Flexible Configuration: Optional input voltages, power ratings, and communication protocols to meet diverse on-site needs.
- Reliability: Eaton utilizes mature power modules and thermal management design to ensure stability during long-term continuous operation.
- Easy Maintenance: Modular structure and intuitive parameter setting interface simplify on-site commissioning and fault diagnosis.
Internal Structure & Components
- Power Module: Equipped with IGBT/SiC switching elements for high-frequency PWM control.
- Control Unit: DSP/microprocessor implements vector algorithms and protection logic.
- Heat Dissipation System: Internal air cooling or external heat sinks maintain operating temperatures within safe limits.
- Input/Output Terminal Blocks: IEC standard terminals for easy on-site wiring.
- Communication Card: Optional fieldbus or Ethernet communication modules.
Typical Application Areas
- Pump Systems: Water supply, sewage treatment, and chemical circulation pumps.
- Fans/Blowers: Ventilation, air conditioning, and industrial exhaust systems.
- Compressors: Air, nitrogen, and refrigeration compressors.
- Conveying Equipment: Belt conveyors and screw conveyors.
- Other Low-Voltage Motor Drives: Such as concrete mixers and packaging machinery.
Installation & Maintenance Guidelines
- On-Site Wiring: Comply with IEC 60204-1 standards to ensure correct phase sequence and grounding. Equip input power with appropriate fuses or circuit breakers.
- Heat Dissipation Requirements: Maintain airflow around heat sinks; install forced air cooling fans if necessary.
- Parameter Setting: Use Eaton’s Drive Explorer software or on-site panel to configure basic parameters (rated current, acceleration/deceleration time, braking mode).
- Protection Functions: Enable built-in protections including overcurrent, overvoltage, undervoltage, overheating, and short circuit to prevent equipment damage under abnormal conditions.
- Regular Inspection: Check terminal tightness, heat sink cleanliness, and communication line integrity every 6 months. Update firmware if needed to obtain the latest features and security patches.
————————————————————————————————————-
