Eaton MP-3010 66D2205G01 Motor Protection Module

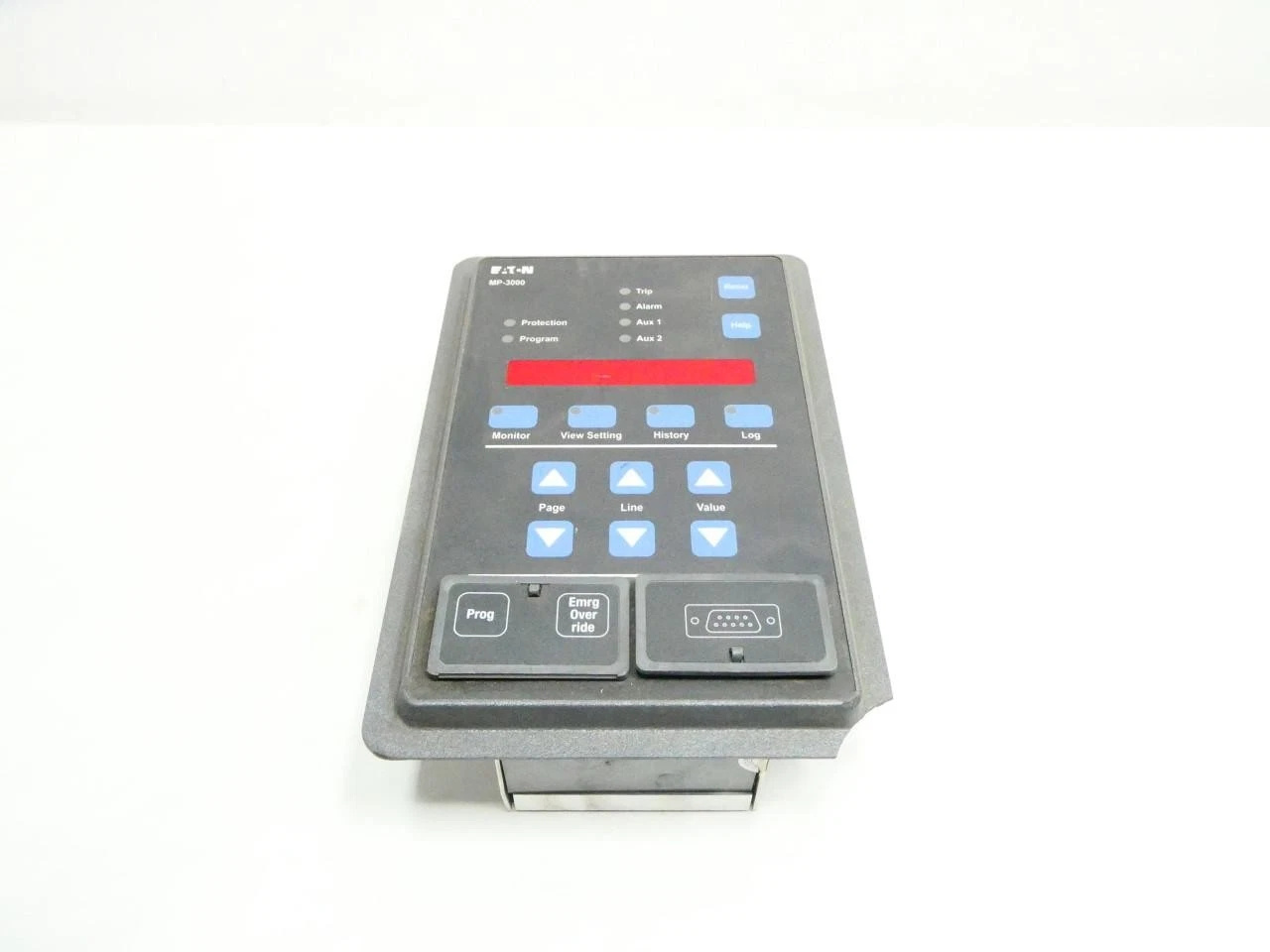

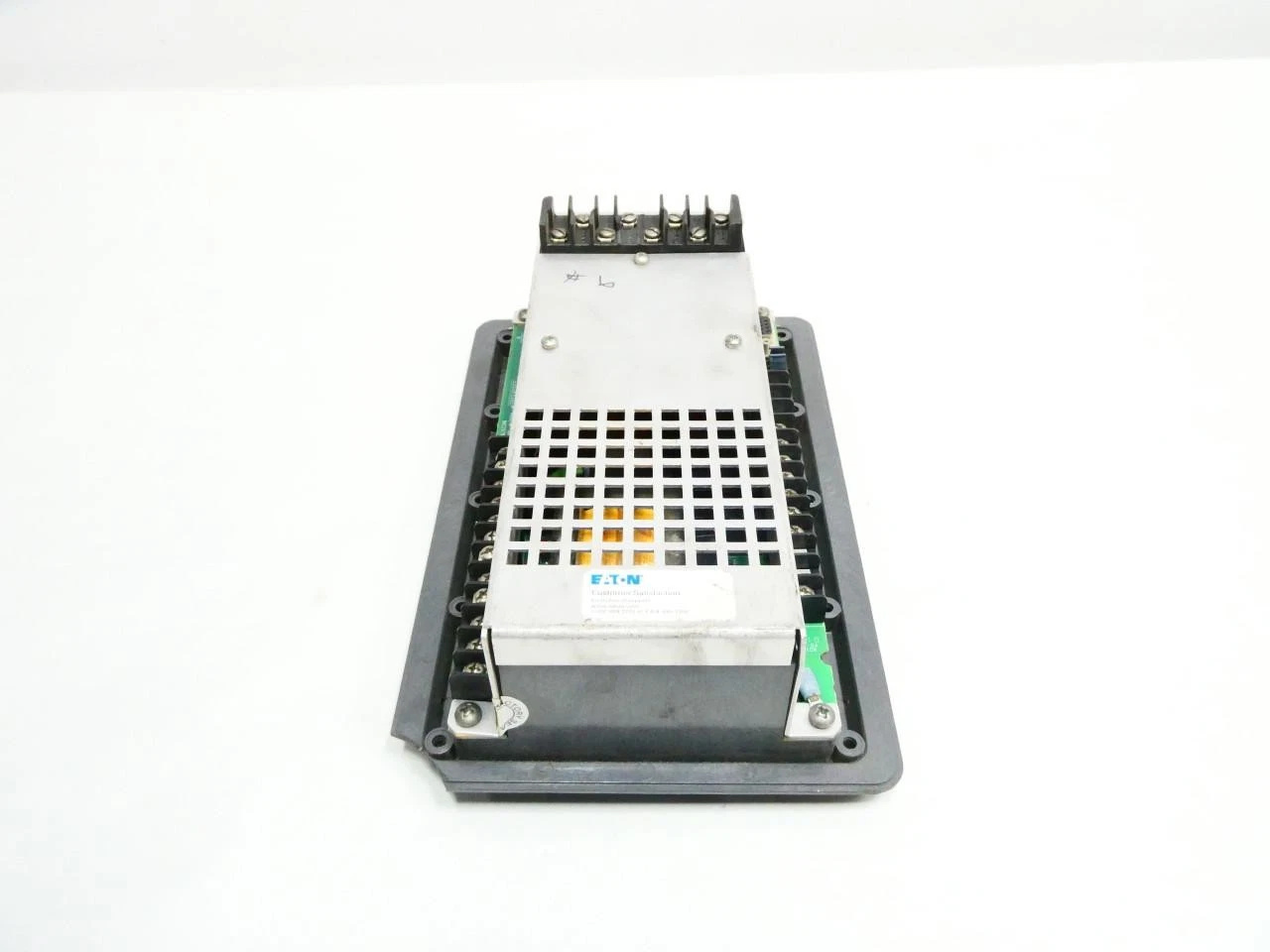

Eaton MP-3010 66D2205G01
Eaton MP‑3010 is a high-performance power supply/motor protection module designed for industrial and power systems. It features a compact aluminum alloy housing and supports DIN rail mounting, making it suitable for various voltage and current requirements. The module integrates multiple protection functions including overcurrent, overvoltage, undervoltage, and transient protection. It also offers fault logging and communication interfaces, enabling remote monitoring and parameter programming.
Key Technical Specifications
- Rated Power: 300 W
- Input Voltage: 100 ~ 240 VAC (wide range)
- Output Voltage: 24 VDC, Rated Current: 12.5 A
- Operating Temperature: -40 °C ~ +70 °C (some data sources indicate -40 °C ~ +85 °C)
- Protection Class: IP67 (dustproof and waterproof)
- Dimensions: Approximately 140 mm × 60 mm × 30 mm
- Weight: Approximately 0.3 kg
- Mounting Method: Screw fixing or DIN rail plug-in for quick on-site assembly
- Certifications: UL, CE, CB and other international safety certifications
Product Features
- Multifunctional Protection: Integrates overcurrent, short circuit, overvoltage, undervoltage, and transient suppression to enhance system reliability.
- High Efficiency & Low Ripple: Adopts advanced switching power supply technology with efficiency > 90% and output ripple < 50 mVpp, ensuring stable power quality.
- Modular Design: Compact and lightweight, suitable for installation in space-constrained control cabinets or enclosures.
- Easy Maintenance: Plug-in structure enables quick fault diagnosis and replacement. Supports fault event logging for post-analysis.
- Communication & Programmability: Equipped with standard communication interfaces (e.g., Modbus, Profibus). Users can customize protection thresholds and logic via software.
- Strong Environmental Adaptability: Wide operating temperature range and IP67 protection rating, ideal for harsh industrial environments.
Structure & Composition
- Power Module Body: Includes rectification, filtering, power switching, and control circuits.
- Terminal Block/Wiring Terminals: Ensures reliable connection of input, output, and signal wires.
- Heat Sink: Metal heat dissipation structure for thermal management during high-power operation.
- Communication Interface Board (Optional): Enables network connection with upper computers or SCADA systems.
- Mounting Bracket: DIN rail clips or screw fasteners for quick assembly.
Typical Application Fields
- Power Systems: Power supply protection and monitoring for distribution stations and substations.
- Industrial Automation: Power supply for robots, CNC machine tools, and PLC control cabinets.
- Energy Equipment: Power management for wind power, photovoltaic inverters, and energy storage systems.
- Communication & Data Centers: Overvoltage/undervoltage protection for UPS and server power supplies.
- Medical Equipment: Diagnostic and treatment instruments requiring high power quality.
Installation & Maintenance Guidelines
- Pre-installation Check: Ensure the power supply is disconnected. Verify terminal markings and polarity.
- Fixing Method: Use DIN rail clips or screws to secure the module, ensuring it is level and stable.
- Wiring: Connect 100-240 VAC to the input terminal. Use appropriately sized wires for the output load and ensure connections are tight to prevent loosening.
- Ventilation & Heat Dissipation: Maintain sufficient heat dissipation space around the module and avoid blocking the heat sink.
- Parameter Setting: Use Eaton’s configuration software or on-site panel to set protection thresholds (current, voltage, delay, etc.) and save to the module.
- Function Testing: After power-on, check indicator lights and communication status. Perform a no-load operation test. If necessary, use external test equipment to simulate overcurrent/overvoltage conditions and verify protection actions.
- Regular Maintenance: Inspect terminal tightness, heat sink cleanliness, and fault records every 6-12 months. Replace aging components promptly.
————————————————————————————————————-
