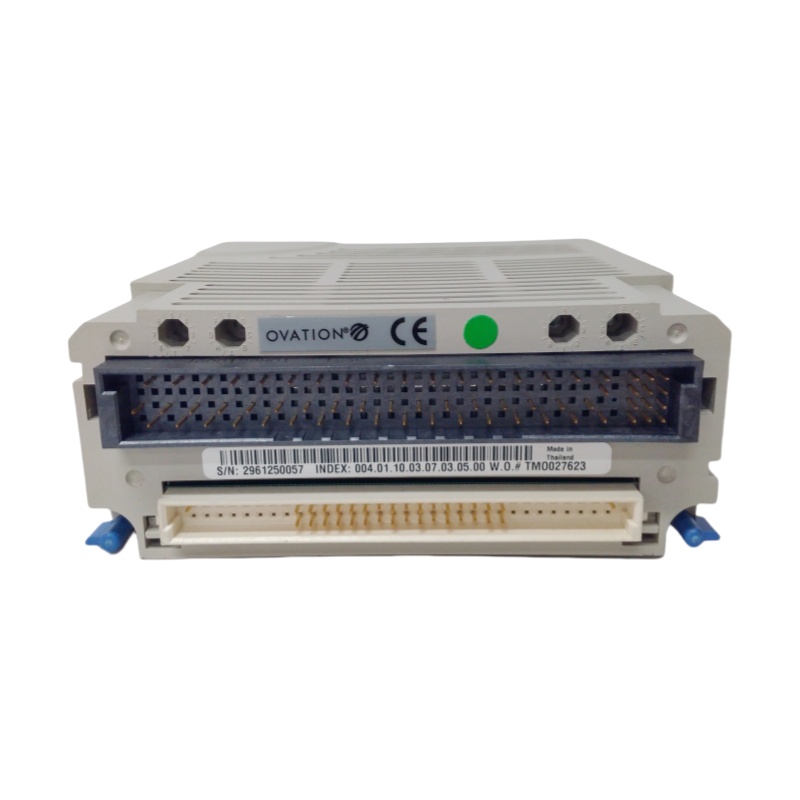

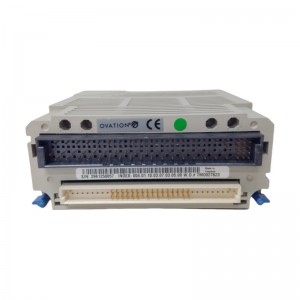

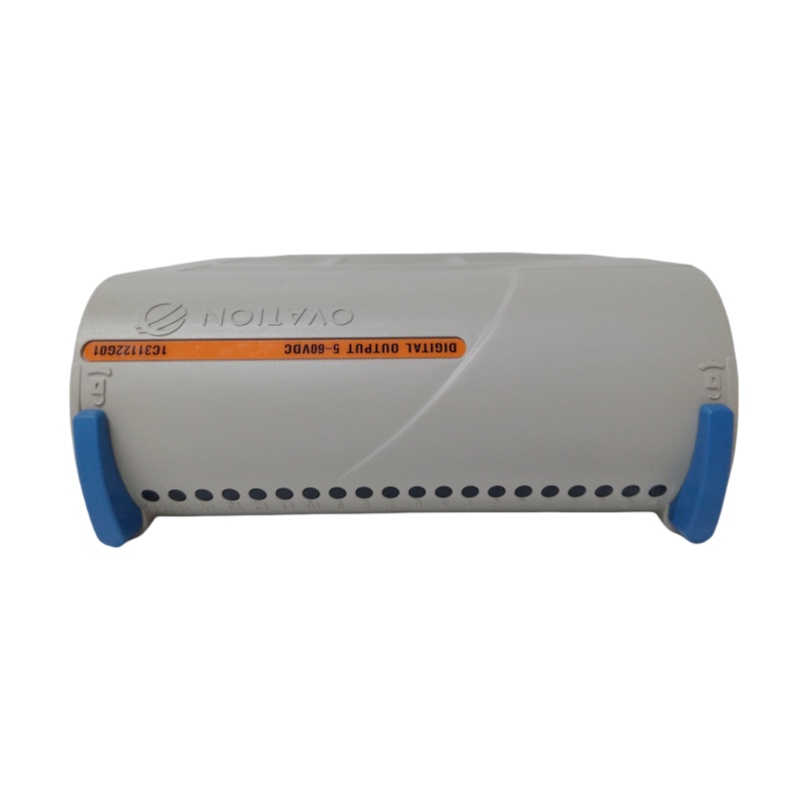

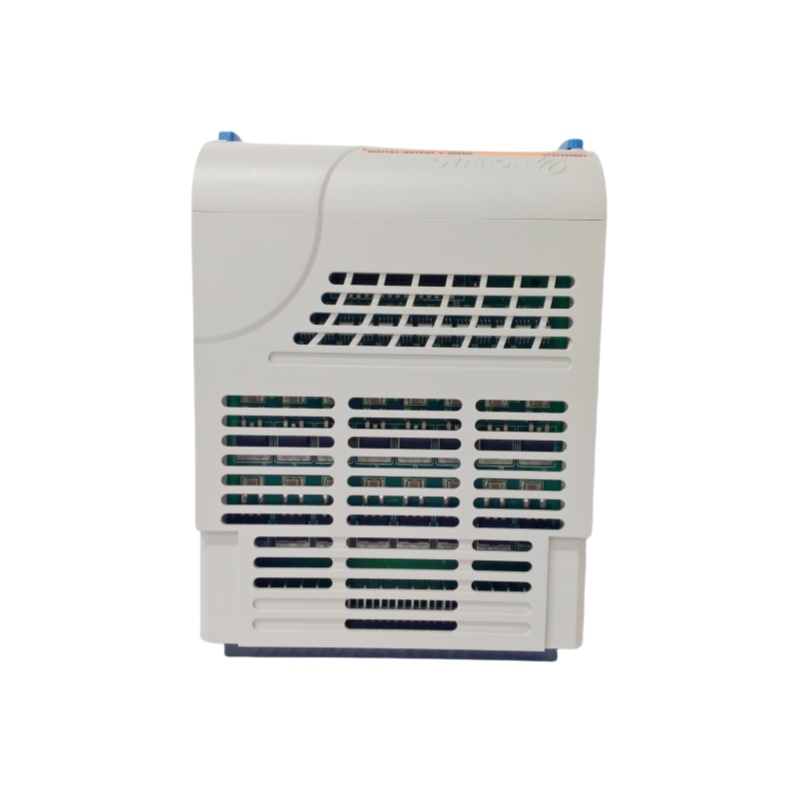

EMERSON 1C31122G01 Output/Input I/O Module
EMERSON 1C31122G01
1. Product Overview
1C31122G01 is a digital output/input I/O module used in Emerson’s Ovation (or DeltaV) Distributed Control System (DCS). It converts the system’s digital signals into actual control actions, such as valve opening/closing and motor starting/stopping. This module plays a crucial role in process control across industries including power generation, petrochemicals, and water treatment.
2. Key Specifications
| Specification | Description |
|---|---|
| Model Number | 1C31122G01 |
| Number of Channels | 16 channels (digital output) or 8 channels (digital/analog input, depending on the specific sub-model) |
| Output Type | Relay/transistor digital output, voltage range 5‑60 V DC (24 V DC is commonly used) |
| Input Voltage | 24 V DC (for digital input) |
| Operating Temperature | –20 °C ~ +60 °C |
| Installation Method | DIN rail mounting, with screw terminal wiring |
| Dimensions/Weight | Approximately 14.2 × 9.2 × 6.2 cm, weight ranging from 0.5 kg to 2 kg |
| Current/Power Consumption | Output current: 0.5 A (digital output); Input current: approximately 150 mA |
| Electrical Isolation | Isolation design is provided to enhance system safety |
3. Product Features
- High Reliability: Equipped with industrial-grade components and anti-interference design, enabling it to adapt to harsh environments.
- Modular Design: Allows flexible combination, facilitating on-site installation, maintenance, and expansion.
- Good Compatibility: Seamlessly integrates with the Emerson Ovation/DeltaV system and supports standard I/O communication protocols.
- Multiple Output Modes: Supports various digital outputs such as relay and transistor to meet the needs of different actuators.
- Electrical Isolation: Improves system safety and prevents the spread of faults.
- Easy Diagnostics: Built-in diagnostic functions to monitor abnormalities like grounding issues, short circuits, and timeouts.
4. Structure and Composition
- Module Body: Features a metal housing, which contains digital output drive circuits, isolation transformers, and terminal blocks inside.
- Terminal Blocks: Screw-type terminal blocks, corresponding to the power supply and signal lines of each channel respectively.
- Indicator Lights: Each channel is equipped with a status indicator light, allowing for quick on-site judgment of the channel status.
- Mounting Bracket: Complies with DIN rail specifications, enabling quick assembly inside the cabinet.
5. Typical Application Fields
- Petrochemical Industry: Used for on-off control of valves, pumps, and compressors.
- Power System: Applied in the digital control of circuit breakers and relay protection devices.
- Water Treatment: Utilized for the automatic control of valves and chemical dosing pumps.
- Manufacturing Industry: Employed for starting/stopping production line equipment and monitoring equipment status.
- Building Facilities: Used for digital output control of HVAC (Heating, Ventilation, and Air Conditioning) systems and fire protection systems.
6. Installation and Maintenance Guidelines
Installation
- Confirm the specifications of the cabinet’s DIN rail and fix the module using screws.
- Connect the power supply (24 V DC) and signal lines according to the wiring diagram, ensuring that the terminals of each channel are securely fastened.
- Check whether the communication/electrical connection between the module and the master station (Ovation/DeltaV) complies with the specifications.
Commissioning
- Perform channel mapping and parameter configuration through system engineering software (e.g., Ovation Control Builder).
- Verify the output status of each channel using the module’s built-in indicator lights or the system’s diagnostic functions.
Daily Maintenance
- Regularly check the tightness of the terminals to prevent signal failure caused by loosening.
- Monitor the module’s temperature and current to ensure it operates within the rated range.
- Use the system’s diagnostic logs to promptly detect and handle abnormalities such as grounding faults, short circuits, or timeouts.
————————————————————————————————————-
