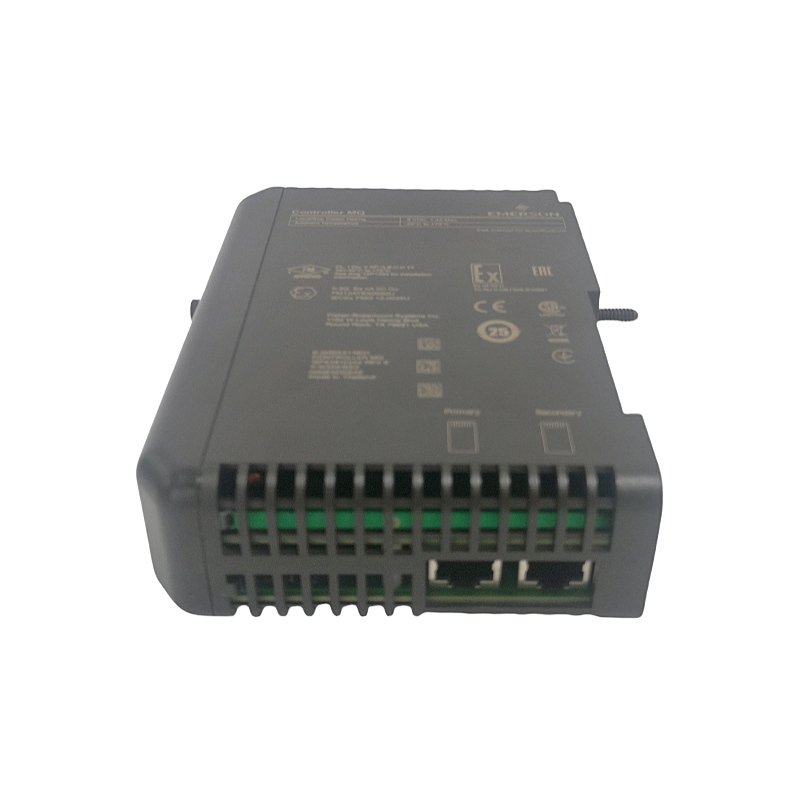

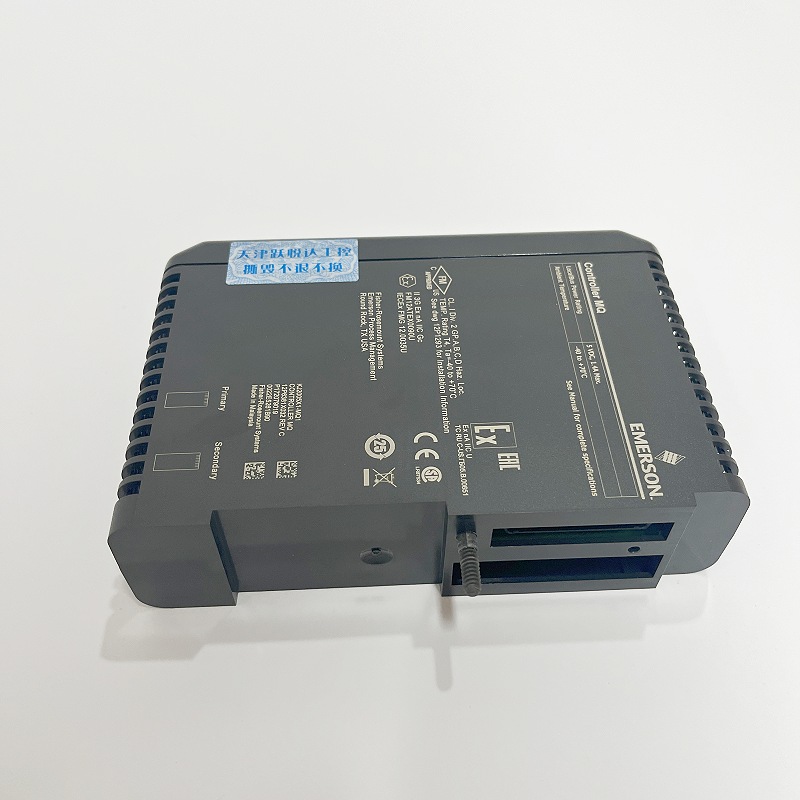

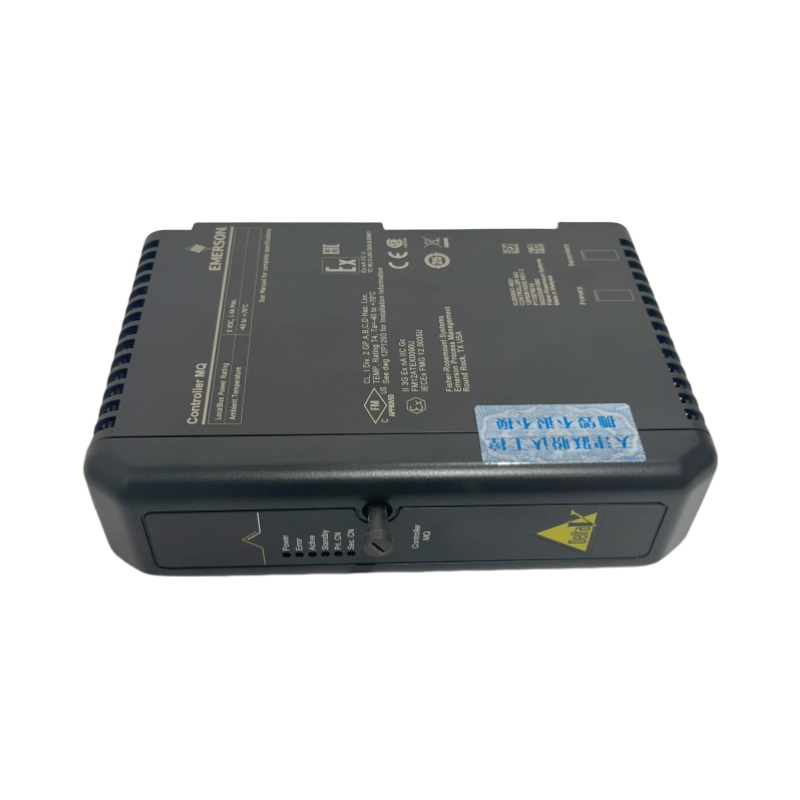

EMERSON VE3008 CE3008 Control Module
EMERSON VE3008 CE3008
1. Overview
The VE3008 and CE3008 are core control modules in the Emerson DeltaV Distributed Control System (DCS). Featuring a modular and intelligent design, they enable communication and control between field devices and the DeltaV control network. These modules are compatible with earlier DeltaV systems, support a variety of advanced control functions (including PID, function blocks, and alarm management), and come with self-addressing capabilities and an easy-to-configure user interface.
2. Key Specifications
| Specification | Description |
|---|---|
| Processor | Intel series multi-core CPU with a clock speed > 1 GHz |
| Memory | Configurable, with a typical capacity ≥ 1 GB |
| Storage | Hard disk or SSD, with a capacity ≥ 1 GB |
| Power Supply | 24 V DC (12–32 V optional) |
| Input/Output | 8 DI / 4 DO (32 channels for some models) |
| Communication Interfaces | 2 × Ethernet, USB, Modbus/TCP-IP, Profibus, EtherCAT, etc. |
| Operating Temperature | –10 °C ~ +60 °C (industrial grade) |
| Dimensions | Approximately 233 mm × 160 mm × 40 mm (rack-mounted) |
| Weight | ≈ 2 kg |
| Reliability | Redundant design for power supply, network, and storage; equipped with multiple protections against overload, short circuit, overvoltage, and overtemperature |
3. Product Features
- Modular Design: Can be flexibly installed on racks or guide rails, facilitating maintenance and quick component replacement.
- High Performance: Equipped with a powerful CPU and large-capacity memory to meet the requirements of complex control algorithms and big data processing.
- High Reliability: Redundant power supply/network and comprehensive safety protection functions ensure continuous system operation.
- Multi-Protocol Compatibility: Supports industrial communication standards such as Ethernet, Modbus, Profibus, and EtherCAT.
- User-Friendly: Features self-addressing, a graphical configuration interface, and a built-in high-resolution LCD, reducing debugging difficulty.
- Scalability: I/O points can be flexibly increased via DeltaV I/O modules to meet the needs of projects of different scales.
4. Structure and Composition
- CPU Motherboard: Houses the processor, memory, and storage media.
- Backplane: Provides power distribution, bus connection, and redundant channels.
- I/O Expansion Board: Digital/analog input and output modules, which can be selected based on on-site requirements.
- Communication Interface Card: Supports Ethernet, USB, fieldbus, and other interfaces.
- Power Module: 24 V DC main power supply with overload/short-circuit protection.
5. Application Fields
- Process Industry: Continuous process control in oil, natural gas, chemical engineering, metallurgy, water treatment, and power generation.
- Manufacturing Industry: Automated assembly lines, robot control, and packaging machinery.
- Energy Management: Power distribution automation, energy monitoring, and optimization.
- Others: Any industrial site that requires high reliability, real-time control, and data acquisition.
6. Installation and Maintenance Guidelines
| Step | Guidelines |
|---|---|
| On-Site Preparation | Confirm that the rack or guide rail dimensions, power supply voltage, and ambient temperature meet the specifications. |
| Mechanical Installation | Fix the VE3008 on the rack/guide rail, ensure the bolts are tightened, and leave sufficient space for heat dissipation. |
| Electrical Wiring | Connect the 24 V DC power supply, access the on-site I/O terminals, and use a protective junction box to prevent incorrect connection. |
| Network Configuration | Perform self-addressing via the Ethernet port and configure the IP address using DeltaV Engineering software. |
| Functional Testing | After startup, check the power indicator and communication status, and perform I/O detection and basic control logic verification. |
| Daily Maintenance | Regularly inspect the power supply and cooling fans, and clean dust; perform firmware upgrades and configuration backups every six months. |
| Fault Diagnosis | Locate faults using the built-in diagnostic logs and DeltaV monitoring platform, and replace the corresponding modules if necessary. |
————————————————————————————————————-
