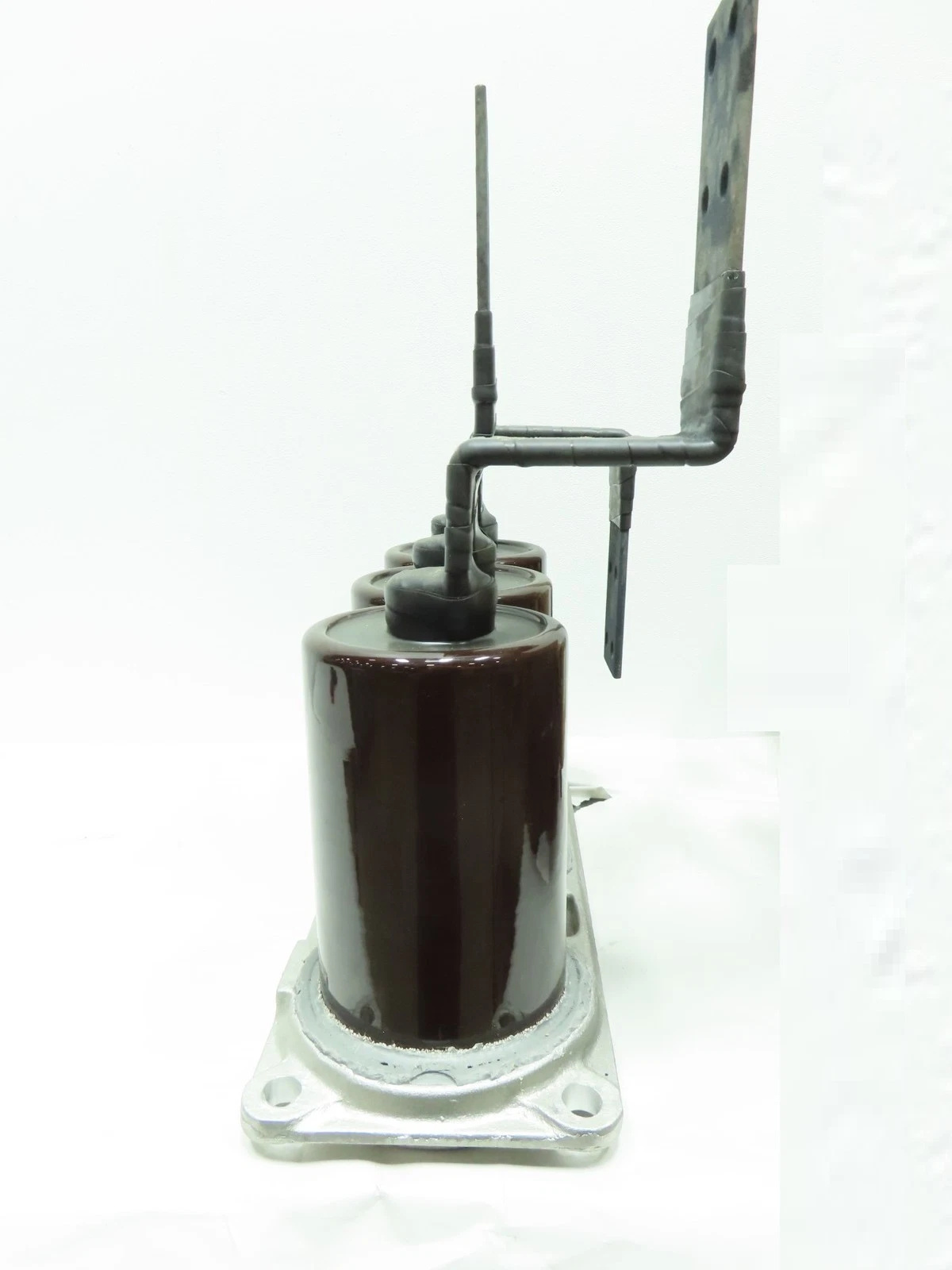

GE 0115C3651G001

Overview

Main Specifications

• Rated Capacity: 25 kVAR – 1,100 kVAR for single-phase units; 300 kVAR – 400 kVAR for three-phase units.
• Voltage Class: Suitable for operating voltages ranging from 2.4 kV to 25 kV.
• Compliant Standards: Meets international standards such as IEC 60871, IEEE 18, and CSA C22.2.

Product Features

• High Reliability: Adopts mature oil-immersed or dry-type structure, with resistance to high voltage and impact.
• Modular Design: Units can be flexibly combined according to requirements, enabling rapid capacity expansion or reduction.
• Low Loss: Uses low dielectric loss materials internally, resulting in low operating energy consumption.
• Easy Maintenance: The modular structure allows unit replacement and maintenance without large-scale power outages.

Structure and Composition

• Capacitor Unit: Includes capacitor plates, insulating oil, or solid insulators.
• Enclosure and Support Structure: Metal or composite material enclosure, providing mechanical strength and protection.
• Terminal Blocks: Meet high-voltage wiring requirements, facilitating on-site connection.
• Monitoring and Protection Devices: Built-in sensors for temperature, oil level, or leakage detection, enabling online status monitoring.

Application Fields

• Reactive power compensation and voltage regulation for transmission lines.
• Power factor correction for distribution networks.
• Power quality improvement in large industrial parks, mines, and ports.
• Grid support for renewable energy integration systems (e.g., wind power, photovoltaic power).

Installation Key Points

• Site Preparation: Select a dry, well-ventilated, and earthquake-resistant base. Ensure the ground is level and has sufficient load-bearing capacity.
• Wiring Specifications: Conduct high-voltage wiring strictly in accordance with the voltage class and phase sequence. Use terminal blocks that comply with IEC standards.
• Protection Measures: Install lightning protection devices and grounding systems to prevent overvoltage impacts.
• Commissioning Inspection: Before power-on, conduct tests on insulation resistance, the integrity of oil level (or solid insulators), and the functionality of monitoring devices.

Maintenance

• Regular Inspection: Check the integrity of the enclosure, the tightness of wiring connections, and the alarm records of monitoring devices every 6 – 12 months.
• Oil-Immersed Type: For oil-immersed structures, monitor oil level, oil temperature, and oil quality. Replace or filter the oil if necessary.
• Solid Insulation Type: Pay attention to the temperature and humidity of insulators to prevent local overheating.
• Online Monitoring: Use built-in sensors for real-time status monitoring to detect abnormalities in a timely manner and conduct preventive maintenance.
• Unit Replacement: The modular design allows replacement of a single capacity unit without interrupting system operation, reducing downtime.

————————————————————————————————————-
