GE EVEREST

1. Overview

2. Main Specifications

• Optical Zoom: The PTZ140 model offers 25× optical zoom + 1× digital zoom (totaling approximately 300×), while the PTZ100 model provides 10× optical zoom + 4× digital zoom (approximately 40×).
• Resolution: 470 HTV lines (about 1280×1024 pixels), capable of capturing thin wires with a diameter of 1/2 mil (around 12 μm).
• Lighting System: 12 dual-light-source lamps of 35 W, featuring both spot and flood light modes; maximum total power of 80 W (Turbo mode).
• Working Distance: It can distinguish thin wires of 0.5 mil (12 μm) within a range of 1.8 m (6 ft).
• Size and Weight: The overall length is approximately 287 mm, with a diameter of 139 mm, allowing passage through 140 mm openings; the aluminum body weighs about 3 kg, and the stainless steel option weighs around 6 kg.
• Power Supply: AC 100-240 V, 50-60 Hz, 3 A; equipped with a 32-bit Pentium-class embedded processor internally.
• Storage: Built-in removable CompactFlash storage medium, supporting the capture of still images and motion videos.
• Interfaces: Composite and S-Video video input/output, and USB 2.0 real-time streaming output.
• Temperature Alarm: A built-in temperature sensor provides three-level temperature alerts to prevent damage from high temperatures.

3. Product Features

• Omni-directional Lighting Control: Switchable between spot and flood light modes to meet lighting needs in different environments.
• High-magnification Zoom: Combined optical and digital zoom for long-distance detailed observation.
• Integrated Protective Structure: The camera head adopts a fully enclosed design with no exposed wires, making it suitable for harsh environments.
• Handheld Controller: Equipped with a 10-inch color VGA display and dual joysticks, supporting real-time images, measurements, character generation, and user logo display.
• Temperature Monitoring: The system is equipped with a temperature alarm to enhance device safety.
• Modular Assembly: Optional aluminum or stainless steel body, different lighting configurations, and removable memory cards for quick on-site replacement.
• Multimedia Recording: Supports the storage of still images, videos, Mini-DV recordings, and digital files for easy post-analysis.

4. Structure and Composition

• Camera Head: Includes an optical lens, dual light sources, a temperature sensor, an optical zoom mechanism, and a protective housing.
• Handheld Controller: Built-in color VGA display, dual joysticks, and buttons for zooming in/out, adjusting lighting, measuring, and generating characters.

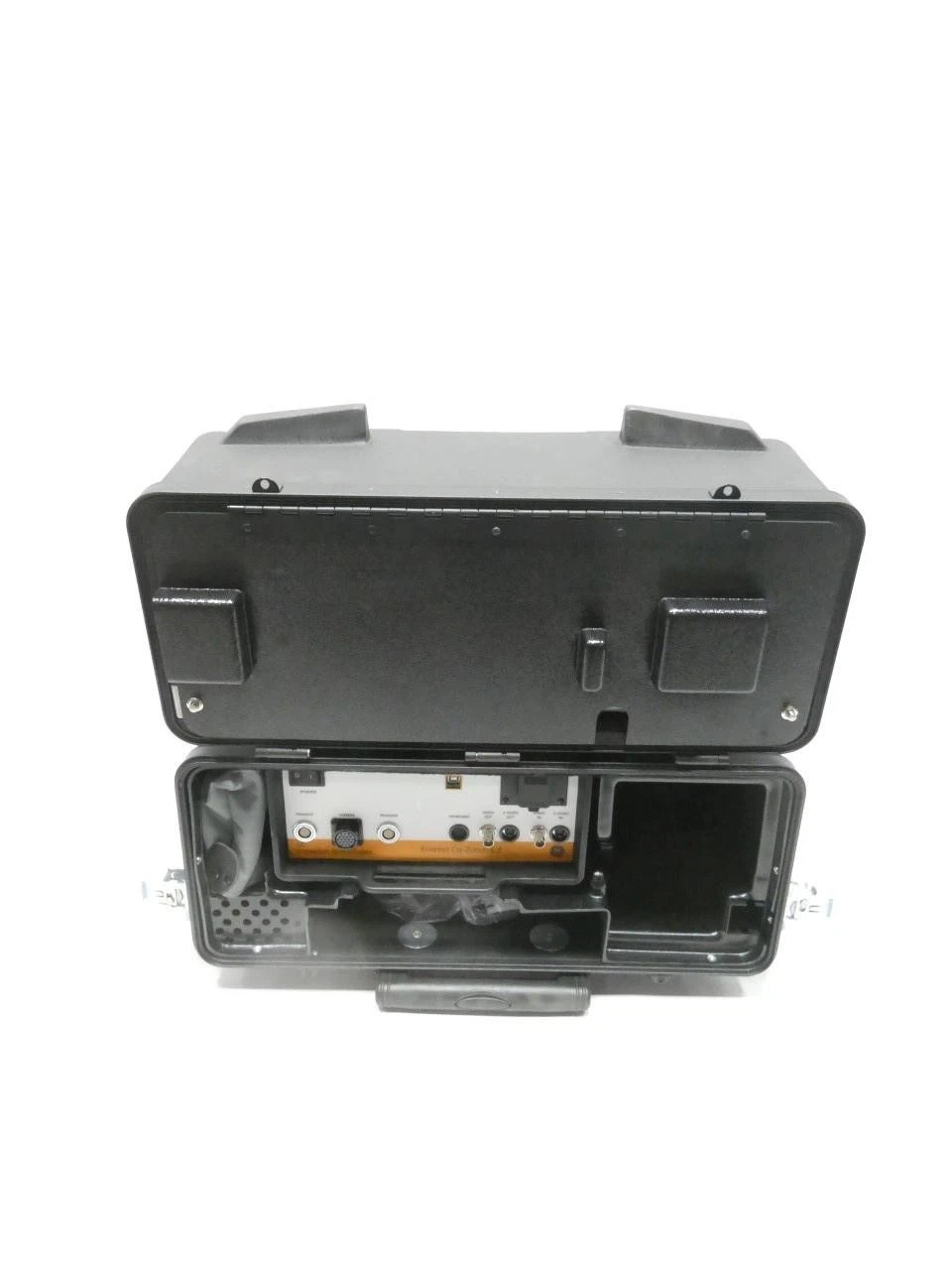

• Camera Control Unit (CCU): Available in portable or boxed versions, with a built-in 32-bit processor, CompactFlash storage, video I/O interfaces, and a power management module.
• Power Supply and Cable System: Comprises high-voltage resistant power cables, signal transmission cables (up to 500 m in length), and dedicated waterproof cables for underwater operations.

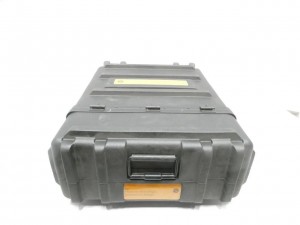

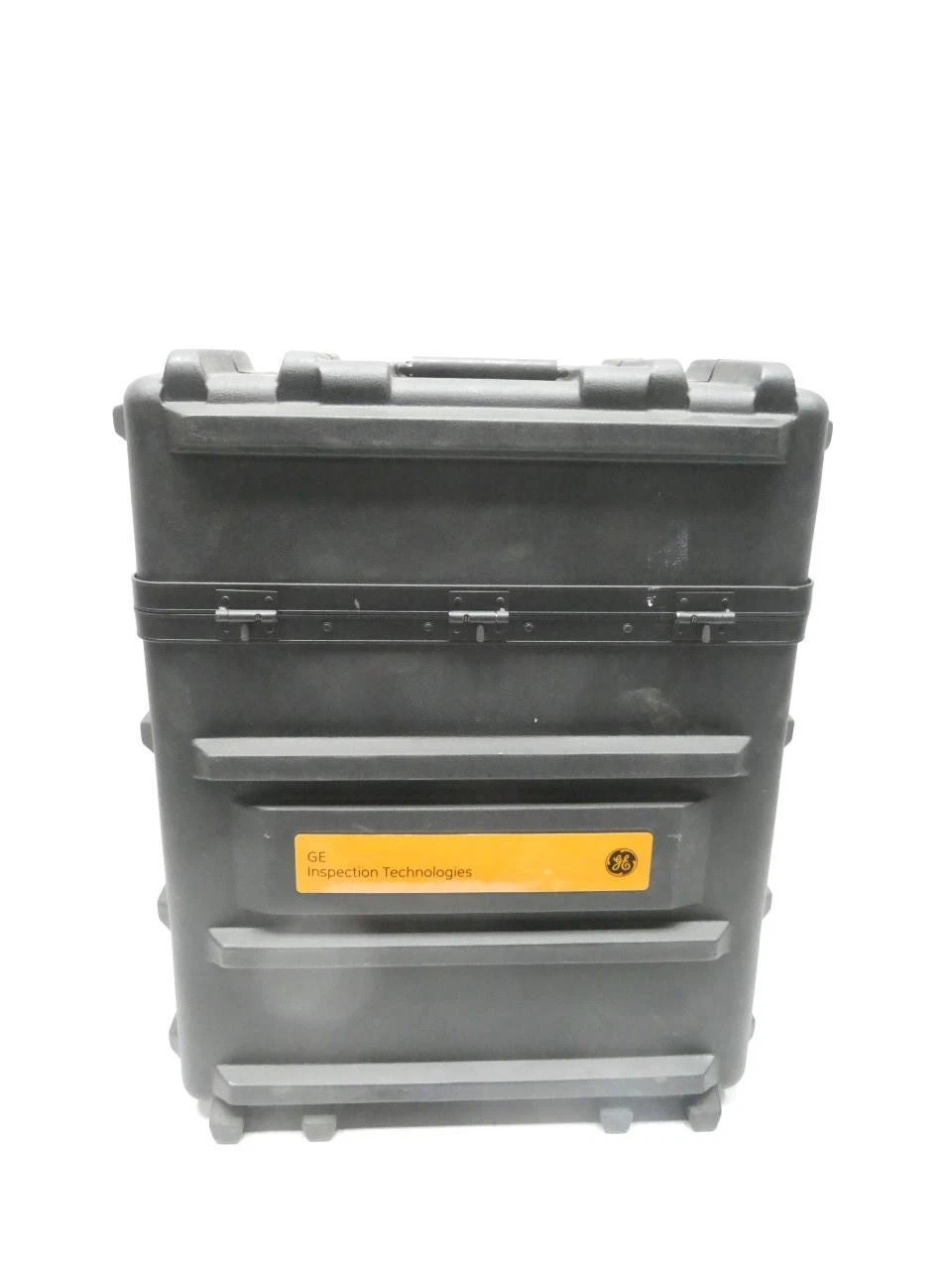

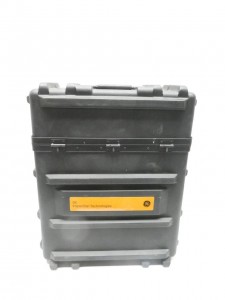

• Transportation and Support Case: An industrial wheeled case with built-in shockproof brackets, a toolbox, and optional pole-mounted brackets (suitable for vertical or horizontal installation).

5. Application Fields

• Electric Power Facilities: Inspection of substations, transmission lines, and the interior of generator sets.
• Petrochemical Industry: Visual inspection of the interior of pipelines, storage tanks, and reactors.
• Nuclear Energy and Aerospace: Inspection of nuclear facilities in confined spaces and the interior of aircraft engines.
• Ships and Offshore Platforms: Regular inspection of ship hulls and offshore platform structures.
• Manufacturing Industry: Quality monitoring of production line equipment and robot work areas.
• Other High-risk or Inaccessible Locations: Mines, underground facilities, tunnels, etc.

6. Installation and Maintenance Points

On-site Preparation

1. Confirm that the opening size at the installation location is ≥ 140 mm and ensure the base is flat and stable.
2. Check that the power supply meets the requirements of AC 100-240 V and 3 A.

Mechanical Installation

1. Install the camera head on the bracket or hole using four 1/4-20 threaded fixing points.
2. If a stainless steel body is used, corresponding anti-corrosion bolts must be employed.

Cable Routing

1. Select signal cables suitable for a maximum distance of 500 m (approximately 1640 ft), and use waterproof cables (maximum 45 m) for underwater operations.
2. Ensure the connection between the cable reel and the control box is secure to avoid stretching or twisting.

System Debugging

1. Start the CCU and check the video input/output, USB 2.0 streaming, and memory card recognition.
2. Calibrate the lighting, zoom, and temperature alarm thresholds via the handheld controller.

Daily Maintenance

1. Regularly clean the light lenses and camera housing to prevent dust and oil from affecting image quality.
2. Check the bulb life (approximately 2000 hours for 35 W lamps) and replace them when necessary.
3. Back up the CompactFlash card to prevent data loss.
4. Perform a system firmware upgrade every six months to obtain the latest iView functions and security patches.

Troubleshooting

1. If image noise or distortion occurs, first check the light power supply and lens cleanliness.
2. When a temperature alarm is triggered, stop operations immediately and check the heat dissipation channel or change the environment.
3. For communication interruptions, check the cable connections, joint waterproof sealing, and the power status of the CCU.

————————————————————————————————————-
