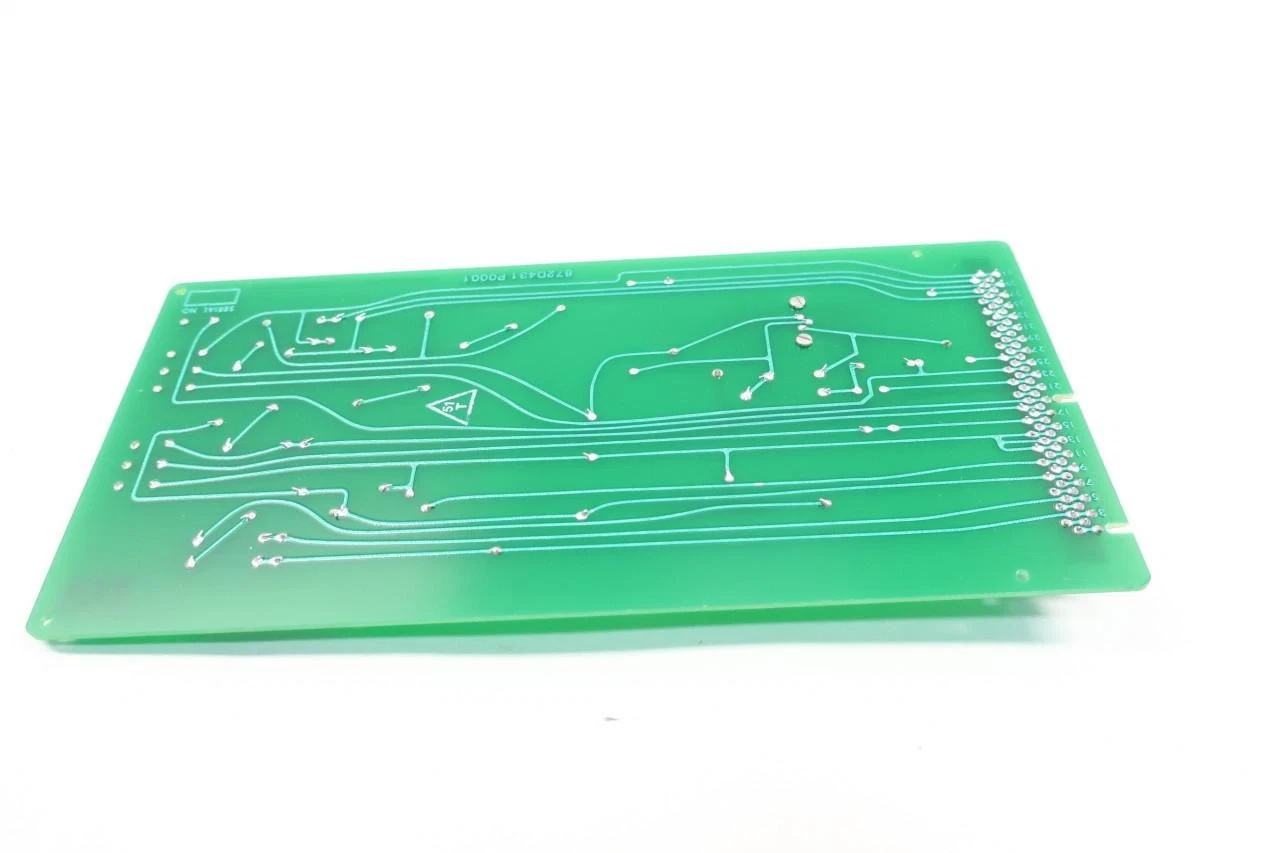

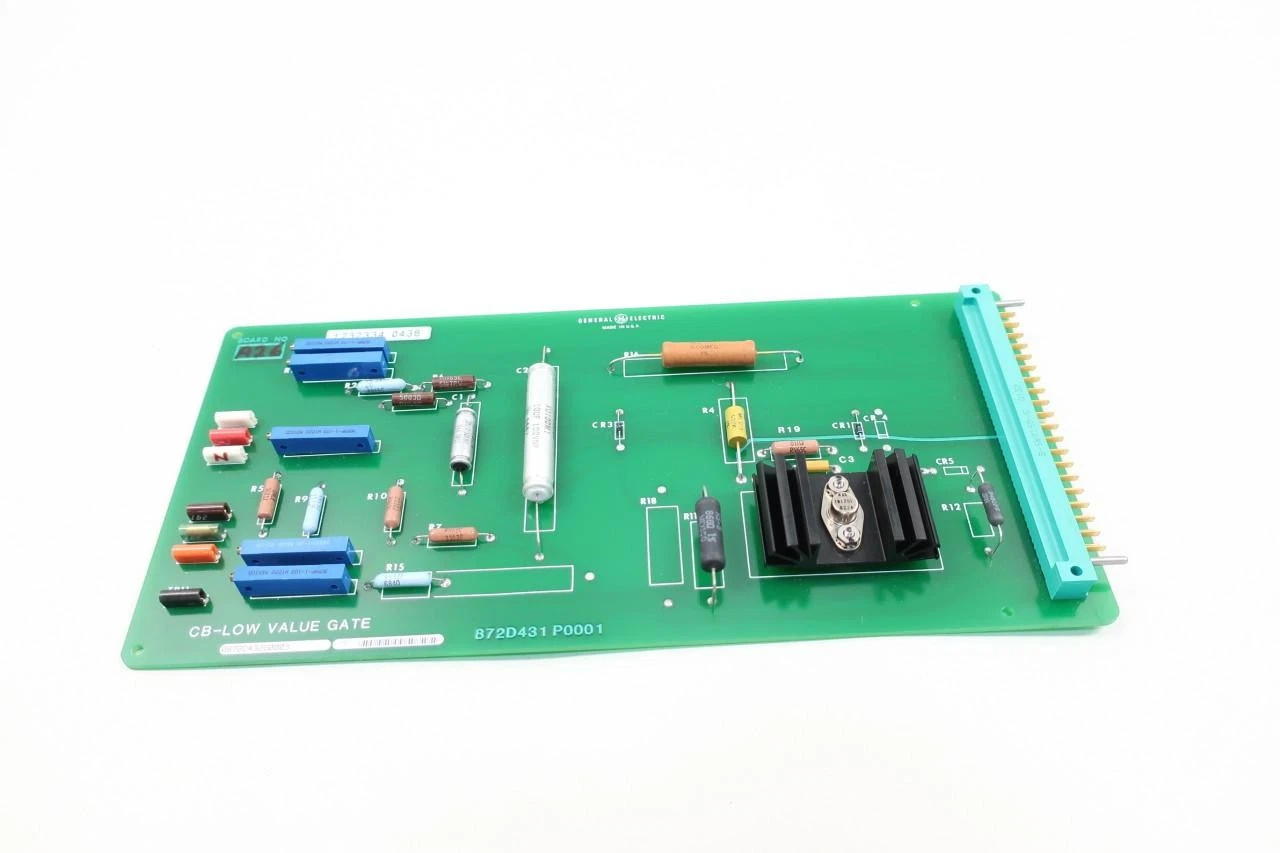

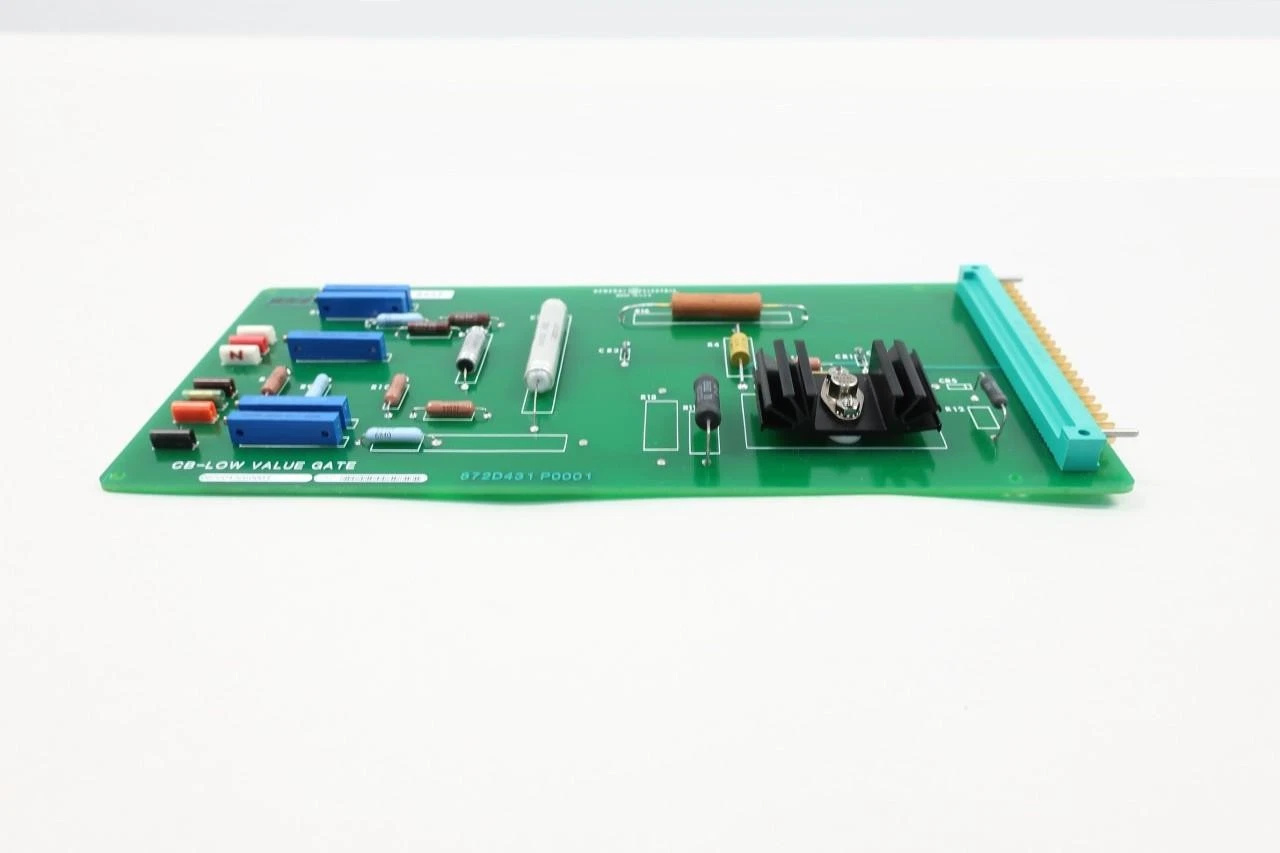

GE 0872D432G0003

1. Overview

• Product Positioning: GE 0872D432G0003 is a Low-Value Gate PCB. Its main functions are signal distribution, isolation, and logic control.
• Applicable Industries: It is suitable for scenarios requiring reliable signal routing, such as industrial automation, medical equipment, aerospace, and energy systems.
• Supply Status: It is a regular stock item, commonly available on electronic component wholesale platforms. The unit price ranges from approximately 1,000 to several thousand RMB.

2. Key Parameters (Typical Specifications)

3. Product Features

• High Reliability: Adopts industrial-grade FR-4 substrate and thick copper layer, enabling high-temperature resistance and moisture resistance.
• Low Power Consumption: The internal circuit design uses low-power components, making it suitable for control systems that operate for long periods.
• Modular Design: Features a standardized pin layout, facilitating quick plugging/unplugging and on-site replacement.
• Signal Isolation: Provides excellent electrical isolation to prevent interference propagation and enhance the overall anti-interference capability of the system.
• Strong Compatibility: Complies with the interface specifications of other Low-Value Gate PCBs in the GE RCA series, allowing mixed use in the same system.

4. Structure and Composition

• Substrate: FR-4 glass fiber epoxy resin substrate.
• Copper Layer: Double-sided copper cladding, forming signal traces and power distribution paths.
• Components: Include Low-Value Gate chips, input/output terminals, protection diodes, filter capacitors, etc.
• Connectors: Usually equipped with screw-type or snap-type terminal blocks for easy on-site wiring.
• Protective Layers: The surface is covered with a solder mask and a silkscreen layer to prevent short circuits and mark the functions of terminals.

5. Application Fields

• Industrial Automation: Signal distribution and isolation for PLC and DCS systems.
• Medical Equipment: Low-voltage control circuits for instruments such as CT, MRI, and ultrasound machines.
• Aerospace: Redundant signal channels for flight control systems.
• Energy Systems: Monitoring and protection circuits for generator sets and substations.
• Others: Any electronic systems that require reliable low-power signal switching.

6. Installation and Maintenance Guidelines

Pre-Installation Inspection

1. Check that there are no scratches, oxidation, or solder joint defects on the PCB surface.
2. Verify the correspondence between terminal blocks and wiring ports to avoid incorrect signal connections.

Installation Steps

1. Fix the PCB on the chassis or guide rail, and use anti-vibration gaskets to reduce mechanical vibration.
2. Connect the power supply and signal wires to the corresponding terminals according to the wiring diagram, and use screws or snaps to ensure a secure connection.
3. After completion, conduct an insulation resistance test before power-on to ensure there is no short circuit.

Debugging and Verification

1. After power-on, use an oscilloscope or multimeter to check the voltage levels and waveforms of input/output signals.
2. Verify that the switching function of the Low-Value Gate meets expectations (such as delay time and threshold voltage).

Daily Maintenance

1. Regularly check if terminal connections are loose, and re-tighten them if necessary.
2. Remove dust and corrosive substances, and keep the PCB surface dry.
3. If component aging or solder joint cracking is found, replace the entire PCB in a timely manner to avoid affecting system reliability.

Replacement and Upgrade

1. Use PCBs of the same model or compatible Low-Value Gate PCBs for replacement, ensuring consistent interfaces and electrical characteristics.
2. If system requirements are upgraded, consider using higher-specification Low-Value Gates (such as GE 0872D432G2 Rev 8) for upgrading.

————————————————————————————————————-
