GE 142D7274G3

Product Overview

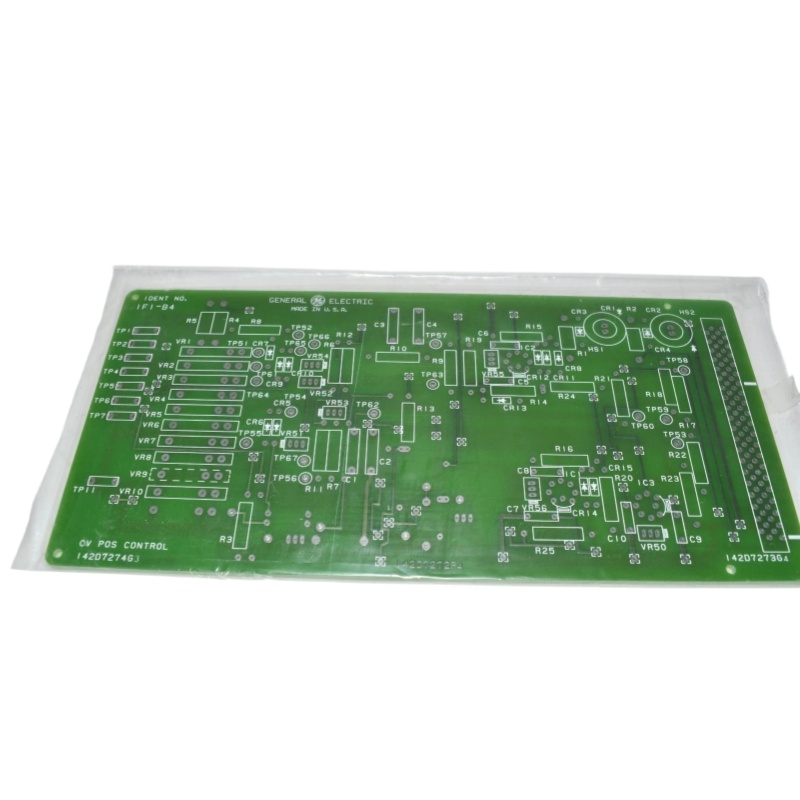

The GE 142D7274G3 is a CV Position Control PCB designed for use in industrial control and automation equipment. Available product references identify the board as a CV Position Control PCB, with D486275 also associated with this assembly.

As a board-level control component, it can form part of a larger control architecture where accurate valve or position-related signal processing is required. Its compact PCB construction makes it suitable as a replacement component for compatible GE industrial systems.

Key Parameters

The exact electrical specifications should be checked against the original equipment documentation before installation.

Main Features

• Designed for CV position control applications.
• PCB-based construction for integration into industrial control equipment.
• Suitable for replacement and maintenance requirements.
• Supports reliable signal and control functions within a compatible system.
• Provides a practical solution for restoring equipment operation without replacing an entire control assembly.

Structure and Function

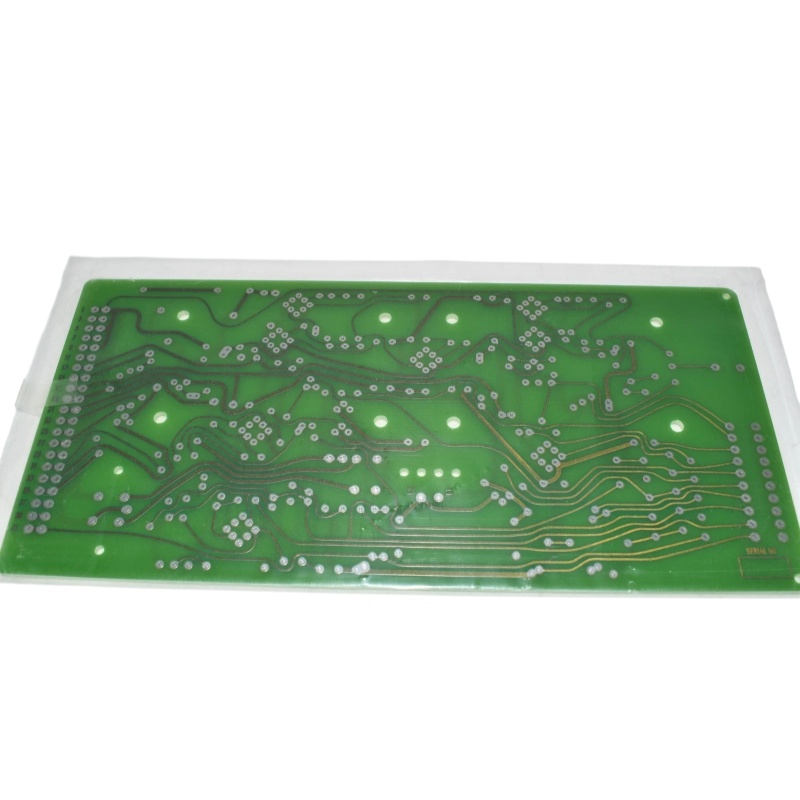

The board is built around a printed circuit board assembly containing electronic control components and associated circuitry. These elements work together to perform position-control functions within the host system.

Because it is a board-level component, the GE 142D7274G3 should be installed in the correct equipment position and used with the appropriate supporting hardware. Correct connector orientation and system compatibility are particularly important.

Applications

The GE 142D7274G3 can be considered for industrial automation environments where compatible GE control equipment requires a CV position control board. Typical applications may include process-control equipment, industrial machinery, valve-related control systems, and maintenance or refurbishment projects.

Installation & Maintenance

Before installation, switch off the relevant equipment and follow the manufacturer’s safety procedures. Verify the part number, board revision, connectors, and system compatibility.

During maintenance, keep the PCB protected from dust, moisture, static electricity, and mechanical impact. In addition, inspect connectors and surrounding wiring before commissioning the replacement board. If abnormal operation occurs, check the complete control circuit rather than assuming the PCB is the only possible cause.
