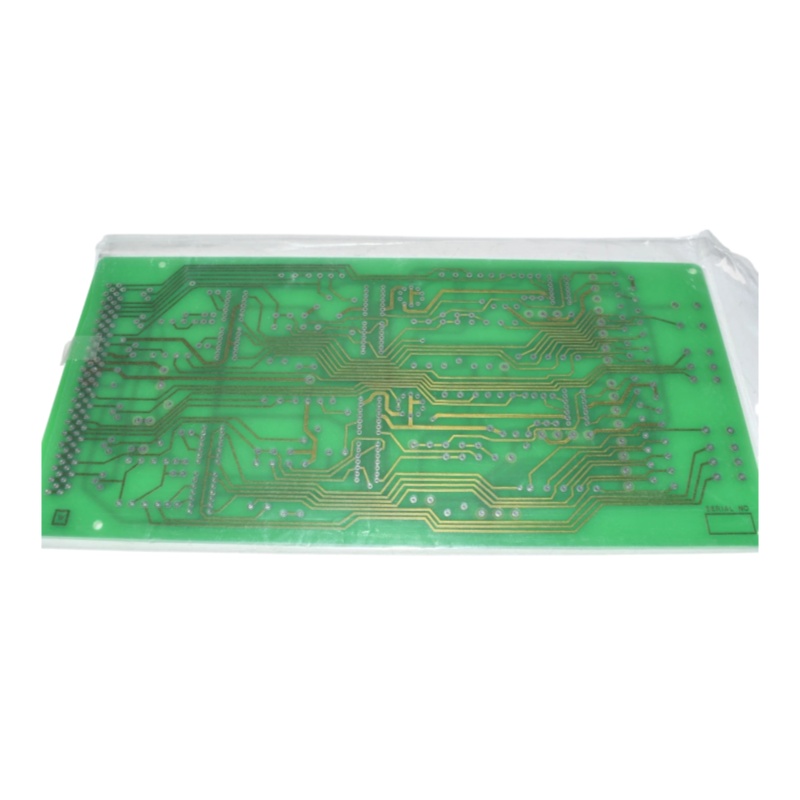

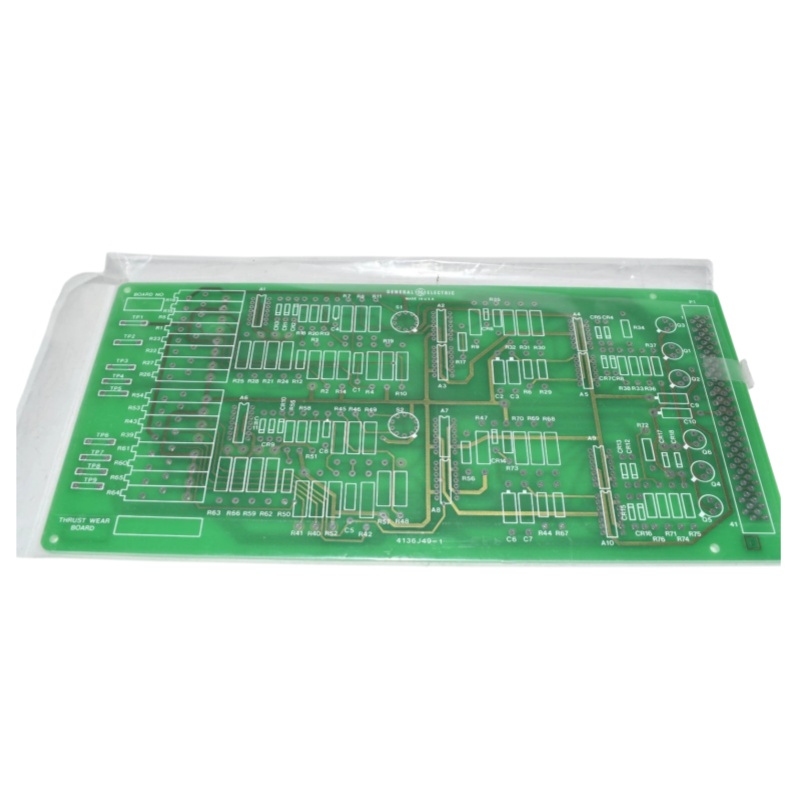

GE 4136J49-1

Product Overview

The GE 4136J49-1 is a Thrust Wear PCB Board designed for use in compatible GE industrial control equipment. Public component listings identify 4136J49-1 as the corresponding part number for 4136J63-G1, with the board described specifically as a thrust wear board.

As a dedicated industrial PCB, this component is intended to work within a larger control and monitoring architecture. It can be useful when maintaining existing GE equipment that requires an original or compatible replacement board.

Identification & Specifications

The main identification details are:

• Manufacturer: General Electric (GE)
• Part Number: 4136J49-1
• Related Number: 4136J63-G1
• Board Type: Thrust Wear PCB Board
• Product Category: Industrial Control PCB
• Primary Function: Thrust wear monitoring
• Installation: Integrated control-system board
• Application: Industrial equipment monitoring and control

Publicly available parts listings consistently associate 4136J49-1 with the thrust wear board description and the 4136J63-G1 reference.

Detailed electrical ratings, dimensions, connector specifications, and environmental limits were not confirmed in the available sources. These parameters should therefore be checked against the original equipment documentation before installation.

Functional Features

The GE 4136J49-1 provides a dedicated board-level solution for thrust wear-related monitoring. Its characteristics include:

• Designed for thrust wear monitoring applications.
• GE industrial control PCB construction.
• Suitable for integration into compatible existing systems.
• Supports maintenance of legacy control equipment.
• Useful as a replacement or spare board.
• Associated with the 4136J63-G1 reference for identification.

The board belongs to a broader group of GE 4136J-series control boards. Other boards in the same series are listed for functions such as pressure control, watchdog overspeed, interface control, and setpoint selection.

Board Structure

The 4136J49-1 is a board-level electronic assembly rather than a standalone controller. Its PCB structure incorporates electronic circuitry, conductive paths, connection interfaces, and supporting components required for its designated monitoring function.

When sourcing a replacement, technicians should compare the complete part number and board markings. In particular, the 4136J49-1 / 4136J63-G1 relationship should be checked against the installed board to avoid selecting a visually similar but functionally different GE 4136J-series PCB.

Typical Applications

The board can be considered for industrial systems where thrust-related mechanical conditions need to be monitored through compatible GE control hardware. Potential maintenance applications include:

• Industrial control systems
• Turbine and rotating equipment
• Machinery monitoring
• Power-generation equipment
• Control cabinet refurbishment
• Legacy GE equipment maintenance
• Industrial PCB replacement programs

The exact application depends on the host equipment and its original control configuration.

Installation and Maintenance

Before installation, isolate the associated equipment and follow the applicable electrical safety procedures. Record connector positions and wiring information before removing the existing PCB.

Next, inspect the replacement board for corrosion, contamination, damaged connectors, or other visible defects. Install it carefully and avoid excessive force on the PCB. Afterward, verify all connections before restoring power and carrying out system checks.

For storage, keep the board in a clean, dry, anti-static environment. Avoid moisture, dust, vibration, and electrostatic discharge. When ordering a replacement, confirm GE 4136J49-1 and the associated 4136J63-G1 reference with the existing equipment documentation.
