GE 324B8001G1

Product Introduction

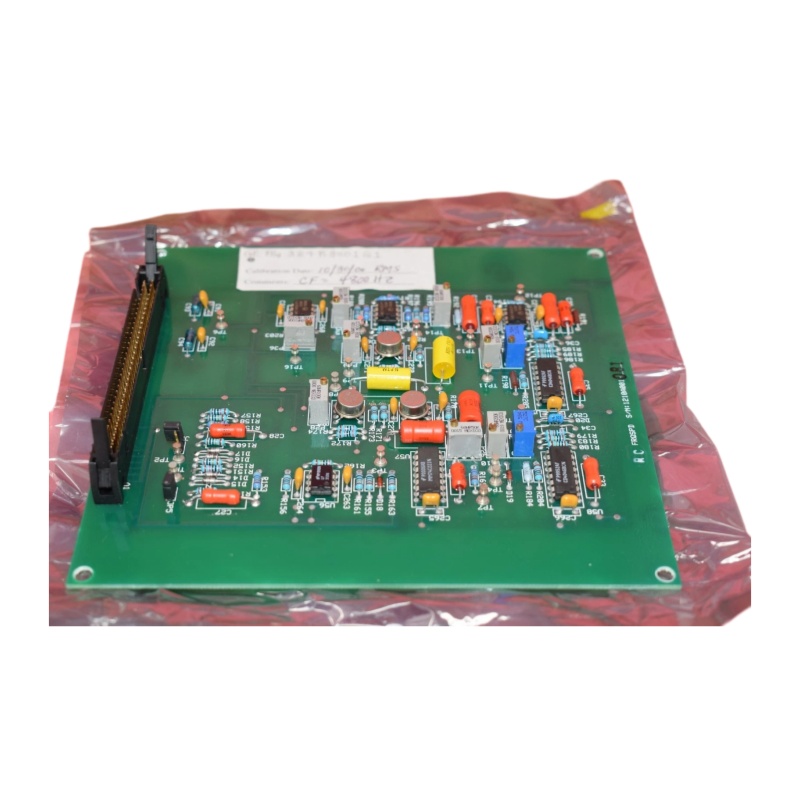

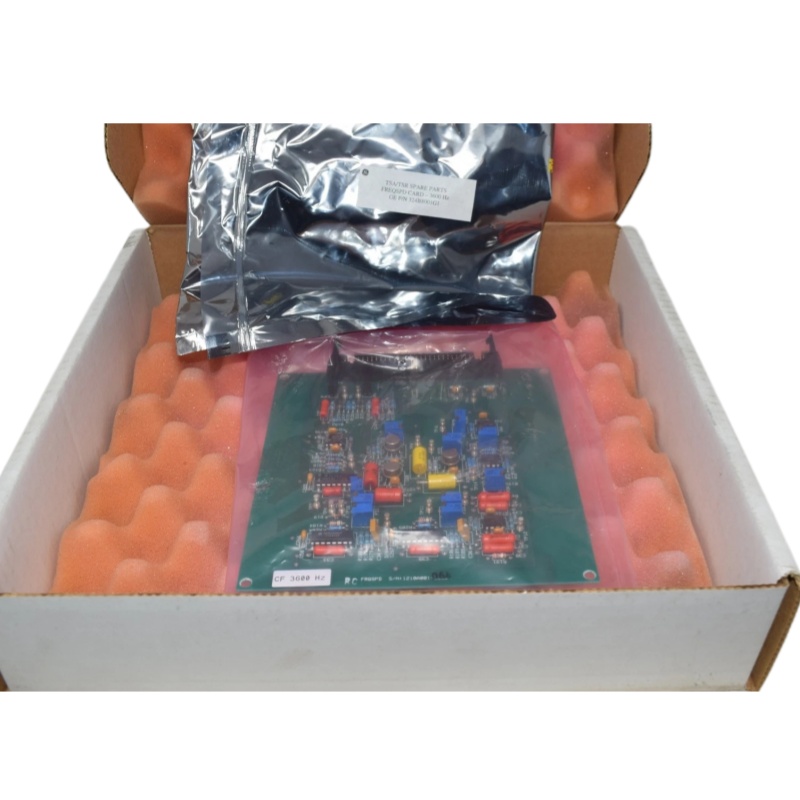

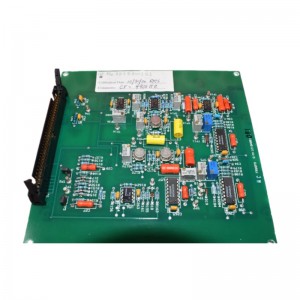

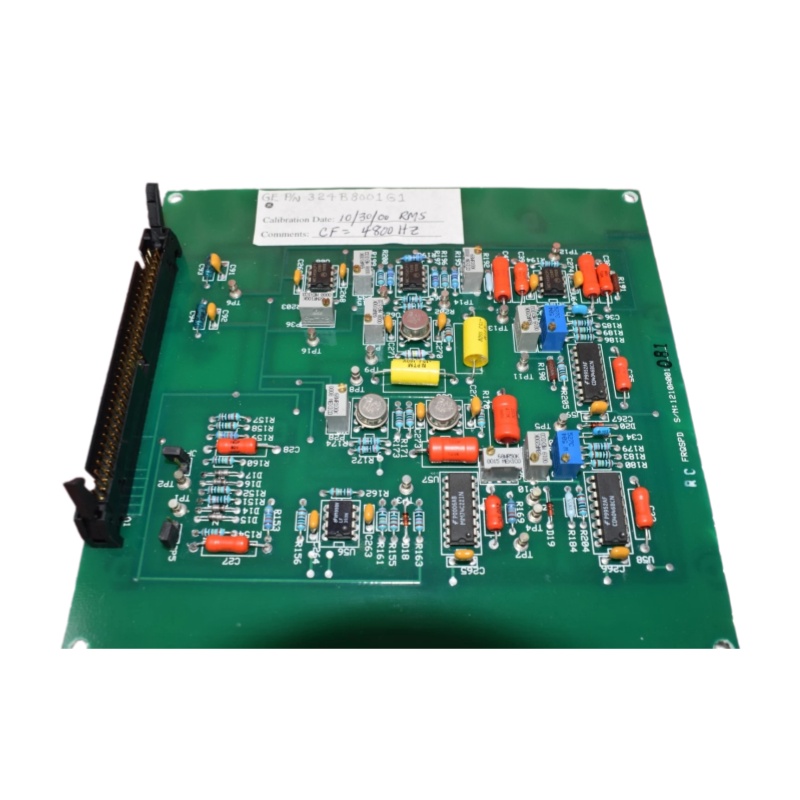

The GE 324B8001G1 FREQSPD is a specialized Mark V turbine control PCB used for speed and frequency-related control functions. Industrial listings identify the part specifically as a Mark V FREQSPD Card, with both 3600 Hz and 4800 Hz versions appearing in current component references.

This makes the board particularly relevant to maintenance teams supporting established GE turbine installations. When a dedicated board develops a fault, replacing the individual PCB can be a more practical solution than modifying the complete control system.

Functional Role

The FREQSPD board is associated with the processing of frequency and speed signals within the Mark V architecture.

Accurate speed information is essential for turbine operation. Consequently, the associated circuitry plays an important role in providing the control system with appropriate speed-related information.

The exact signal characteristics depend on the specific turbine and Mark V configuration. Therefore, the original system documentation should be used when determining compatibility.

Product Specifications

Brand: GE
Model: 324B8001G1
Designation: FREQSPD
Platform: Mark V Speedtronic
Board Category: Turbine control PCB
Primary Function: Speed and frequency signal processing
Configurations: 3600 Hz / 4800 Hz
Application: Industrial turbine and power-generation systems

Current product references specifically associate the 324B8001G1 with both 3600 Hz and 4800 Hz FREQSPD configurations.

Because detailed manufacturer documentation is not widely available online for every board revision, specifications such as operating voltage, input characteristics, connector pinout, dimensions, and environmental ratings should be verified before deployment.

Design and Construction

The 324B8001G1 uses a board-level design intended for integration into a Mark V control cabinet. Its PCB assembly incorporates the electronic circuitry and interfaces needed for its designated frequency and speed functions.

This modular approach is valuable for long-term maintenance. A failed board can potentially be replaced while retaining the existing turbine control architecture.

Where It Is Used

The card is well suited to environments where GE Mark V control systems remain in service, such as:

• Utility power plants
• Industrial power-generation facilities
• Gas turbine installations
• Steam turbine installations
• Turbine control cabinets
• Legacy automation systems

For critical equipment, maintaining a tested spare FREQSPD board can also help reduce repair time following an unexpected failure.

Replacement Guidance

When sourcing a replacement, first confirm 324B8001G1 and identify whether the application requires the 3600 Hz or 4800 Hz configuration. Do not rely solely on the board’s physical appearance.

Next, inspect the existing connectors, wiring, and related speed-sensing circuitry. If an external fault caused the original board failure, that issue should be addressed before installing the replacement.

Finally, conduct controlled testing after installation. Verify the speed and frequency signals and confirm that the Mark V system responds correctly before placing the turbine back into normal service.
